CMI250 ex demo

Ciare

Discontinued

Your price:
€ 84,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
450 Watt
RMS Power
220 Watt
Frequency Response
80 - 3500 Hertz
Sensitivity
97 dB
Impedance
4 Ohm
Installation Depth
98 mm
Woofer Material
Cellulosa trattata

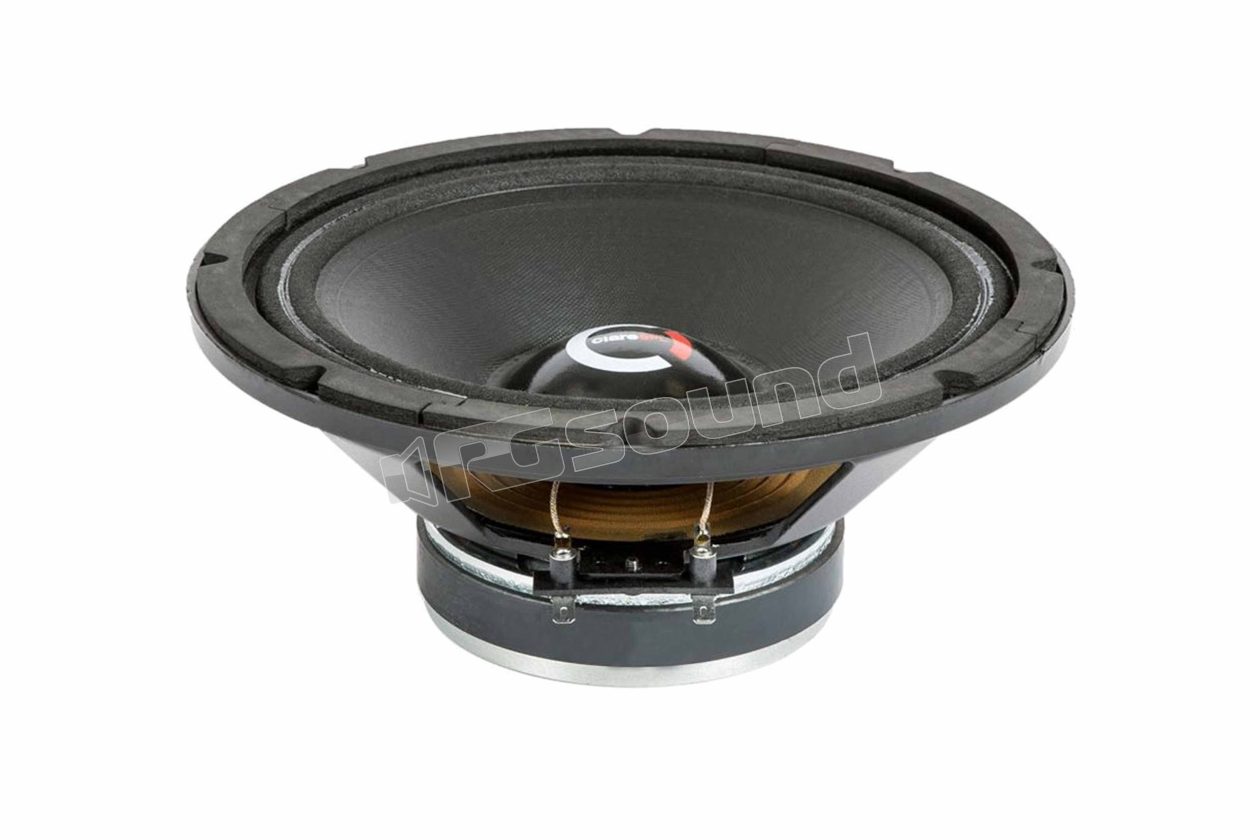

Ciare CMI250 250mm woofer at 4 Ohm with a rated power of 220W and sensitivity 97 dB

New product and perfectly functional. It shows minor signs of installation in the mounting holes and on the back of the magnet.

Main features

  • Aluminum basket
  • Ferrite magnet
  • Cone worked with treated paper Nomex suspension material
  • Nomex spider
  • Fiberglass former
  • Copper winding
  • Maximum power (W) 450
  • Rated power AES (W) 220
  • Nominal diameter ('' / mm) 10/250
  • Nominal impedance (Ω) 4
  • Voice coil diameter (mm) 50
  • Sensitivity 1W / 1m (dB) 97

Ciare CMI250 technical specifications

  • Overall diameter 268 mm
  • Depth 98 mm
  • Flange thickness 13 mm
  • Front baffle cutout mounted diameter 235 mm
  • Number of mounting holes 8
  • Mounting hole diameter (mm) 5 mm
  • Bolt circle diameter 253 mm
  • Re 2.9 ohm
  • Fs 55 Hz
  • Qms 12
  • Qes 0.52
  • Qts 0.5
  • Mms 42 g
  • D 213 mm
  • Vas 34 l
  • BxL 9 Tm
  • Linear Mathematical Xmax 4.5 mm
  • Le (1kHz) 0.34 mH
