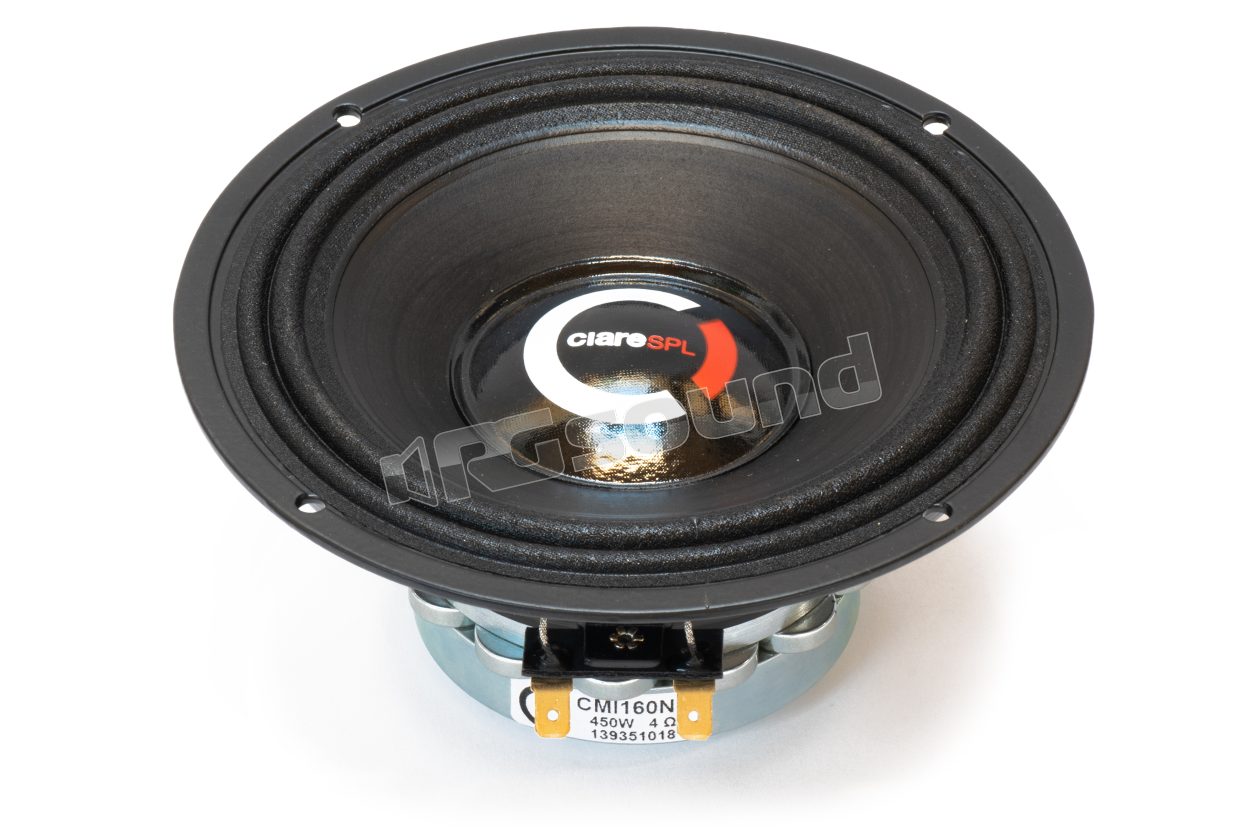

CMI160ND 165mm SPL woofer with neodymium magnet

Ciare
Your price:
€ 114,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
450 Watt
RMS Power
220 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Installation Depth
72 mm
Woofer Material
Cellulosa trattata

Ciare CMI160ND 165mm woofer from the SPL series, Neodymium magnet, max power 450 W and sensitivity 94 dB

CMI160ND main features

Maximum power 450 W

AES nominal power 220 W

Nominal diameter 6.5" / 165 mm

Nominal impedance 4 Ohm

Voice coil diameter: 50 m

Sensitivity 1W / 1m 94 dB

Aluminum basket

Neodymium magnet

Cone made with treated paper

Nomex surround

Nomex spider

Copper coil

Exponential cone shape

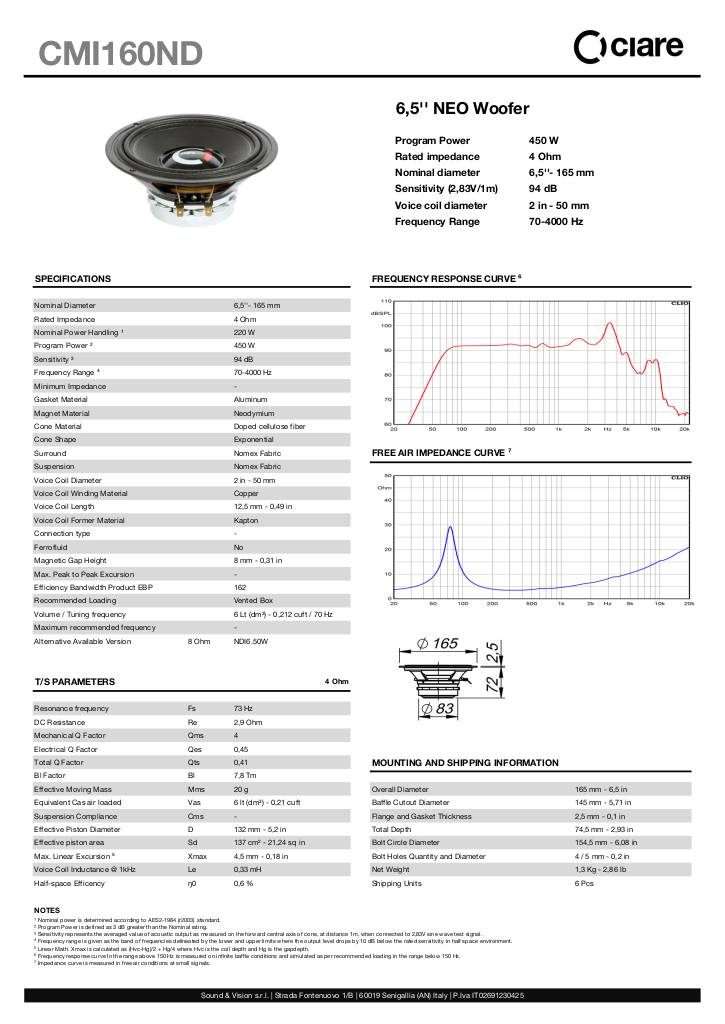

Scheda tecnica

n-20200420101819-ciare-cmi160nd.pdf

Ciare CMI160ND technical specifications

Overall diameter 165 mm

Total depth 72 mm

Flange thickness 2.5 mm

Front baffle cutout mounted diameter 145 mm

Number of mounting holes 4

Mounting hole diameter (mm) 5 mm

Bolt circle diameter 154.5 mm

Re 2.9 ohm

Fs 73 Hz

Qms 4

Qes 0.45

Qts 0.41

Mms 20 g

D 132 mm

Vas 6 l

BxL 7.8 Tm

Linear Mathematical Xmax 4.5 mm

Le (1kHz) 0.3 mH
