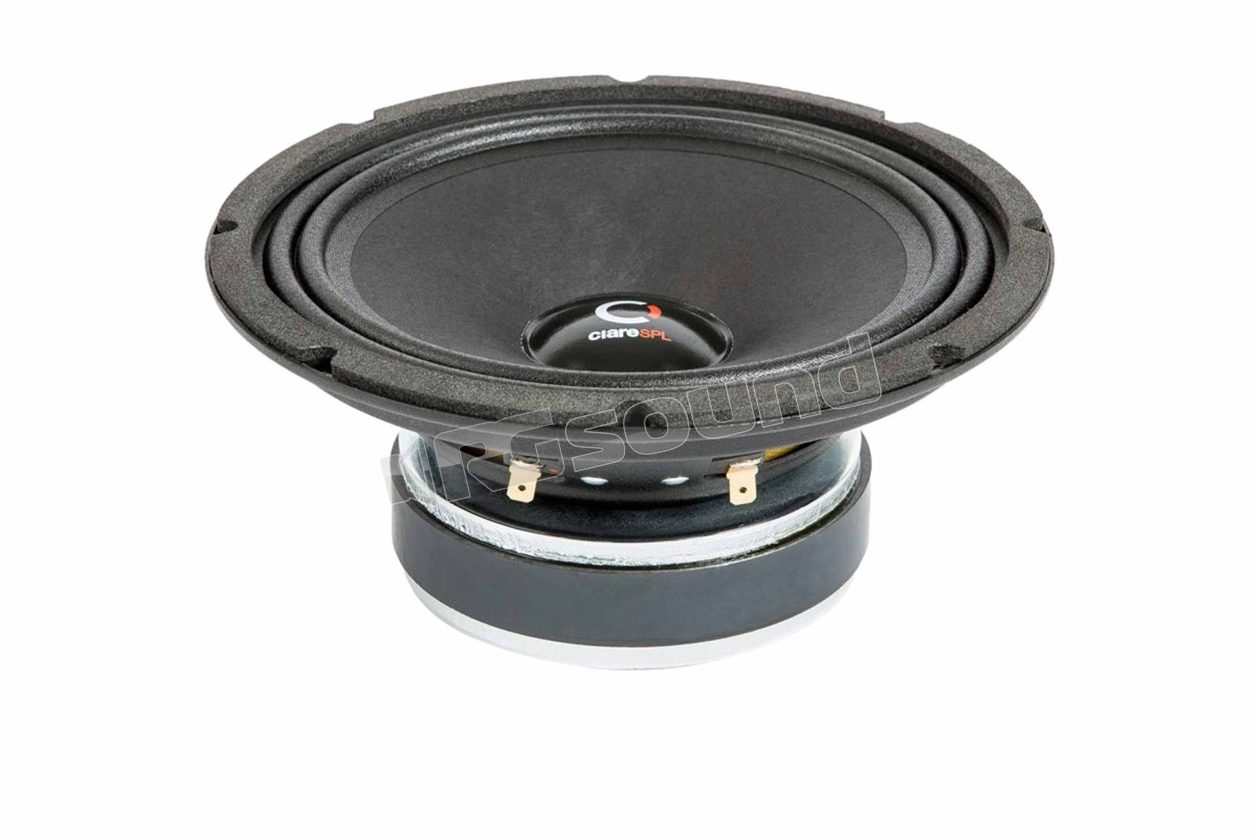

CME200

Ciare
Your price:
€ 59,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
99.5 dB
Impedance
4 Ohm
Installation Depth
84 mm
Woofer Material
Cellulosa trattata

Ciare CME200 20cm woofer suitable for SPL competitions

Main features of the Ciare CME200:

Maximum power (W) 260

Nominal AES power (W)130

Nominal diameter (''/mm) 8 / 200

Nominal impedance (Ohm) 4

Voice coil (mm) 38

Sensitivity 1W/1m (dB) 99.5

Basket type Steel

Magnet type Ferrite

Membrane type Treated paper

Suspension type Canvas

Dust cap type Cotton

Former type Kapton

Winding type Aluminum

Connection type

Membrane profile Exponential

Air gap height 8

Ciare CME200 technical specifications

Outer diameter 206 mm

Depth under flange 84 mm

Flange thickness 8 mm

Panel hole 185 mm

Number of fixing holes 8

Fixing diameter (mm) 5.5 mm

Diameter fixing holes position 194 mm

Re 3 ohm

Fs 76 Hz

Qms 7

Qes 0.39

Qts 0.37

Mms 14.2 g

D 162 mm

Vas 18 l

BxL 7.3 Tm

Linear Mathematical Xmax 3.5 mm

Le (1kHz) 0.45 mH

€ 59,00 Price incl. VAT
