CM200N extended range SPL

Ciare
Your price:
€ 68,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
250 Watt
RMS Power
120 Watt
Frequency Response
80 - 6.000 Hertz
Sensitivity
96 dB
Impedance
4 Ohm
Weight
3 Kg
Installation Depth
84 mm
Woofer Material
Acciaio

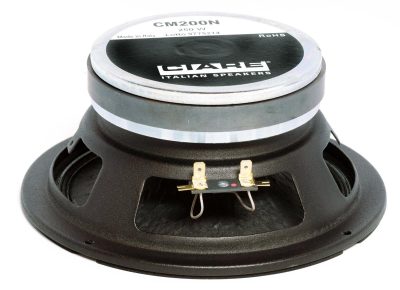

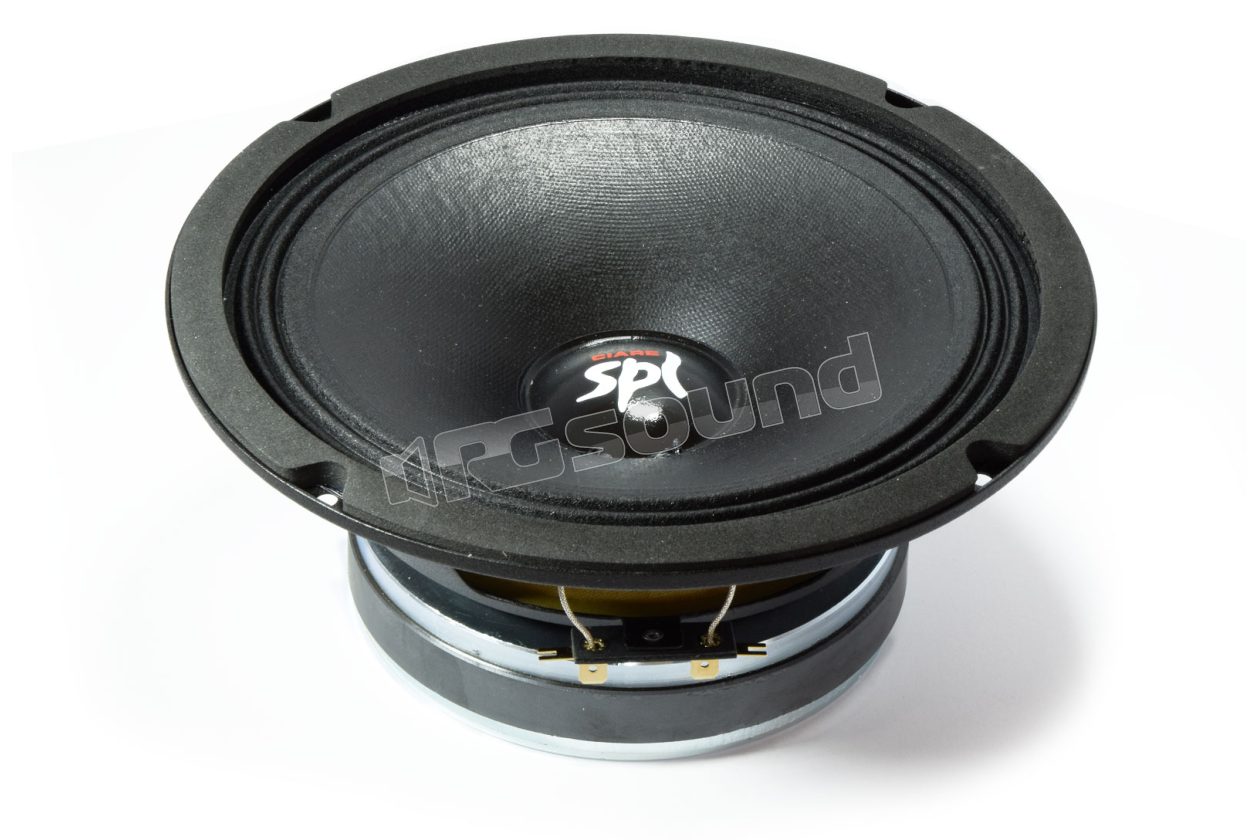

Ciare CM200N extended range woofer, 200mm size, with waterproofed cellulose diaphragm, cloth suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization allow the company to achieve the highest quality standards in the realization of every component.

CM200N Features

  • Max power: 250W
  • Nominal power: 120W
  • Diameter: 8''-200mm
  • Nominal impedance: 4?
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 96 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 6 dm3
  • Recommended tuning frequency: 130 Hz

CM200N Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Diaphragm type: Treated cellulose fiber
  • Suspension type: Treated cloth
  • Dust cap type: Nomex
  • Former type: Aluminum
  • Winding type: Copper
  • Electrical connections type: Faston
  • Diaphragm profile: Exponential
  • Air gap height: 7 mm

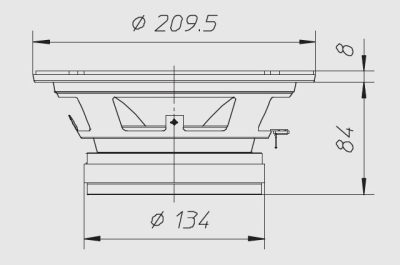

CM200N Dimensions

  • Outer diameter: 209.5 mm
  • Depth below flange: 84 mm
  • Flange thickness: 8 mm
  • Panel hole: 180 mm
  • Number of mounting holes: 4
  • Mounting holes diameter: 5 mm
  • Mounting holes pos. diameter: 198.5
  • Weight with individual packaging: 3.00 Kg

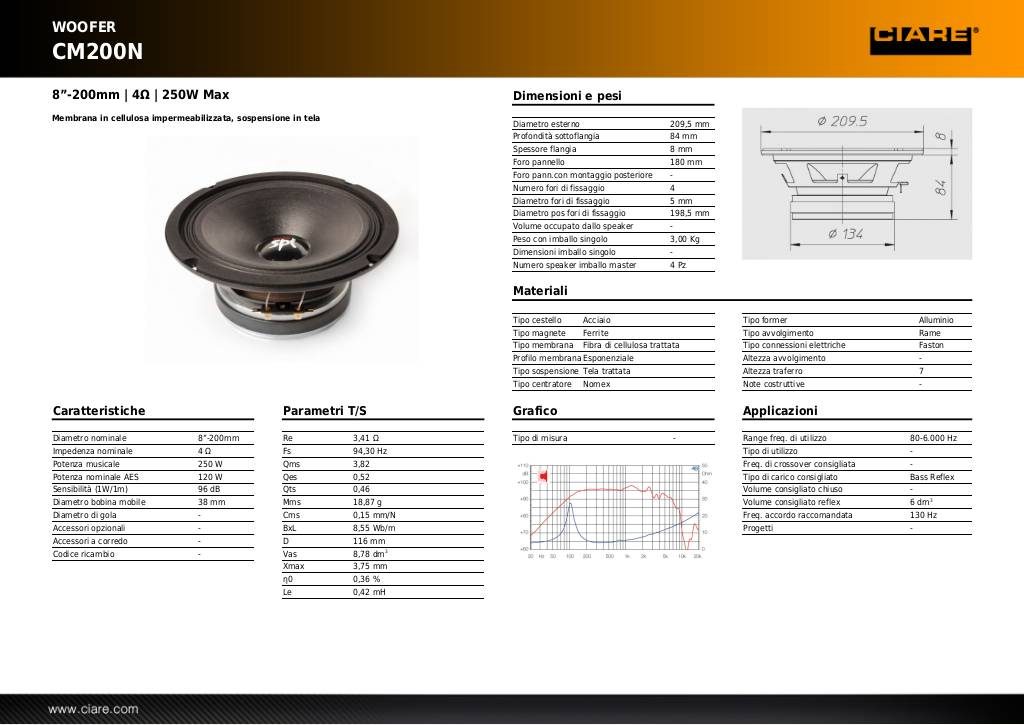

Scheda tecnica

20131029102908-cm200n.pdf

1 Ciare woofer speaker CM200N
€ 68,00 Price incl. VAT
