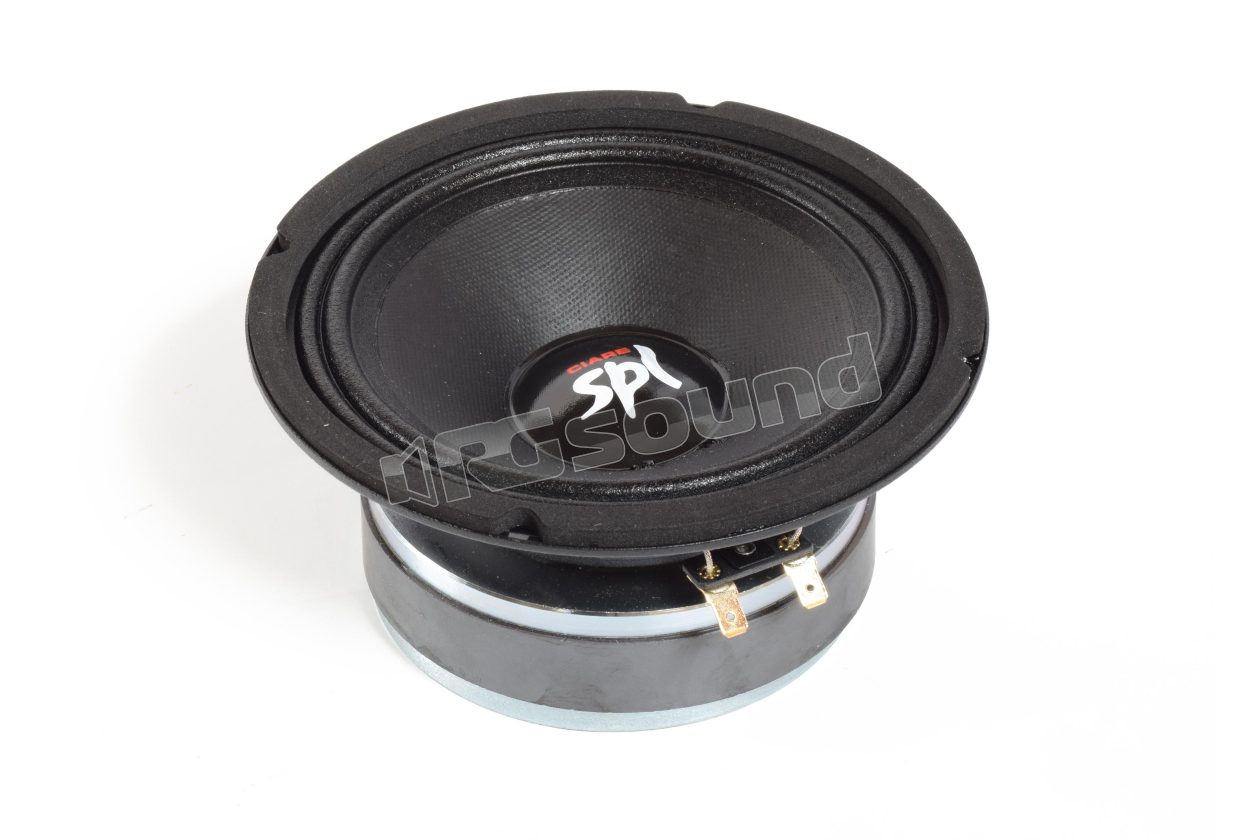

CM161 extended range SPL

Ciare
Your price:
€ 62,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
80 Watt

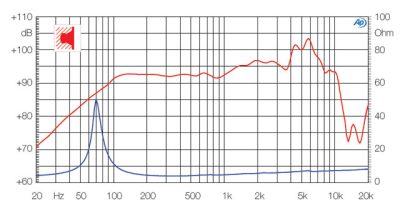

Frequency Response
80 - 8.000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
2,4 Kg
Installation Depth
73 mm
Woofer Material
Acciaio

Ciare CM161 extended range SPL woofer, 165mm size, with waterproofed cellulose cone, cloth suspension. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CM161 Features

  • Max power: 200W
  • Nominal power: 80W
  • Diameter: 6.5''-165mm
  • Nominal impedance: 4?
  • Voice coil diameter: 38mm
  • Sensitivity 1W/1m: 93 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 10 dm3
  • Recommended tuning frequency: 85 Hz

CM161 Materials

  • Basket type: Steel
  • Cone type: Treated cellulose fiber
  • Suspension type: Treated cloth
  • Former type: Kapton
  • Electrical connections type: Faston
  • Cone profile: Exponential
  • Air gap height: 6 mm

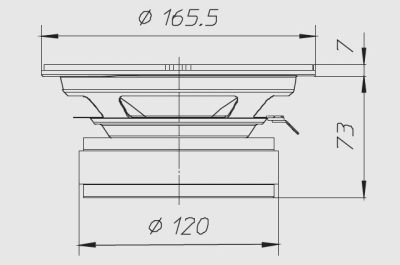

CM161 Dimensions

  • Outer diameter: 165.5 mm
  • Depth below flange: 73 mm
  • Flange thickness: 7 mm
  • Panel hole: 142 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 156
  • Weight with single packaging: 2.40 Kg

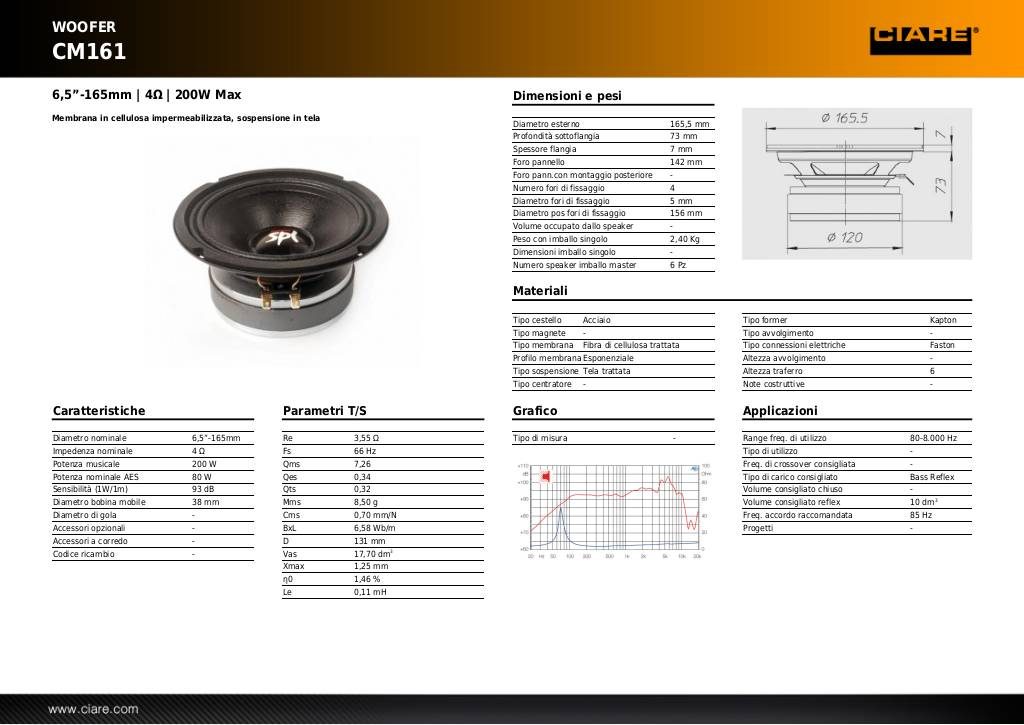

Scheda tecnica

20131029101856-cm161.pdf

1 Ciare woofer speaker CM161
€ 62,00 Price incl. VAT
