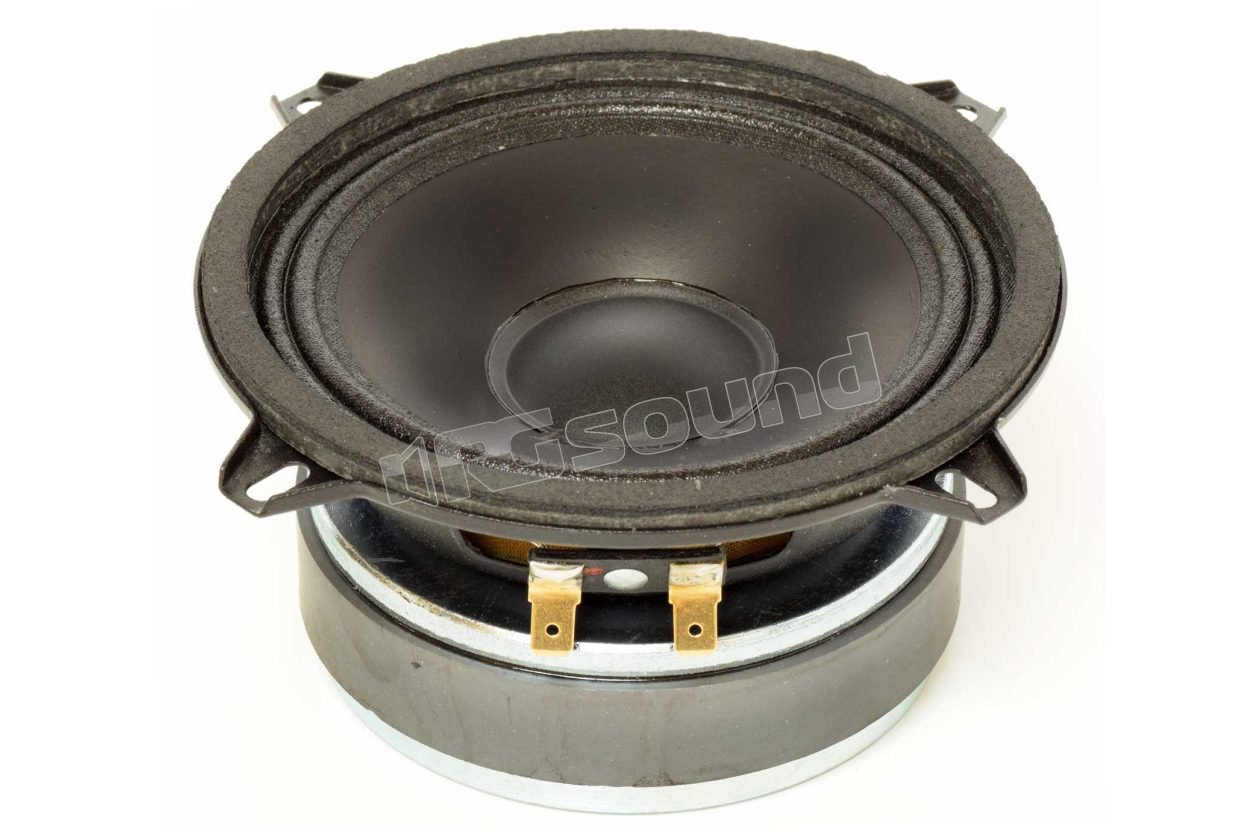

CM133 extended range 130 mm

Ciare
Your price:
€ 44,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
130 mm
MAX Power
200 Watt
RMS Power
80 Watt
Frequency Response
150 - 7.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
1,5 Kg
Installation Depth
61 mm
Midrange Cone Material
Acciaio

Ciare CM133 extended range, 130mm size, with waterproofed cellulose membrane and cloth suspension, max power 180W, 4Ohm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CM133 Features

  • Max power: 200W
  • Nominal power: 80W
  • Diameter: 5"-130mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 32mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 3 dm3

CM133 Materials

  • Basket type: Steel
  • Suspension type: Treated cloth
  • Former type: Aluminum
  • Air gap height: 6 mm

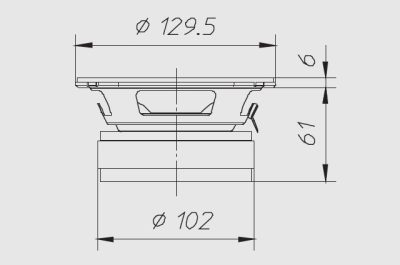

CM133 Dimensions

  • External diameter: 129.5 mm
  • Sub-flange depth: 61 mm
  • Flange thickness: 6 mm
  • Panel hole: 112 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 138.6
  • Weight with individual packaging: 1.55 Kg

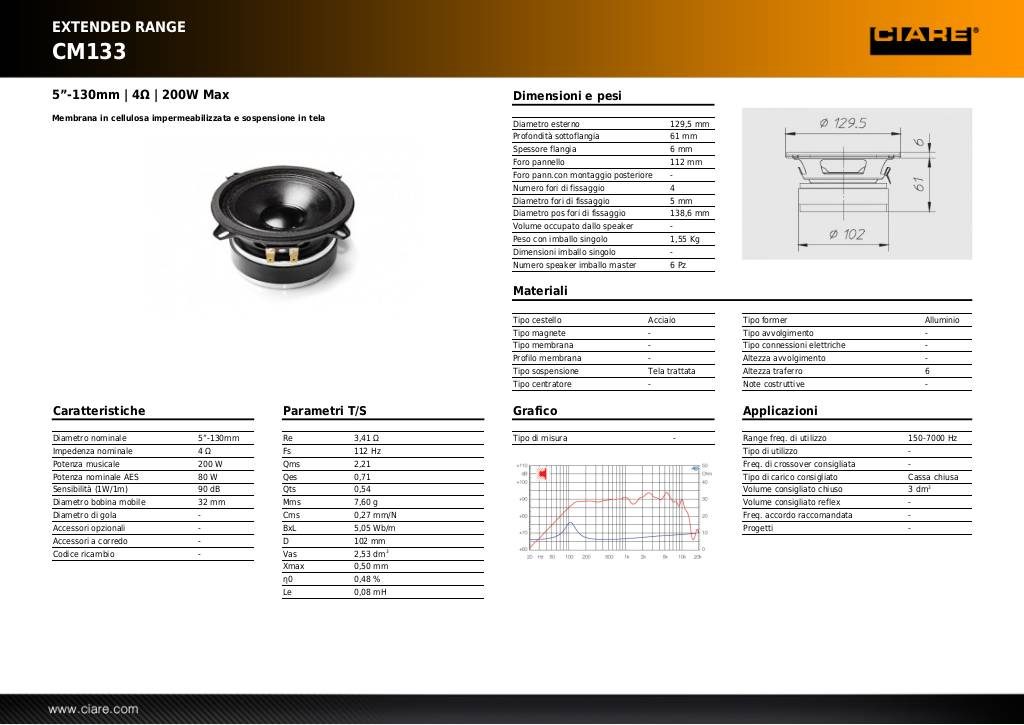

Scheda tecnica

20131028175936-cm133.pdf

1 Ciare CM133 Speaker
€ 44,00 Price incl. VAT
