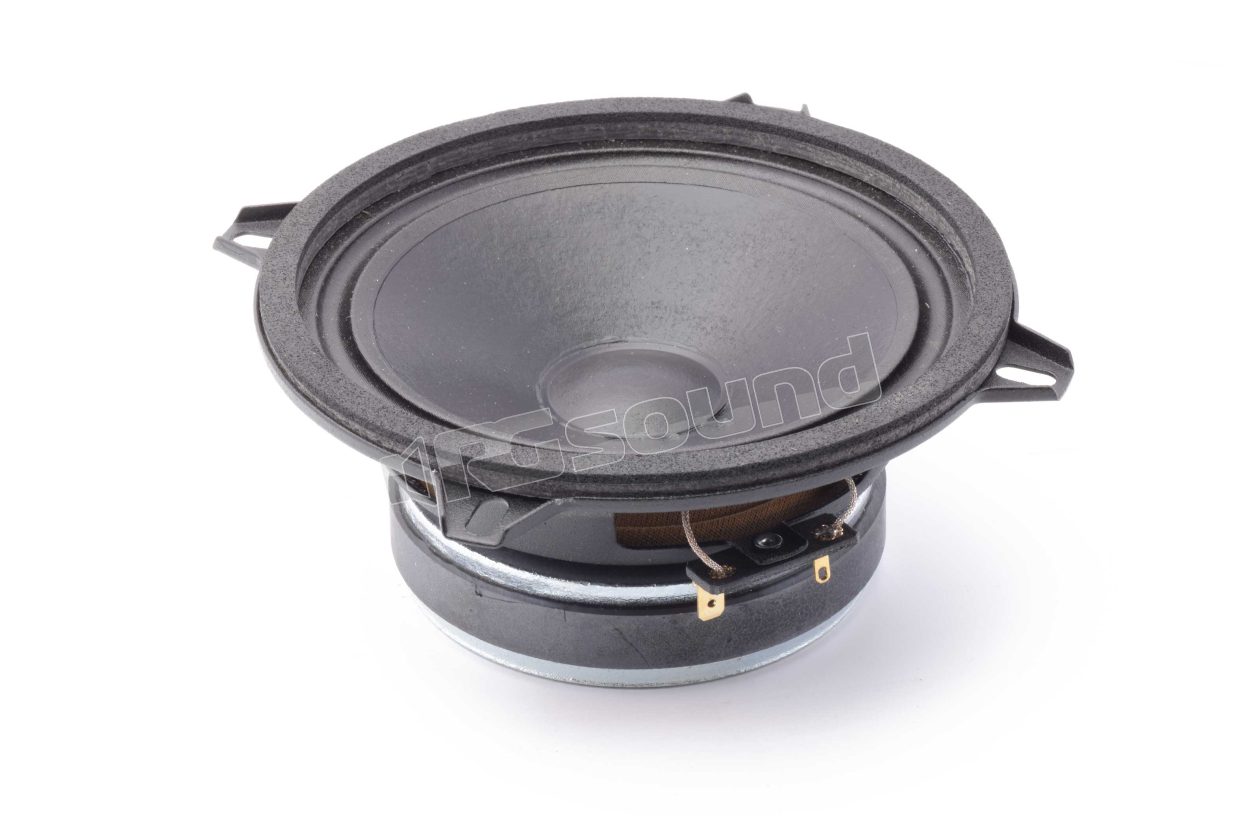

CM132 13cm midrange, 90 W RMS power

Ciare
Your price:
€ 32,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
130 mm
MAX Power
180 Watt
RMS Power
90 Watt

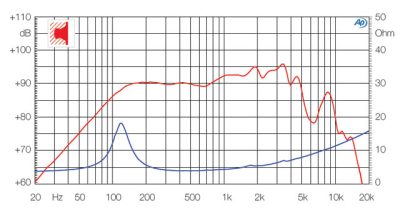

Frequency Response
120 - 5.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Weight
0,88 Kg
Installation Depth
50,5 mm
Midrange Cone Material
Acciaio

Ciare CM132 midrange, 130mm size with damped cellulose membrane and cloth suspension, max power 180W, 4Ohm. Ciare is a company constantly keeping up with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

CM132 Features

  • Max power: 180W
  • Nominal power: 90W
  • Diameter: 5''-130mm
  • Nominal impedance: 4 Ohm
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 90 dB
  • Recommended load type: Sealed enclosure
  • Recommended sealed volume: 2.5 dm3

CM132 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Membrane type: Cellulose fiber
  • Suspension type: Treated cloth
  • Former type: Aluminum
  • Electrical connections type: Faston
  • Air gap height: 6 mm

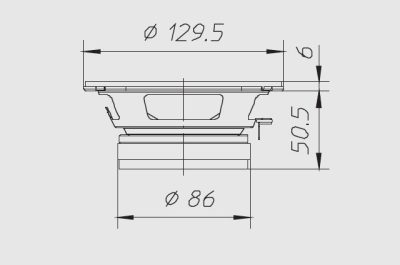

Dimensions

  • Outer diameter: 129.5 mm
  • Depth under flange: 50.5 mm
  • Flange thickness: 6 mm
  • Panel hole: 112 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 138.6
  • Weight with single package: 0.88 Kg

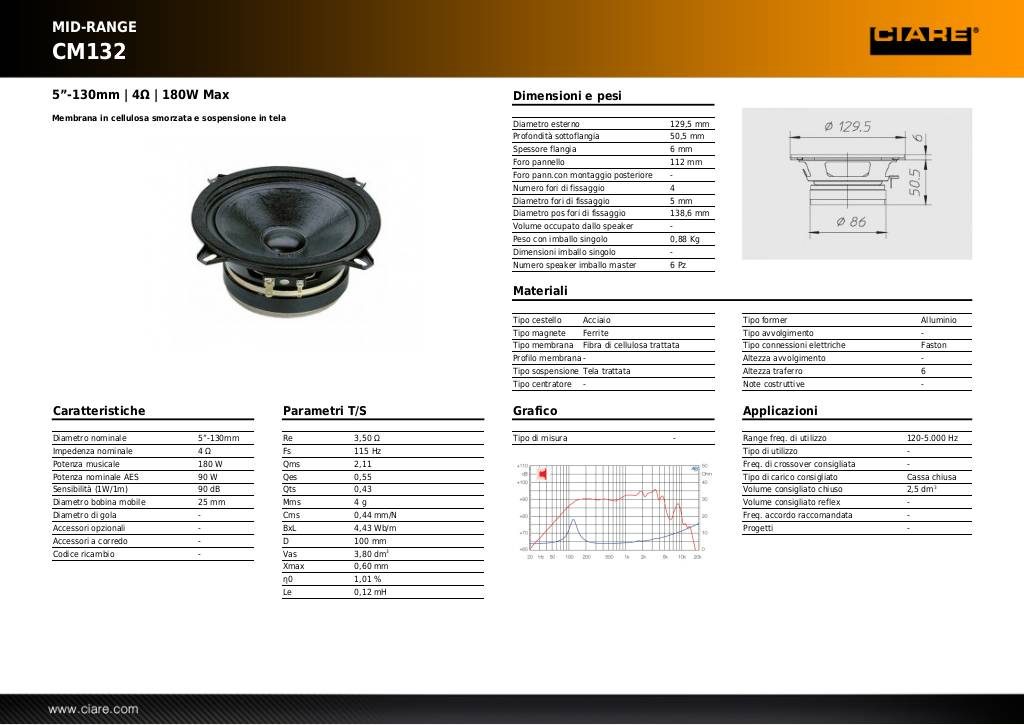

Scheda tecnica

20131029144738-cm132.pdf
