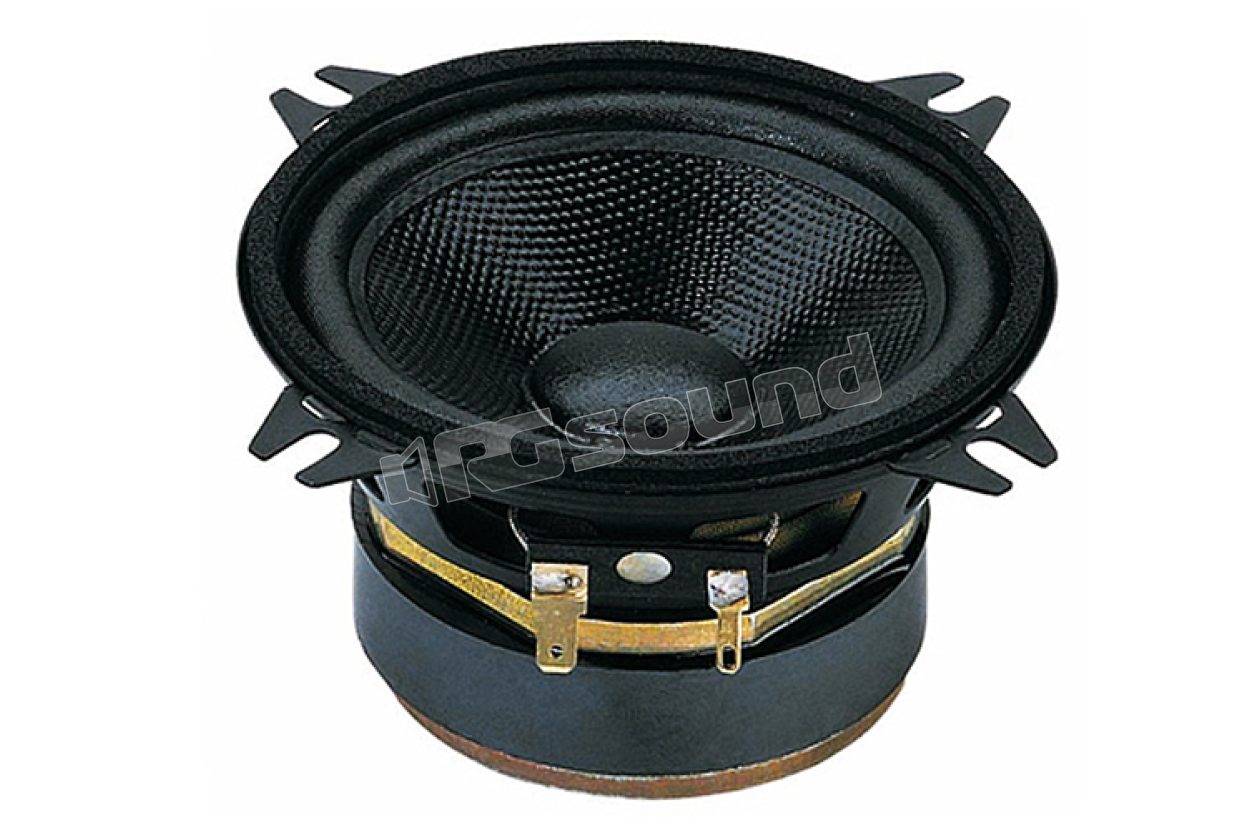

CM100

Ciare
Your price:
€ 30,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
MAX Power
150 Watt
RMS Power
60 Watt

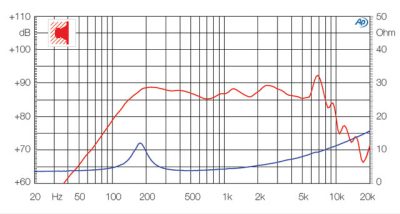

Frequency Response
150 - 8.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Weight
0,65 Kg
Installation Depth
49 mm
Midrange Cone Material
Acciaio

Ciare CM100 midrange, 100mm size, with damped cellulose membrane, canvas suspension, basket with removable fins, max power 90W, 4Ohm. Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product realization, allow the company to achieve the highest quality standards in the realization of every component.

CM100 Features

  • Max power: 150W
  • Nominal power: 60W
  • Diameter: 4''-100mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 25mm
  • Sensitivity 1W/1m: 89 dB
  • Recommended load type: Sealed box
  • Recommended closed volume: 1 dm3

CM100 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Membrane type: Cellulose fiber
  • Suspension type: Treated canvas
  • Electrical connections type: Faston
  • Gap height: 5 mm

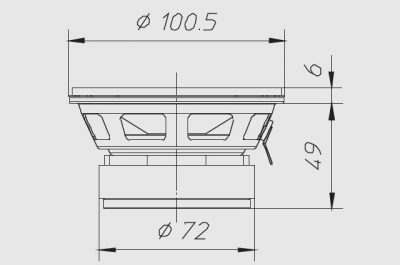

CM100 Dimensions

  • Outer diameter: 100.5 mm
  • Depth below flange: 49 mm
  • Flange thickness: 6 mm
  • Panel hole: 91 mm
  • Number of mounting holes: 4
  • Mounting hole diameter: 5 mm
  • Mounting hole position diameter: 110
  • Weight with single package: 0.65 Kg

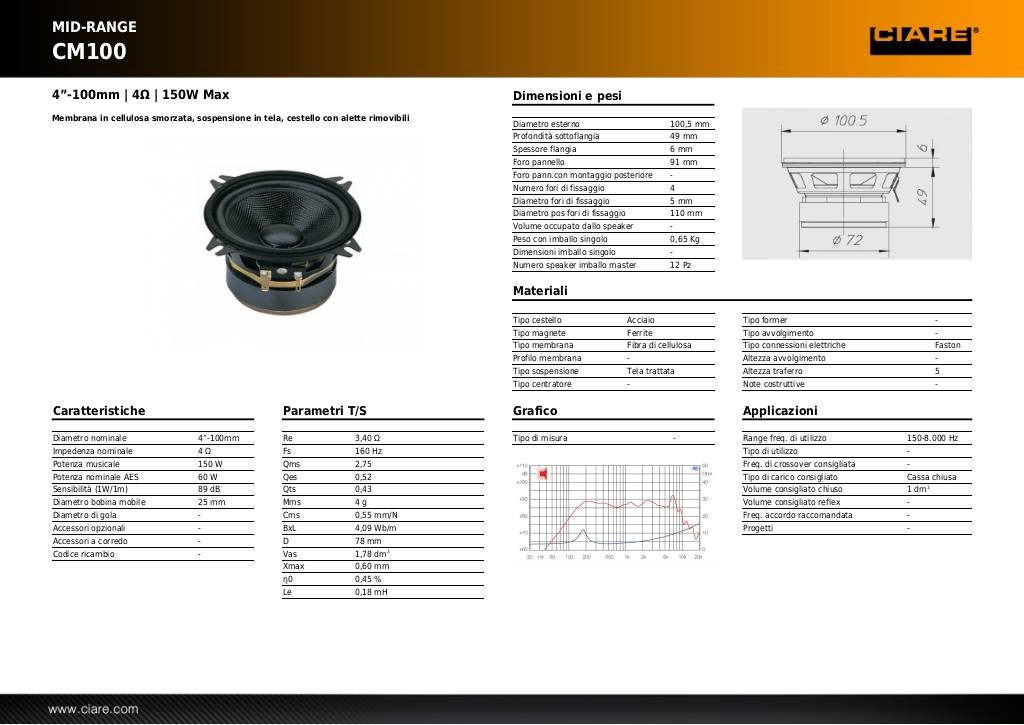

Scheda tecnica

20131028174041-cm100.pdf

1 Ciare CM100 Speaker
€ 30,00 Price incl. VAT
