CM087

Ciare
Your price:
€ 19,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
87 mm
MAX Power
90 Watt
RMS Power
30 Watt

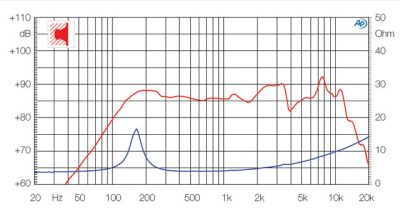

Frequency Response
150 - 10.000 Hertz
Sensitivity
98 dB
Impedance
4 Ohm
Weight
0,3 Kg
Installation Depth
36 mm
Midrange Cone Material
Acciaio

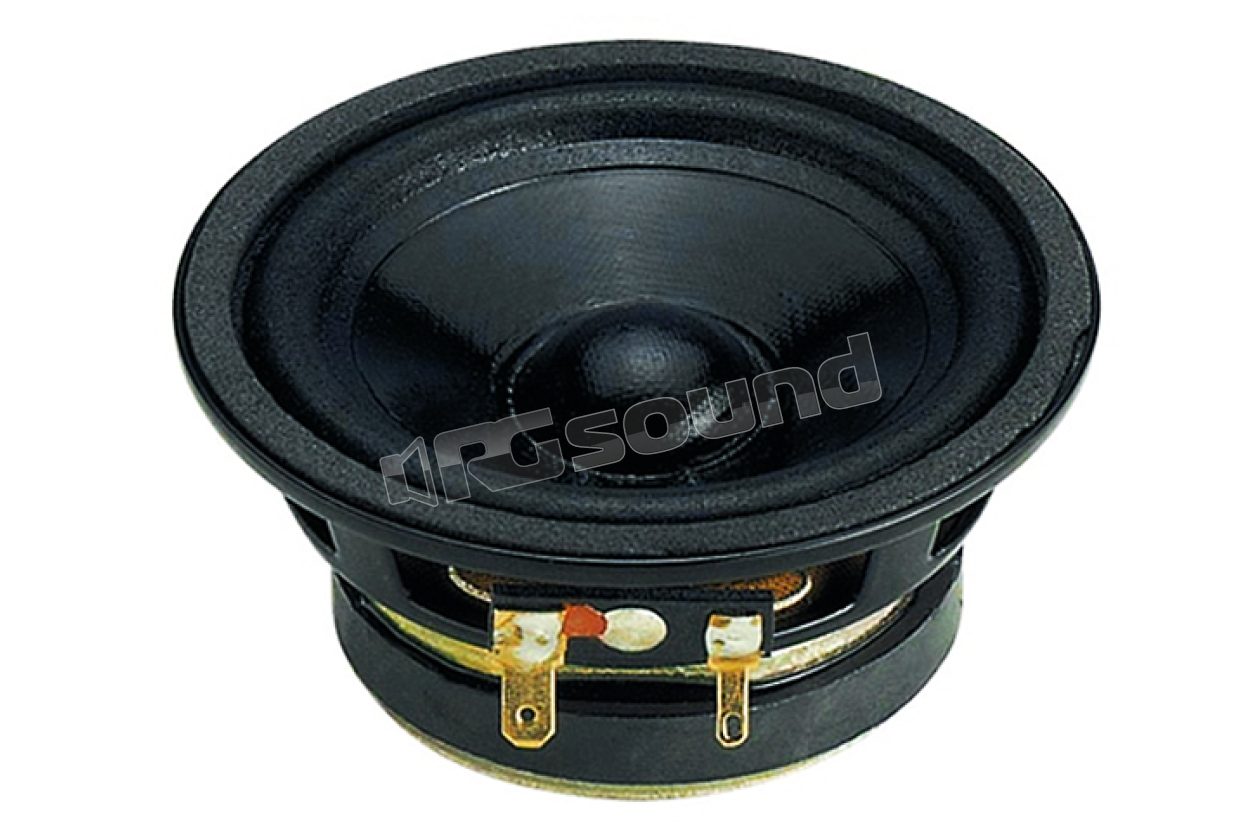

Ciare CM87 is an 87mm midrange, cellulose cone and surround, max power 90W, 4Ohm.
Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market demands, with absolute loyalty to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to independently manage all phases of product manufacturing, allowing the company to achieve the highest quality standards in the realization of every component.

CM087 Features

  • Max power: 90W
  • Nominal power: 30W
  • Diameter: 3.5''-87mm
  • Nominal impedance: 4Ω
  • Voice coil diameter: 20mm
  • Sensitivity 1W/1m: 98 dB
  • Recommended load type: Bass Reflex
  • Recommended reflex volume: 18 dm3
  • Recommended tuning frequency: 95 Hz

CM087 Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Cone type: Cellulose fiber
  • Surround type: Polyurethane
  • Former type: Aluminum
  • Electrical connections type: Faston
  • Air gap height: 4 mm

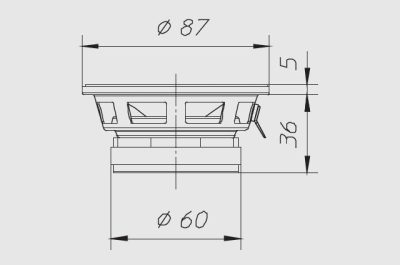

CM087 Dimensions

  • Outer diameter: 87 mm
  • Depth below flange: 36 mm
  • Flange thickness: 5 mm
  • Panel hole: 77 mm
  • Weight with single box: 0.33 Kg

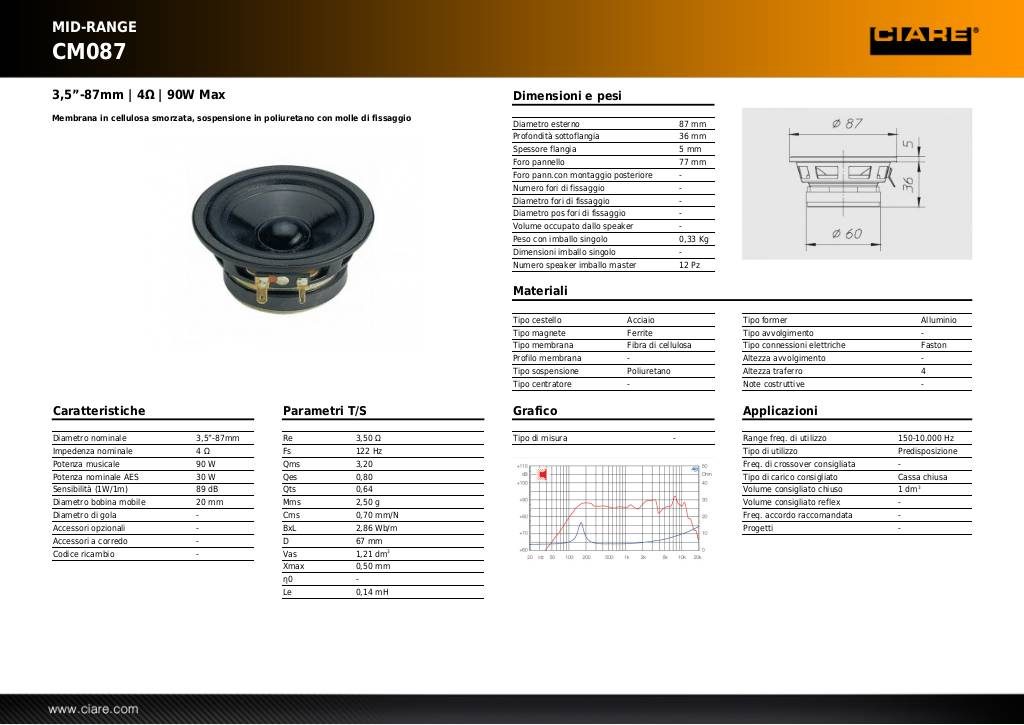

Scheda tecnica

20131028172513-cm087.pdf

1 Ciare CM087 Speaker
€ 19,00 Price incl. VAT
