CK 165 L 2-way speaker kit with integrated woofer, tweeter and crossover

Name: CK 165 L 2-way speaker kit with integrated woofer, tweeter and crossover
Brand: Hertz
SKU: 34-46214
Price: 179.00 EUR
Availability: InStock

CK 165 L 2-way speaker kit with integrated woofer, tweeter and crossover Hertz

Official Italian warranty

Your price:

€ 179,00

Price per single item (VAT included)

In stock, ready to ship

Calculating shipping costs to

Product code: #046214
Type: Speaker Systems - 2-Way Speaker Kits
Manufacturer: Hertz
Website: https://www.hertzaudiovideo.com

Type: 2-way separate kit
Frequency Response: 50 - 22.500 Hertz
Woofer Size: 165 mm
Tweeter Size: 25 millimetri
MAX Power: 300 Watt
RMS Power: 100 Watt
Sensitivity: 92 dB
Impedance: 4 Ohm
Woofer Material: Cellulosa non pressata
Tweeter Material: Tetolon

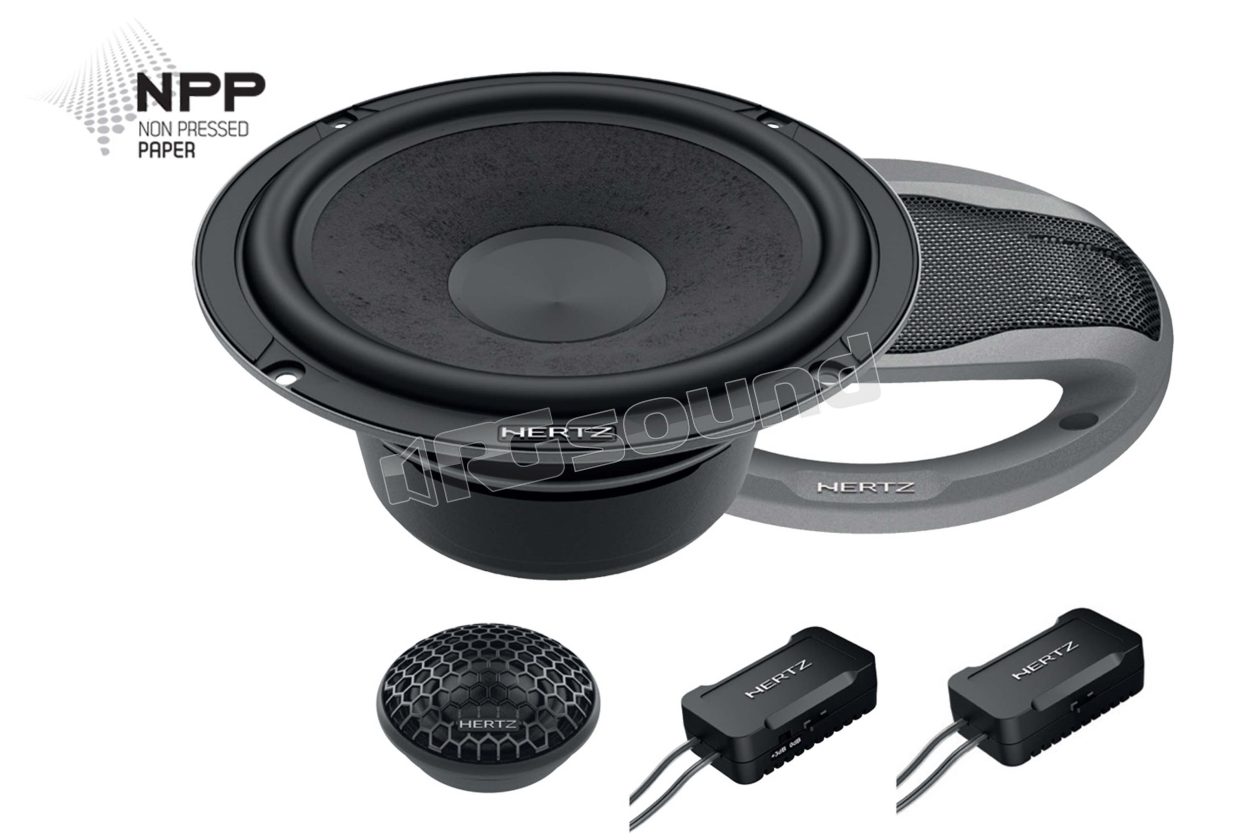

Hertz CK 165 L 2-way speaker system composed by a pair of 165mm woofers, a pair of 26 mm tweeters and dedicated crossovers

The Cento line expands with the woofer C165 L, characterized by the use of non-pressed paper for the cone membrane, a choice that gives this component a natural sound, with solid and controlled low frequencies. The enhancement of the magnetic group together with the specific coil allows to maximize the woofer excursion while maintaining maximum control even in the most demanding musical passages.

The CK 165 L system is composed of the woofer C 165 L, the tweeter C26 and the dedicated crossovers, made with selected components. The ultra-compact dimensions of the crossovers and cable connections offer the specialist greater freedom during installation.

The tweeter filter is 12 dB / oct. with two attenuation levels while for the woofer, thanks to its normal frequency roll-off, at 6 dB / oct. made with a high diameter copper coil in pure copper, is used to the advantage of reduced electrical losses and therefore of the efficiency of low frequencies. The involving low frequencies and the incredible manageability make the CK 165 L the perfect system for enthusiasts looking for strong emotions in the car cabin.

The Kit is composed of:

Tweeter C 26

Soft Tetolon dome of 26 mm (1 inch) and 20 mm (0.8 inches) coil, for a natural but detailed reproduction of musical nuances.
Neodymium magnet with high density magnetic flux, optimized for maximum control during high energy dynamic transients in the mid-high frequency range.
Front plate geometry optimized with FEM (Finite Element Modeling) technique for linear frequency response in off-axis installations.
Wide range of accessories, for easy integration in OEM positioning.

Woofer C 165 L

Non-pressed paper (NPP) cone for a natural sound and powerful damped low frequencies.
Ferrite magnet with high density flux combined with low carbon content polar plates to reduce distortion at high power levels.
25 mm (1 inch) coil sized for high excursion and winding on previous aluminum to ensure high power handling.
Compact and transparent three-spoke basket, combined acoustically with a rubber magnetic cover for total damping of spurious vibrations.
Elegant high-strength ABS plastic grille with metallic finish combined with a protective metal mesh.

Crossover CCX 2T - CCX 2W

Ultra-compact separate crossovers for woofer and tweeter, to the advantage of simplicity and installation flexibility.
Tweeter level adjustable via a two-position switch (0, +3 dB) for an optimal tone balance that can be customized by the user.
Capacitors and inductances in pure copper with low loss and low resistance for maximum sound transparency and clear high frequencies.
