CK 130 13cm 2-way kit, Cento Series

Hertz
Your price:
€ 169,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
65 - 22.500 Hertz
Woofer Size
130 mm
Tweeter Size
26 millimetri
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
92,5 dB
Impedance
4 Ohm
Woofer Material
Cono in carta semi-pressata
Tweeter Material
Tetolon

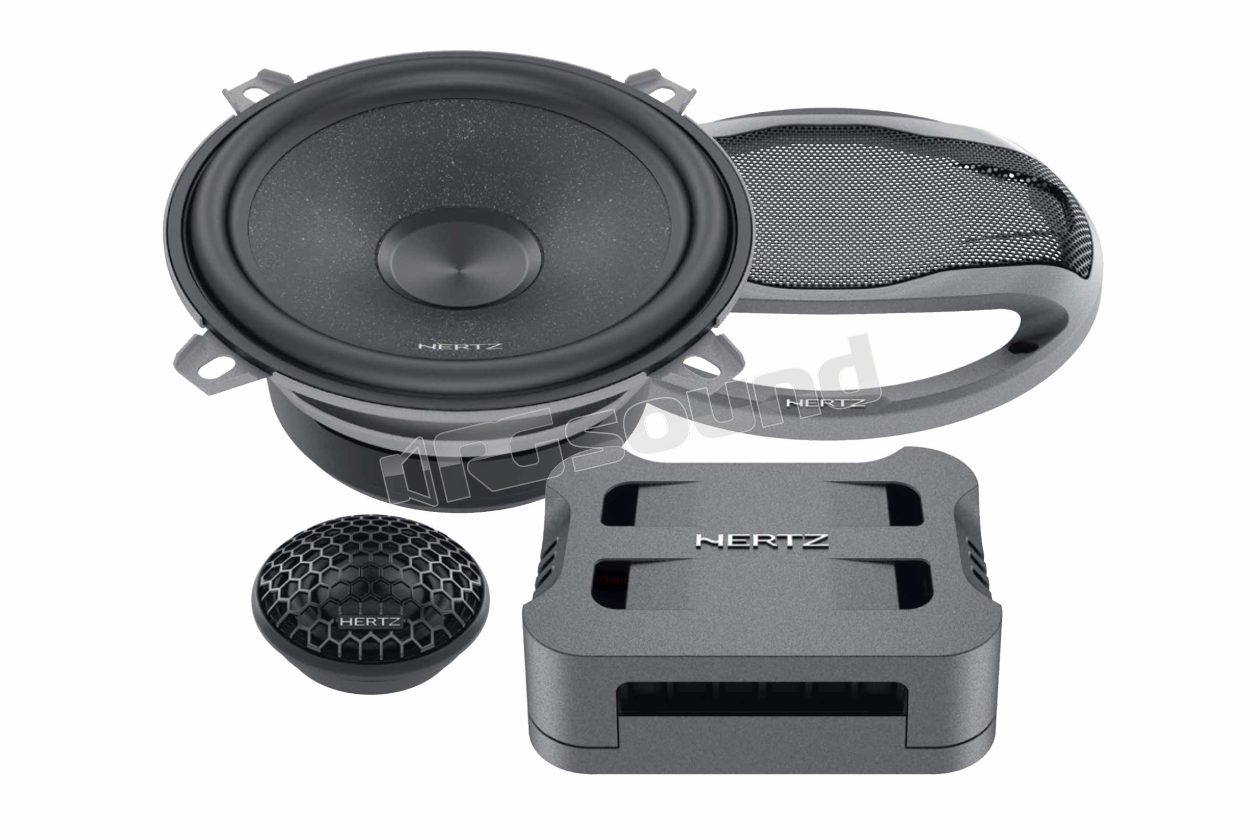

Hertz CK 130 Two-way speaker kit Cento series, with 13cm woofer, 26mm tweeter and crossover

Two-way Cento CK 130 system, with 13 cm (5 in.) woofer cone, new C 26 tweeter with 26 mm (1 in.) Tetolon dome and 20 mm (0.8 in.) voice coil, for detailed and natural reproduction of mid-high frequencies. The R&D team optimized the dispersion characteristics of the C 26 to maximize performance at the listening point, with a natural and progressive roll-off and natural timbre that prioritizes frequency linearity.

Much time was invested in researching the perfect material for the C 130 woofer cones: through extensive material characterization work they arrived at SPP-M (Semi Pressed Paper-Mica) which preserves the natural sound of semi-pressed paper and enriches it with Mica powder that improves rigidity.

The Kit consists of:

Tweeter C 26

  • Wide soft dome in Tetolon® fiber 26 mm (1 in.) and voice coil 20 mm (0.8 in.), for natural and at the same time detailed reproduction of musical nuances.
  • Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
  • Faceplate geometry optimized with FEM (Finite Element Modeling) technique for linear frequency response in off-axis installations.
  • Extensive accessory kit, for easy integration in pre-installation.

Woofer C 130

  • Semi-pressed paper SPP-M (Semi Pressed Paper-Mica) cone 130 mm (5 in.) enriched with Mica powder for excellent balance between lightness and damping.
  • High flux density ferrite magnet combined with low carbon content pole plates, for lower distortion at high power levels.
  • 25 mm (1 in.) voice coil with aluminum former to ensure high excursion and power handling.
  • Compact three-spoke basket acoustically transparent combined with a rubber magnet cover for total damping of spurious vibrations.
  • Elegant grille with high-strength ABS plastic structure with metallized finish combined with a metal protection mesh

Crossover CCX 2

  • Tweeter level adjustment via two-position switch (0, +3 dB) for optimal and user-customizable tonal balance.
  • Low-loss factor capacitors and pure copper inductances with low resistance, for maximum sound transparency and clean high frequencies.
  • Compact design to the advantage of installation simplicity, with air vents for efficient heat dissipation.

Manuale Utente

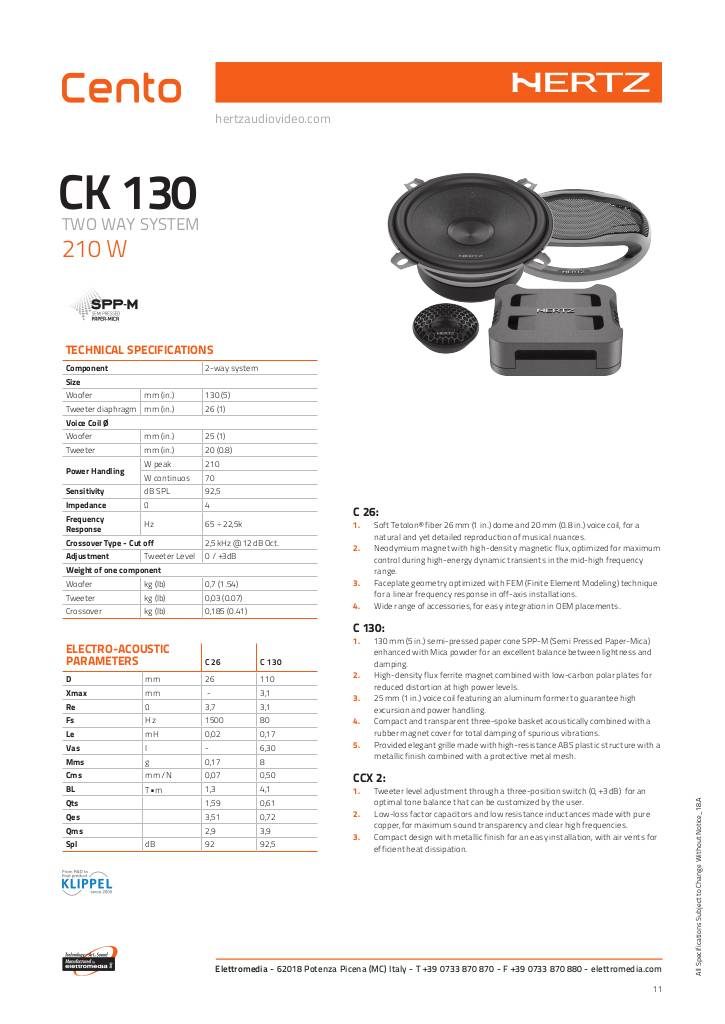

n-20240422100219-hertz-ck130-tech-sheet-rev18a.pdf

Hertz CK 130 Technical specifications

  • 2-way component system
  • Woofer dimensions mm 130 (5")
  • Tweeter diaphragm mm 26 (1")
  • Voice coil diameter:
    • Woofer mm 25 (1")
    • Tweeter mm 20 (0.8")
  • Power handling:
    • W peak 210
    • W continuous 70
  • Sensitivity dB SPL 92.5
  • Impedance Ω 4
  • Frequency response Hz 65 ÷ 22.5k
  • Crossover type - Cut off 2.5 kHz @ 12 dB Oct.
  • Tweeter level adjustment 0 / +3dB
  • Weight
    • Woofer kg 0.7 (1.54 lb)
    • Tweeter kg 0.03 (0.07 lb)
    • Crossover kg 0.185 (0.41 lb)
