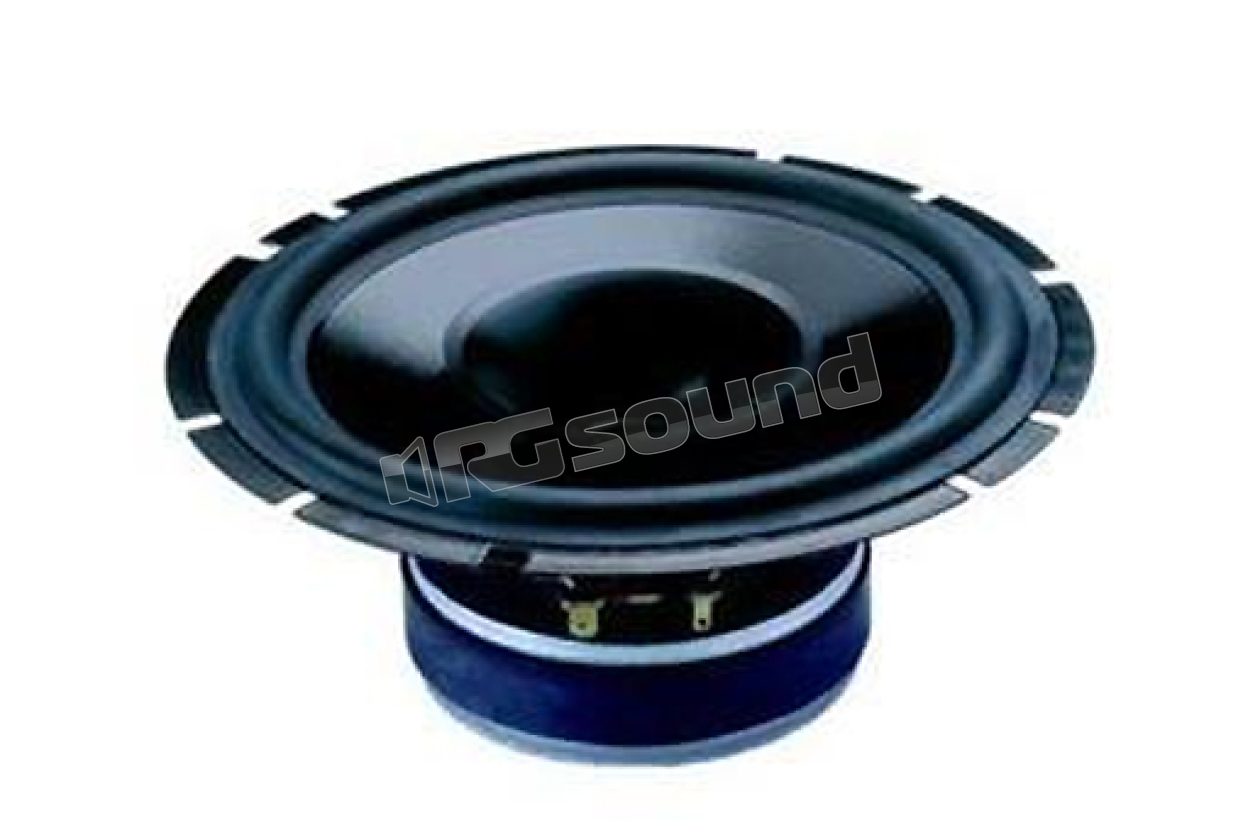

CH170Z 165 mm Dual Cone Cz Series

Ciare
Your price:
€ 32,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Two-way
Speaker Size
165 mm
Coaxial Type
2-way
MAX Power
150 Watt
RMS Power
60 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Ciare CH170Z Dual cone 165 mm (6.5"), 150 Watt max, 4 Ohm

Ciare is a company constantly keeping pace with technological innovations and under the continuous stimulus of market requests, with absolute fidelity to its original ideals, first and foremost the constant pursuit of product excellence.

The experience gained over years of activity and the ability to manage completely autonomously all phases of product realization, allowing the company to achieve the highest quality standards in the realization of every component.

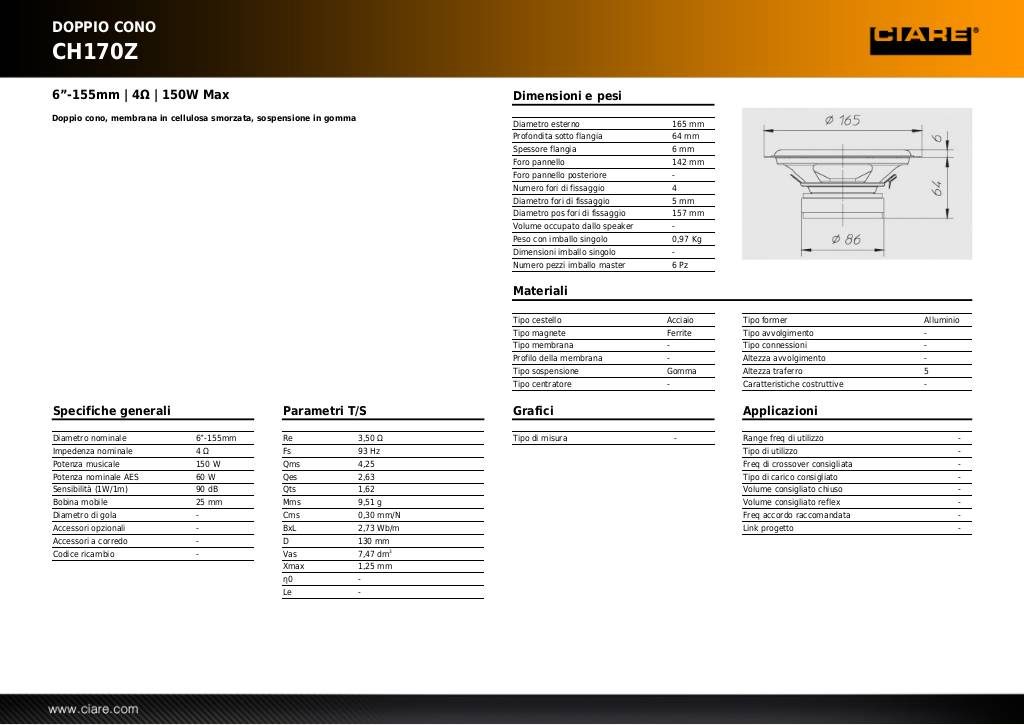

Scheda tecnica

n-20251027123426-20140303143942-ch170z.pdf

Ciare CH170Z Technical specifications

  • Musical power: 150 W
  • Rated power AES: 60 W
  • Nominal diameter: 6"-155mm
  • Nominal impedance: 4 Ω
  • Voice coil: 25mm
  • Sensitivity 1W/1m: 90 dB

Materials

  • Basket type: Steel
  • Magnet type: Ferrite
  • Suspension type: Rubber
  • Former type: Aluminum
  • Air gap height: 5 mm

Dimensions

  • Outer diameter: 165 mm
  • Depth under flange: 64 mm
  • Flange thickness: 6 mm
  • Panel hole: 142 mm
  • Number of fixing holes: 4
  • Fixing holes diameter: 5 mm
  • Fixing holes position diameter: 157
  • Weight with single packaging: 0.97 Kg
€ 32,00 Price incl. VAT
