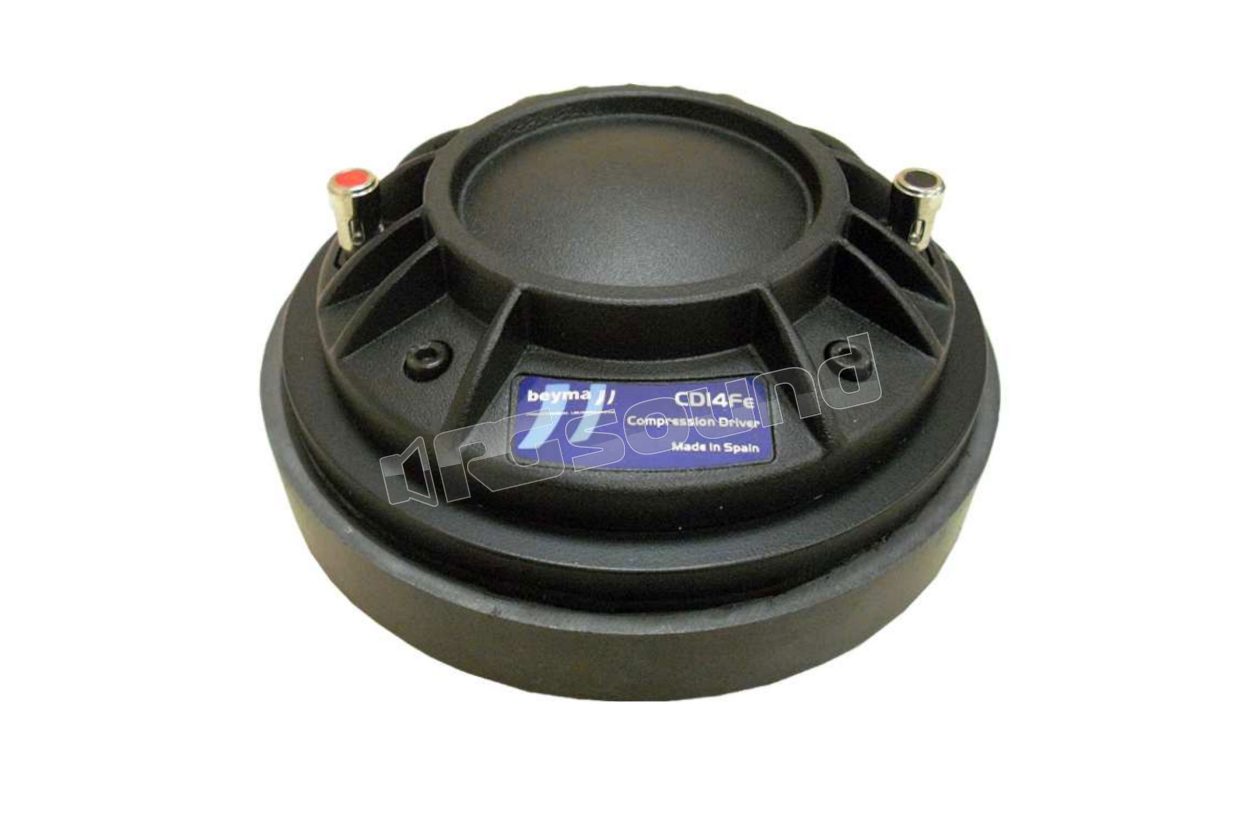

CD-14Fe compression driver

Beyma
Your price:
€ 122,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
Other sizes
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
500 - 16.000 Hertz
Sensitivity
107 dB
Impedance
8 Ohm
Weight
3,3 Kg
Installation Depth
62 mm
Voice Coil Diameter
63,5 mm

Beyma CD-14Fe high frequency compression driver, with PM-4 polymer diaphragm for natural sound reproduction, 8 Ohm impedance, 1.4" (36 mm) output

Moving coil in 2.5" (63.5 mm) aluminum ribbon, 107 dB sensitivity, 160 W power above 1 kHz.

Aluminum cover and ferrite motor structure optimized FEA.

Beyma CD-14Fe

Throat diameter 36 mm 1.4 in

Nominal impedance 8 Ohm

Minimum impedance 7 ohm @ 3 kHz

Re 5.3 ohm

Power capacity 60 W AES above 800 Hz

Program power 120 W above 800 Hz

Sensitivity 107 dB 1W / 1m @ ZN coupled to TD-385

Frequency range 500-16000 Hz

Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)

Voice coil diameter 63.5 mm 2.5 in

Flux density 1.55 T

BL factor 9.1 N/A

Diaphragm material PM4

External diameter 145 mm 5.70 in

Depth 62 mm 2.44 in

Mounting Four M6 threaded holes. 90º apart on 101.6 mm (4 in) diameter circle. Mounting hardware is supplied

Net weight 3.3 kg 7.26 lb

Total weight 3.5 kg 7.77 lb

Magnet Ferrite

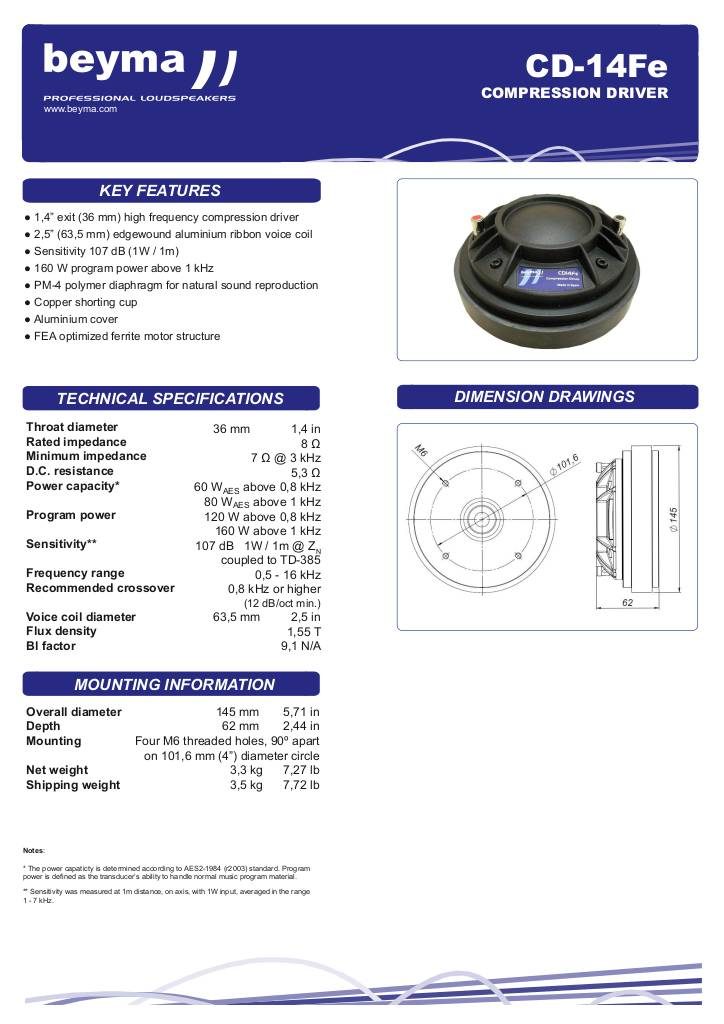

Scheda tecnica

n-20180511164910-cd-14fe.pdf
€ 122,00 Price incl. VAT
