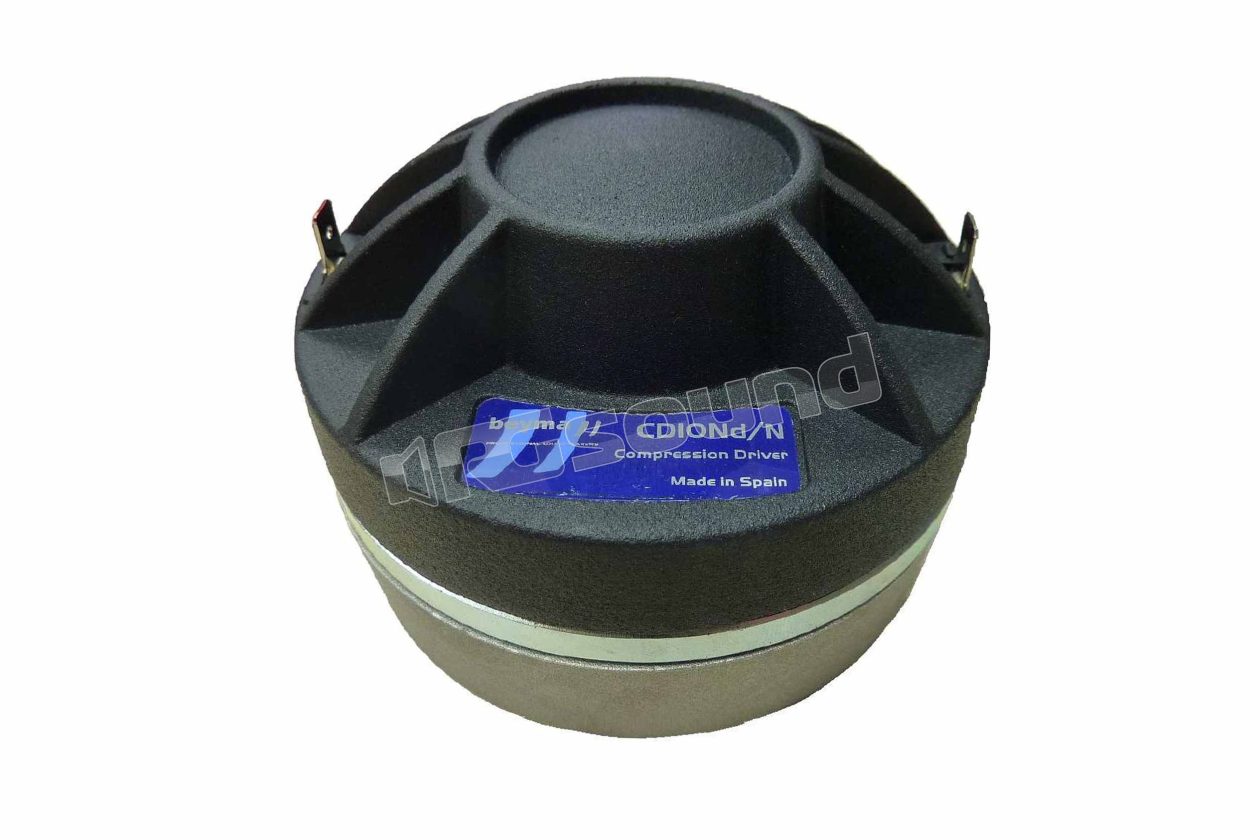

CD-10Nd/N

Beyma
Your price:
€ 195,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
100 mm
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
700 - 19.000 Hertz
Sensitivity
111 dB
Impedance
8 Ohm
Weight
1,2 Kg
Installation Depth
66,4 mm
Voice Coil Diameter
44 mm

Beyma CD-10Nd/N 1" (25 mm) high frequency compression driver, sensitivity 111 dB

Improved mechanical coupling of the mobile assembly for excellent power handling capabilities, PM-4 polymer diaphragm with increased surface tension. Voice coil in ultralight aluminum tape. Neodymium magnet.

Beyma CD10Nd/N technical specifications

Throat diameter 25 mm 1 in

Nominal impedance 8 Ohm

Minimum impedance 5.3 ohm @ 4.3 kHz

Re 4.3 ohm

Power capacity 70 W AES above 1.2 kHz

Program power 140 W above 1.2 kHz

Sensitivity 111 dB 1 W @ 1 m coupled to horn TD-164

Frequency range 700-19000 Hz

Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)

Voice coil diameter 44.3 mm 1.75 in

Flux density 2.2 T

BL factor 8.9 N/A

Diaphragm material PM4

External diameter 100 mm 3.94 in

Depth 66.4 mm 2.61 in

Mounting Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on 76.2 mm (3 in) diameter circle.

Net weight 1.2 kg 2.64 Ib.

Total weight 1.3 kg 2.86 lb

Magnet Neodymium

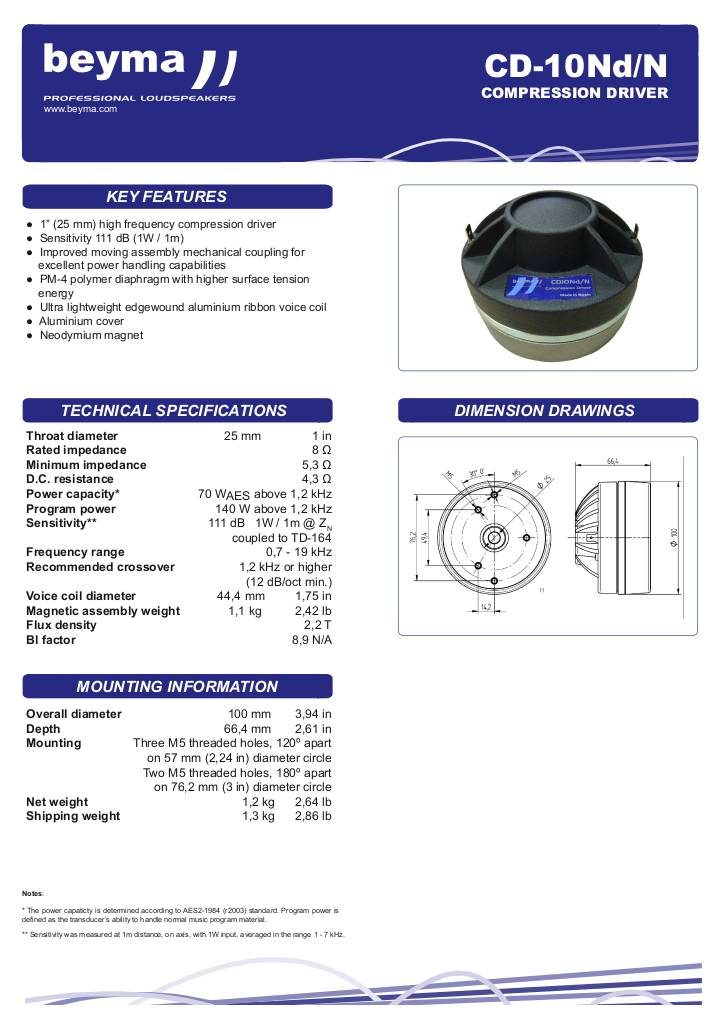

Scheda tecnica

n-20180517105413-cd-10nd-n.pdf
€ 195,00 Price incl. VAT
