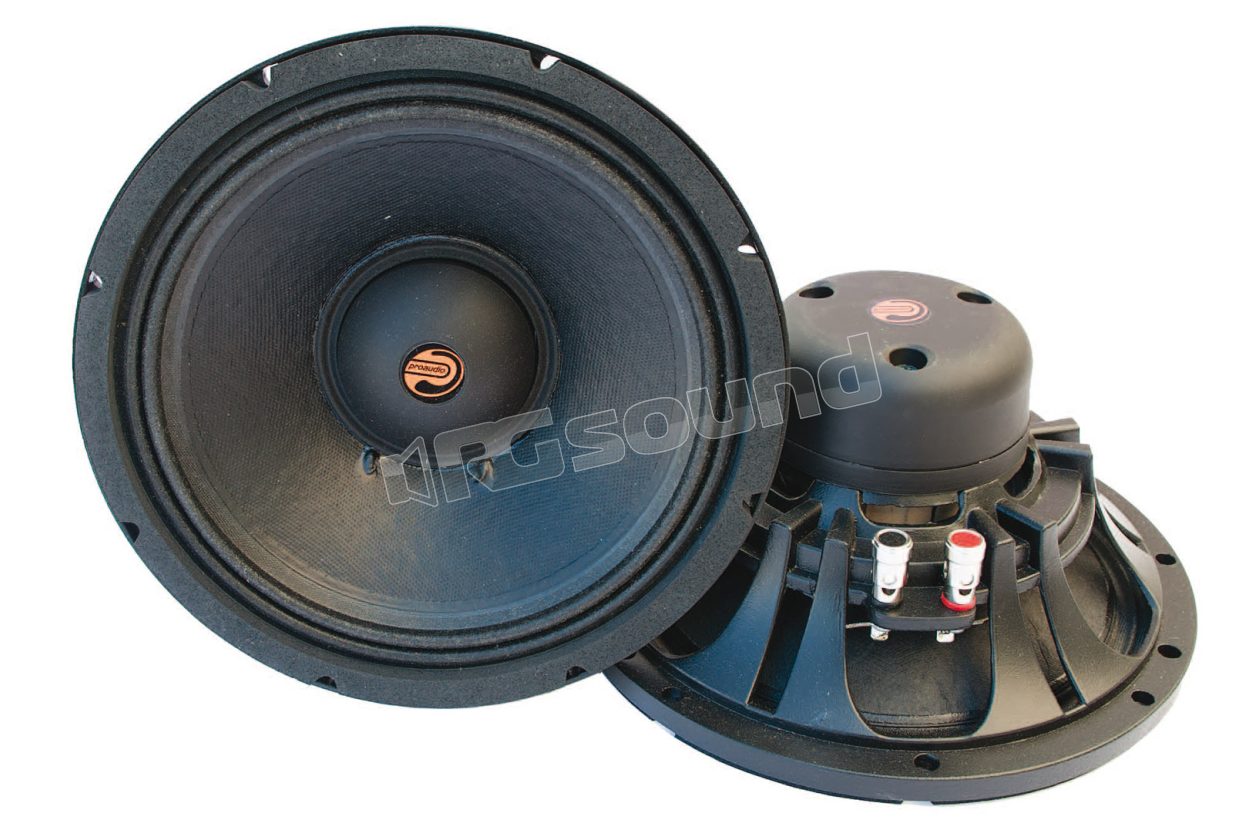

C200 20cm high-efficiency extended range

Proaudio
Your price:
€ 239,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Sensitivity
98 dB
Impedance
4 Ohm
Weight
2,2 Kg
Installation Depth
95 mm
Midrange Cone Material
Cellulosa rinforzata

Proaudio C200 speaker with excellent performance featuring a cellulose pulp diaphragm for compact, high-efficiency emission, linearity and low distortion guarantee extreme performance in car audio, construction details for extraordinary applications.

C200 Features

Basket: die-cast aluminum, black painted, anti-scratch textured
Magnetic group: neodymium
Coil: aluminum winding, aluminum support
Coil diameter: 64 mm
Centerer: Nomex Fabric
Suspension: nomex
Cone: cellulose fibers treated with vinyl resins, water-repellent
Power handling: 250 Watts RMS | 500 Watts Max
Impedance: 4 ohm
Efficiency: 98 dB

INSTALLATION RECOMMENDATIONS

Visible installation in door from two or more units.
Fiberglass and resin supports are highly recommended. Thanks to the nose cone it is possible to exploit the wide polar response for creative doors by "falsifying" the inclinations on the plane without losing linearity.
Multi-amplification is necessary, especially if the goal is high pressure. We recommend the 150Hz Hp electronic filter.

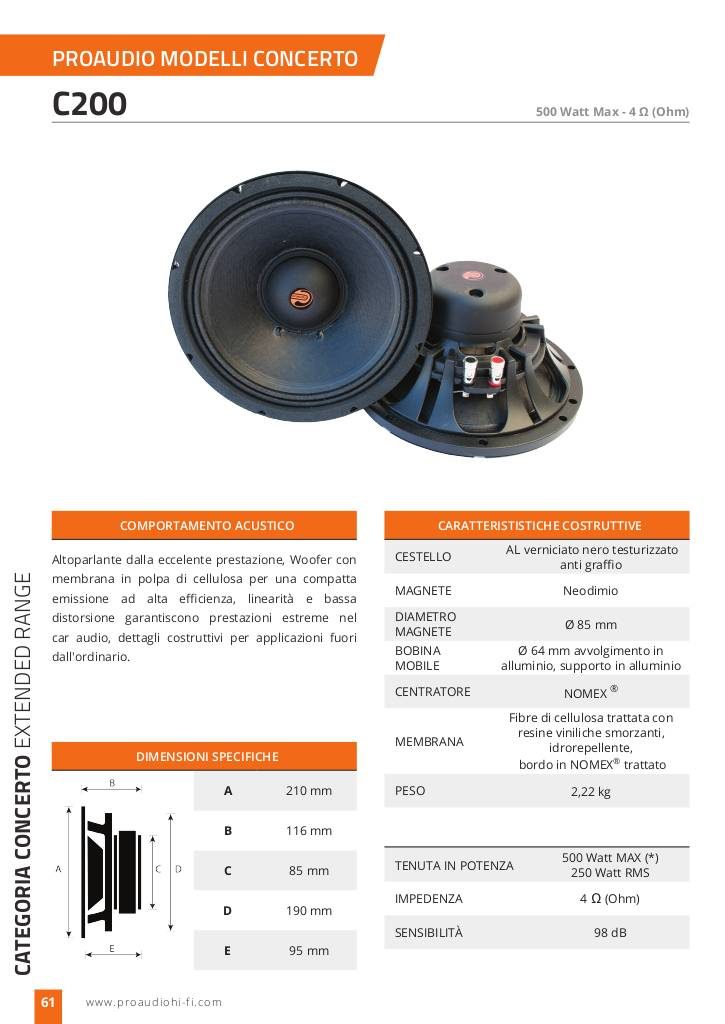

Scheda tecnica

20141224142657-proaudio-scheda-c200.pdf
