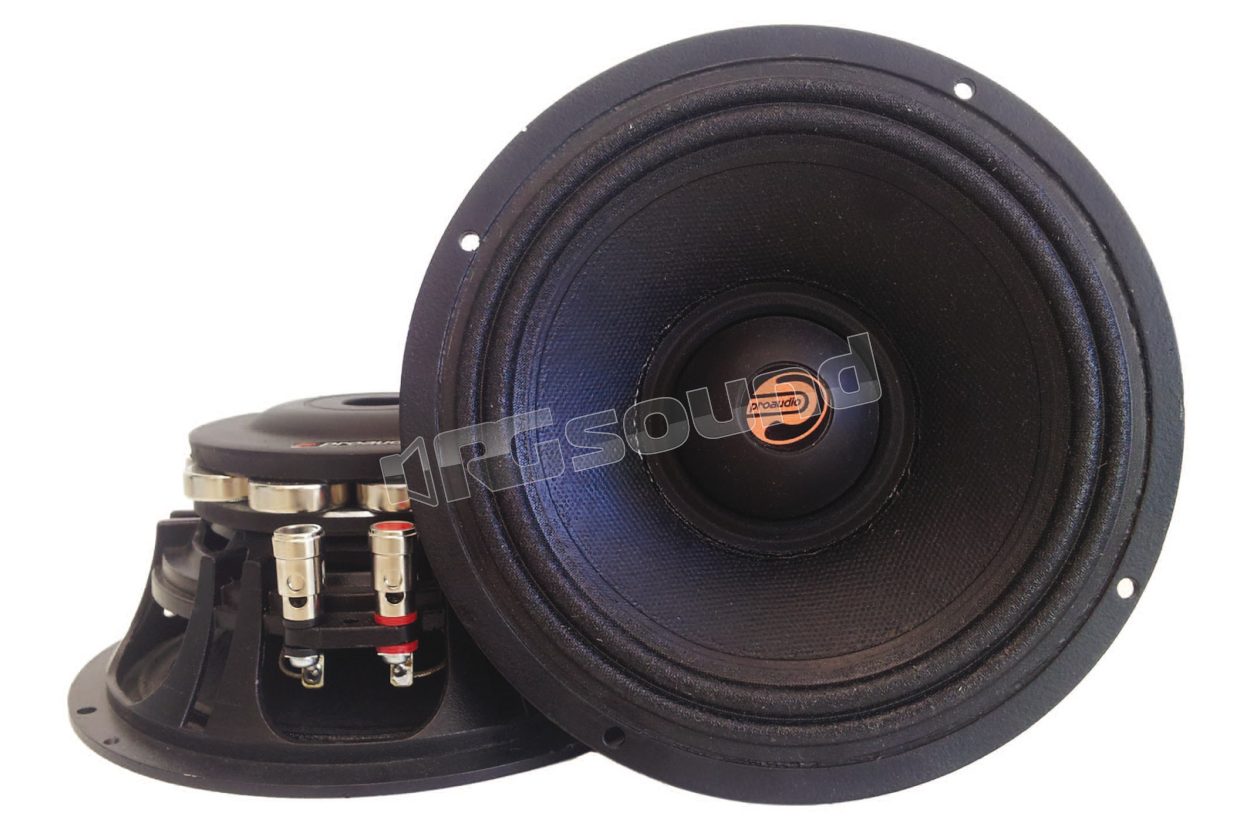

C166 High-efficiency 16.5 cm extended range pair

Proaudio
Your price:
€ 429,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
MAX Power
400 Watt
RMS Power
200 Watt
Sensitivity
98 dB
Impedance
4 Ohm
Weight
1,6 Kg
Installation Depth
72 mm
Midrange Cone Material
Cellulosa rinforzata

Proaudio C166 Pair extended range high efficiency 16.5 cm

Pair Proaudio C166 midrange extended range with excellent performance in all situations. Always stable, powerful and detailed. With the particular coil with aluminum support, aluminum wire, and short circuit magnetic ring allow you to extend its use to the extreme of the high range with efficiency around 98dB.

Installation advice

  • Designed for high efficiency doors we recommend custom fiberglass supports.
  • Thanks to the Neodymium magnetic complex and the light alloy basket it makes it easy to install.
  • We recommend at least two or more units per door filtered electronically around 150Hz HP with steep slopes.
  • Aluminum phase plug machined from solid, grilles available upon request.

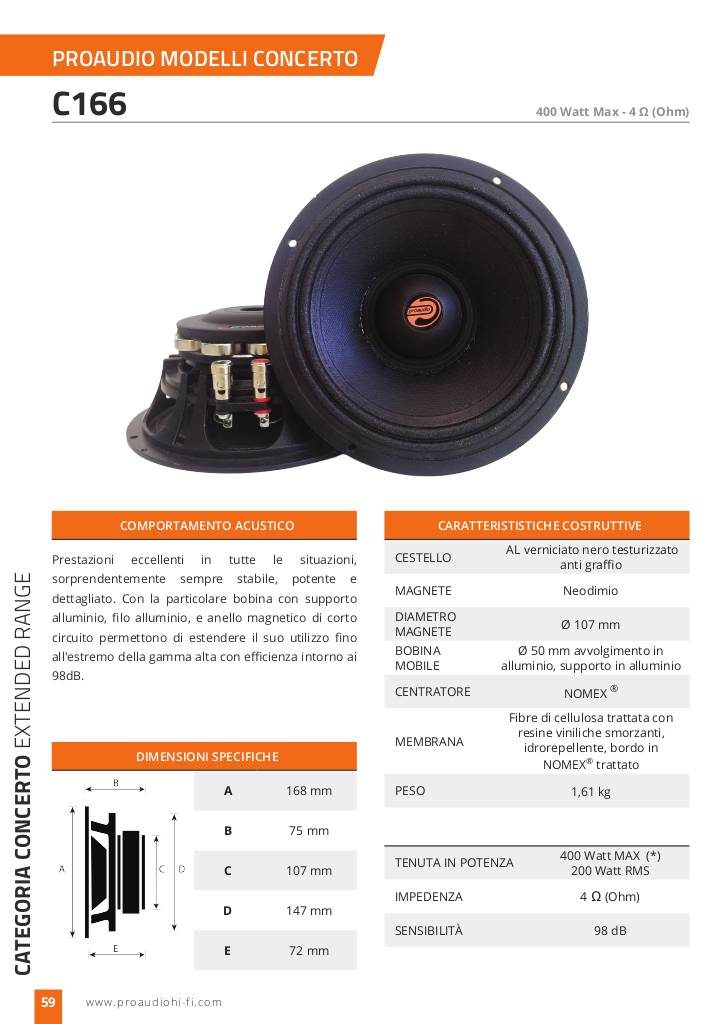

Scheda tecnica

20141224140904-proaudio-scheda-c166.pdf

Proaudio C166 Technical specifications

  • Basket: die-cast aluminum, painted black, scratch-resistant textured
  • Magnetic group: neodymium
  • Coil: aluminum winding, aluminum support
  • Coil diameter: 50 mm
  • Spider: Nomex Fabric
  • Surround: nomex
  • Cone: cellulose fibers treated with vinyl resins, water-repellent
  • Power handling: 200 Watt RMS | 400 Watt Max
  • Impedance: 4 ohm
  • Efficiency: 98 dB
€ 429,00 Price incl. VAT
