C1-650x

JL Audio
Your price:
€ 180,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
48 - 24.000 Hertz
MAX Power
225 Watt
RMS Power
50 Watt
Sensitivity
90,5 dB
Impedance
4 Ohm
Woofer Material
Polipropilene e minerali
Tweeter Material
Cupola in alluminio

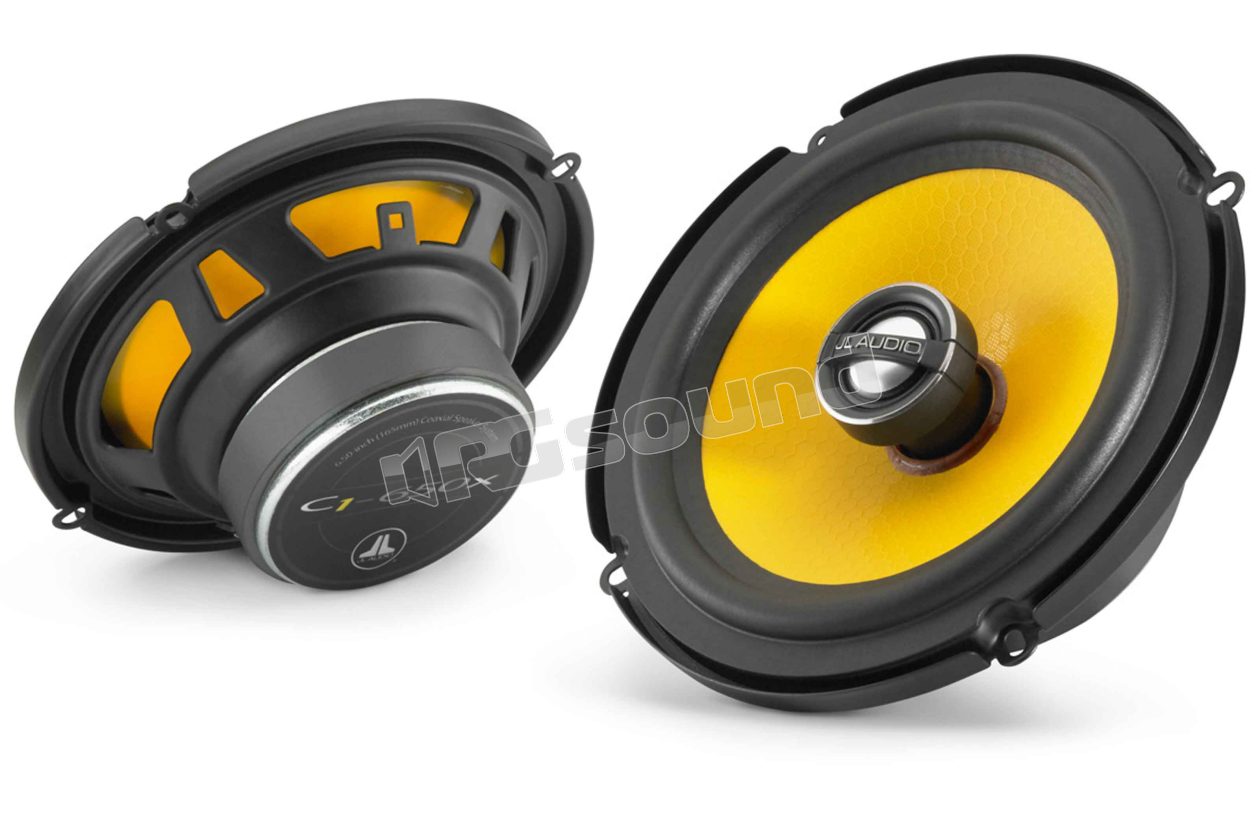

JL Audio C1-650x pair of 165mm two-way coaxial speakers from the C1 series

The C1-650x speakers offer real substance and exceptional audio performance in a format designed to fit easily behind factory provisions. To facilitate installation, the package includes a pair of multi-application adapter rings, allowing easy and immediate installation.

The C1 woofer drivers benefit from JL Audio's proprietary FEA modeling and experience in designing low-frequency drivers. This knowledge is used to create speakers that can play loud while maintaining a uniform, dynamic, low-distortion sound.

The heart of the C1-650x is a patented 6.50-inch steel frame (165 mm) and a motor system optimized for DMA. A mineral-filled polypropylene cone, injection molded, is suspended with a rubber surround on the front and a carefully designed flat Conex® spider at the top of the voice coil, to precisely control voice coil movement. Tinsel wires are carefully routed and attached to the spider to prevent fatigue and buzz. These are the same types of features and materials normally found on much more expensive speakers.

Equipped with a true edge-oriented aluminum dome tweeter, the C1-650x coaxials stand out for superior high-frequency clarity and definition. The tweeter design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and ferrofluids in the voice coil gap, along with the superior strength of a neodymium magnet circuit. A true high-pass filter is used to further improve smoothness and improve power handling.

JL Audio C1-650x technical specifications:

Continuous Power Handling (RMS): 50 W

Peak Music Power: 225 W

Recommended Amplifier Power (RMS): 10 - 75 W / Ch.

System Efficiency: 90.5 dB @ 1 W / 1 m

System Nominal Impedance: 4 Ω

System Frequency Response: 48 Hz - 24 KHz ± 3 dB

JL Audio C1-650x dimensions:

Woofer diameter 165 mm

Tweeter diameter 19 mm

Installation hole diameter 128 mm

Installation depth 53 mm

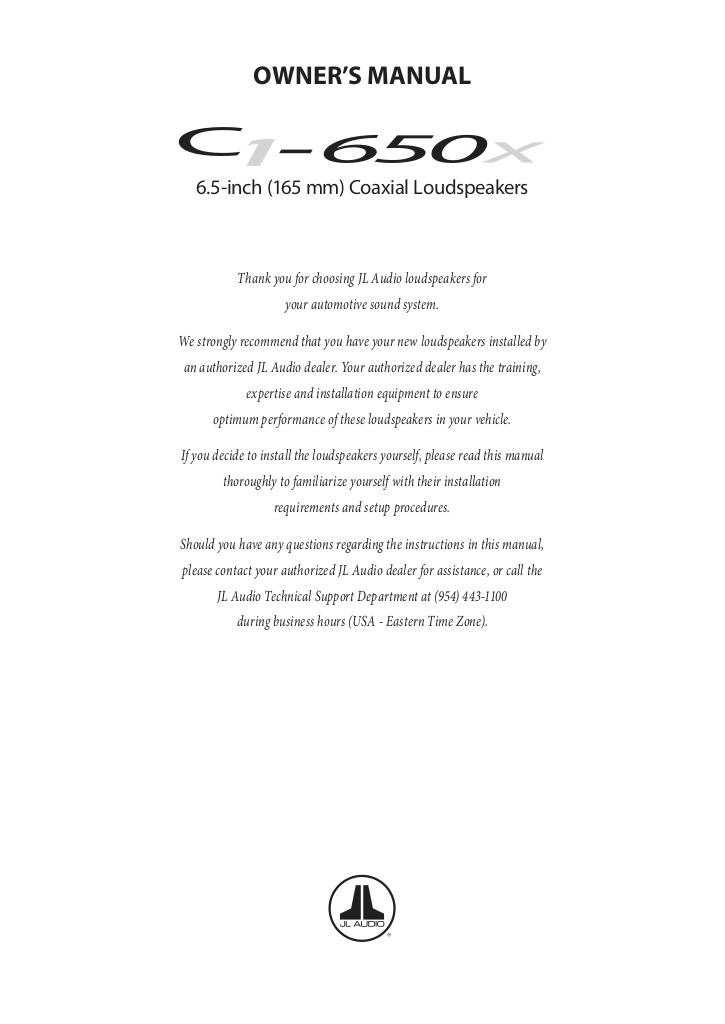

Scheda tecnica

n-20180628143208-c1-650x-man.pdf
