Type
2-way separate kit
Frequency Response
59 - 22.000 Hertz
Woofer Size
165 mm
Tweeter Size
19 millimetri
MAX Power
225 Watt
RMS Power
50 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Polipropilene e minerali
Tweeter Material
Cupola in alluminio

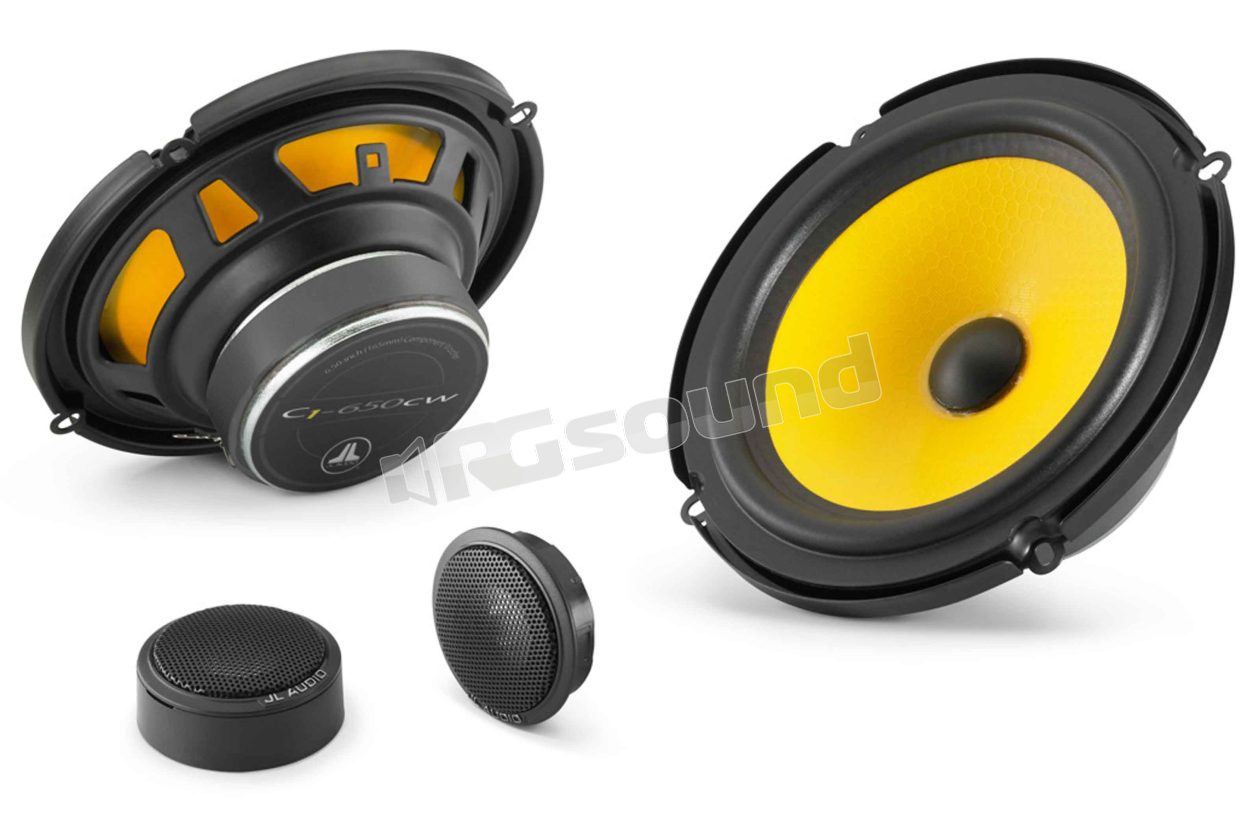

JL Audio C1-650 2-way C1 Series system from 165mm, 19 mm (0.75") aluminum dome tweeter and universal adapter rings.

The C1 Series speakers deliver exceptional audio performance in a format designed to fit easily into factory spaces. To facilitate installation, multi-application adapter rings are included that allow easy and immediate installation in vehicles equipped with speaker spaces for 6.5 and 6.75 inch drivers. Surface and recessed mounts are included with C1 tweeters for maximum installation versatility.

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's experience in low-frequency driver design. This knowledge is used to create speakers that can play loud while maintaining a smooth, dynamic, low-distortion sound. The heart of the C1-650 is a patented 6.50 inch (165 mm) steel frame and an optimized motor system for DMA. An injection-molded mineral-filled polypropylene cone is suspended with a rubber surround on the front and a carefully designed flat Conex® spider at the top of the voice coil, to precisely control voice coil movement. Tinsel wires are carefully routed and attached to spiders to prevent fatigue and buzzing. These are the same types of features and materials normally found on much more expensive speakers.

Equipped with a true aluminum dome tweeter, edge-oriented, C1 speakers stand out from others in its category with superior high-frequency clarity and definition. The tweeter design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An included second-order high-pass filter, in-line, outboard, with advanced Tweeter protection circuit, further improves smoothness and enhances power handling.

Grilles not included in the package.

JL Audio C1-650 Technical Specifications

Continuous Power Handling (RMS) 50 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
System Efficiency 91.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 59 Hz - 22 KHz ± 3 dB

Woofer Dimensions:

Diameter 165 mm
External Diameter 174 mm
Mounting Hole Diameter 141 mm
Mounting Depth 62 mm

Scheda tecnica

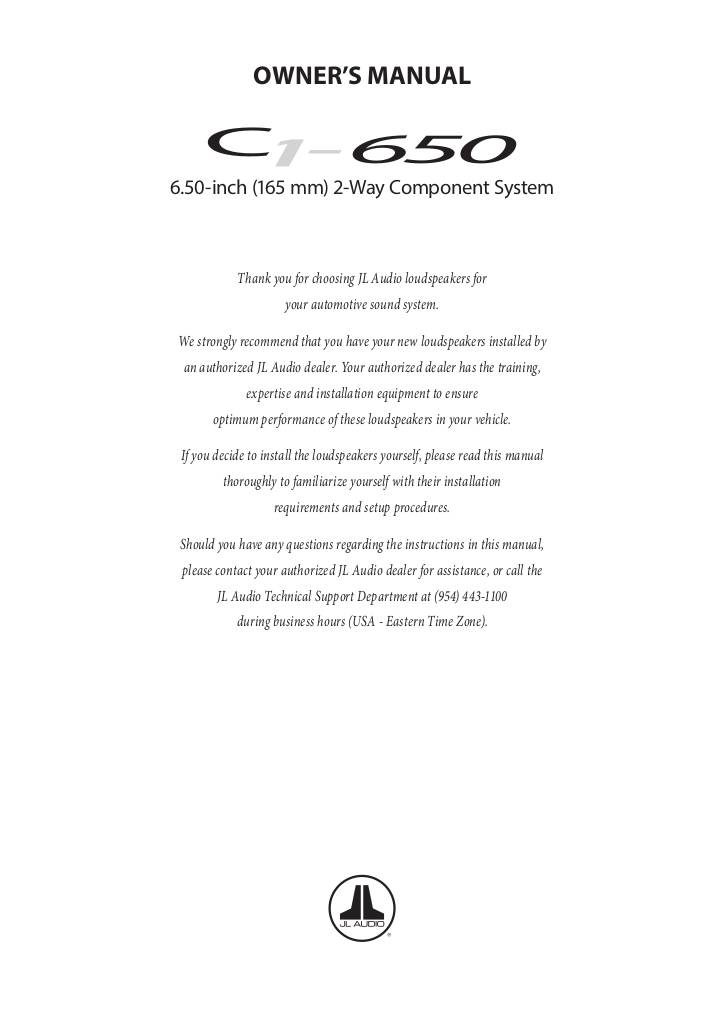

n-20180628141939-c1-650-man.pdf
