C KIT16 165mm 3-way system, Concerto series

Proaudio
Your price:
€ 799,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

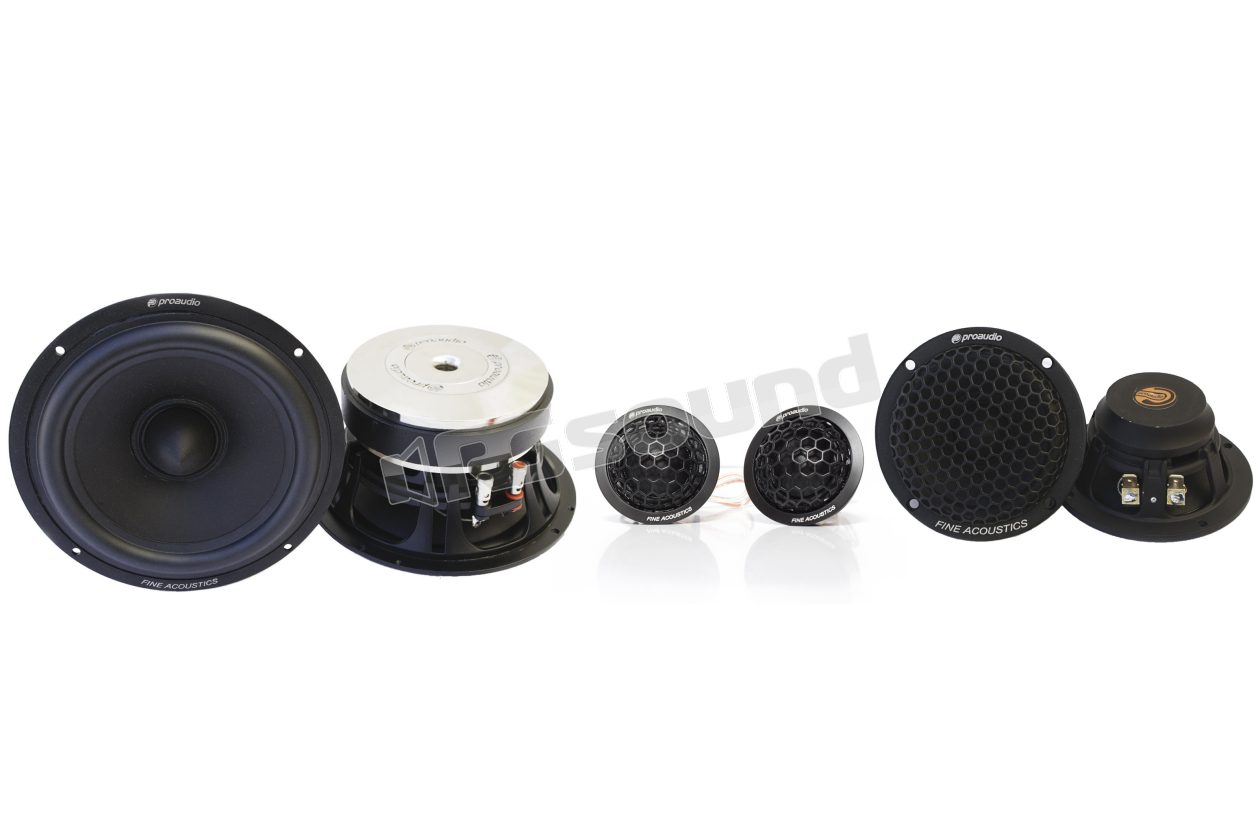

Proaudio C KIT16 Three-way system composed of a pair of C165 woofers, a pair of C87 midrange drivers, a pair of C26 tweeters and dedicated crossovers X02-02.

C KIT16 Components:

  • Proaudio C165 pair of extremely precise midwoofers, natural sound, timbrically coherent across the entire range. Without ever exceeding, it manages with remarkable simplicity to reproduce very faithfully any music program, revealing unexpected details from components of this diameter. Supported by the large magnetic assembly it achieves excellent control of the full and round low range, incisive especially when installed in defined volumes.
  • Proaudio C87 excellent sound sensitivity, the emission remains linear to the extremes of the perpendicular. Very fast and rich in details, great resolution while maintaining high engagement capability.
  • Pair of tweeters Proaudio C26 very sensitive and ready even in the most complex transients, precise and defined timbre capable of faithfully reproducing all sound scenes.
  • Pair of crossovers Proaudio X02-02 for 3-way systems designed "to offer multiple tuning possibilities", they are the result of calculations, measurements, electro-acoustic tests and exhausting hours of listening. X02-02 crossovers configurable in over 100 tuning combinations, among the controls provided are phase shift, attenuation and cross-over frequency change. The Proaudio X02-02 are made with particular attention to the tuning method to achieve the best possible result and with the combination of Proaudio transducers they are perfect in every cabin and with any music genre listened to. They satisfy the personal idea of beautiful sound.

Proaudio C KIT16 Technical Specifications

Woofer C165

  • Basket: die-cast aluminum, black painted, scratch-resistant textured
  • Magnetic assembly: ferrite
  • Coil: copper winding, aluminum support
  • Coil diameter: 38 mm
  • Spider: Nomex Fabric
  • Suspension: butyl rubber
  • Cone: cellulose fibers treated with vinyl resins, water-repellent
  • Power handling: 130 Watt RMS | 260 Watt Max
  • Impedance: 4 ohm
  • Efficiency: 94 dB

Midrange C87

  • Basket: die-cast aluminum, black painted, scratch-resistant textured
  • Magnetic assembly: neodymium
  • Coil: copper winding, aluminum support
  • Coil diameter: 25 mm
  • Spider: Nomex Fabric
  • Suspension: butyl rubber
  • Cone: cellulose fibers treated with vinyl resins, water-repellent
  • Power handling: 80 Watt RMS | 160 Watt Max
  • Impedance: 4 ohm
  • Efficiency: 90 dB

Tweeter C26

  • Housing: aluminum, black painted, scratch-resistant textured
  • Magnet: Neodymium
  • Coil: aluminum alloy support, aluminum winding
  • Coil diameter: 25 mm
  • Suspension: Silk
  • Dome: Silk treated with low viscosity damping
  • Power handling: 80 Watt RMS | 160 Watt Max
  • Impedance: 6 ohm
  • Efficiency: 92 dB
  • Re: x.5.90 Ω
  • Fs: 1470.09 Hz
€ 799,00 Price incl. VAT
