C 165 F 165 mm midwoofer with reduced depth

Hertz
Your price:
€ 89,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
210 Watt
RMS Power
70 Watt
Frequency Response
65 - 4.500 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
43,5 mm
Woofer Material
Cellulosa e Mica

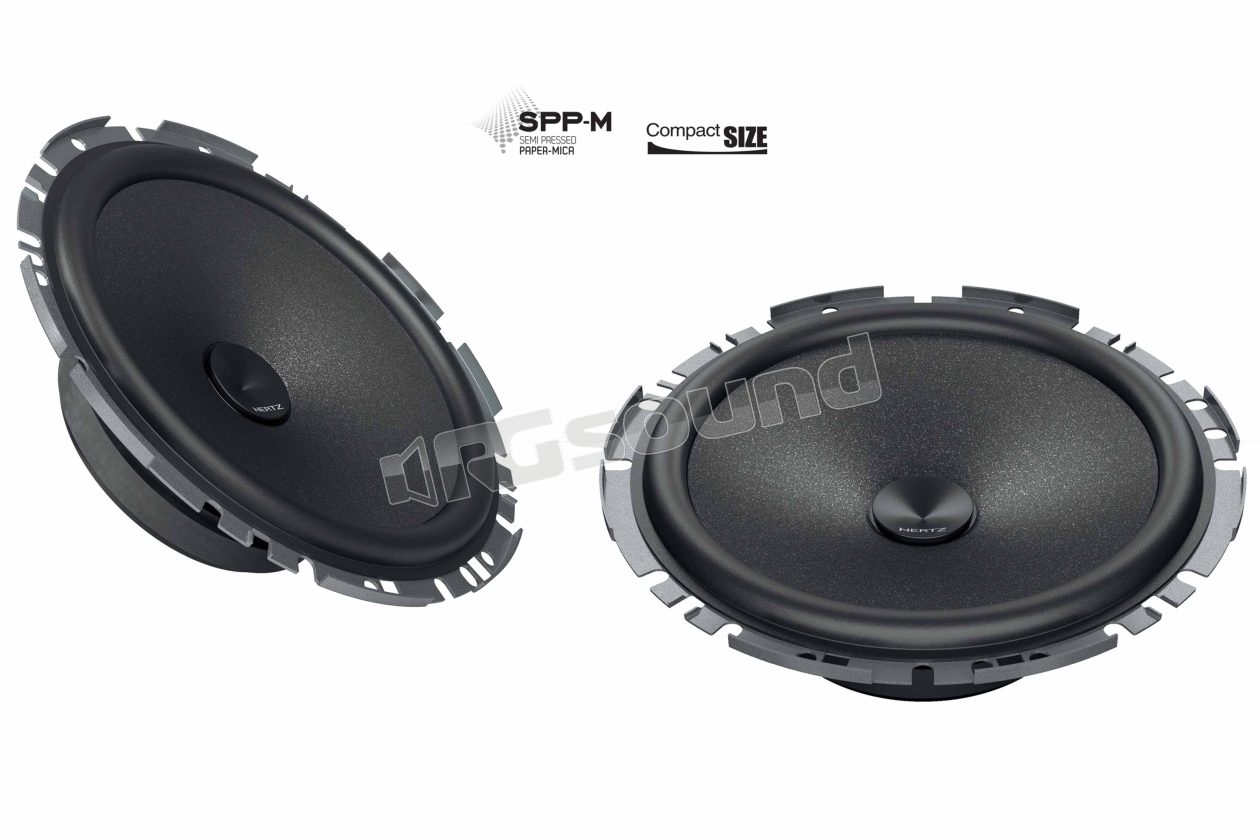

Hertz C 165 F Pair of 165 mm woofers with reduced depth (only 43mm) for easy replacement of factory speakers

The installation of aftermarket woofers in factory placements limited by reduced depth is a recurring problem that forces specialists to carry out complicated mechanical modifications, significantly prolonging job completion times. C 165 F is the solution, thanks to a super thin basket with reduced depth that allows use even in the most problematic OEM scenarios, widespread in new generation cars.

The research and development team, through an extensive design process, was able to achieve high performance even with the super thin design. This was made possible by optimizing the moving group excursion and the new cone geometry. Like the other components in the Cento range, the use of SPP-M (Semi-Pressed Paper-Mica) provides the C 165 F a cone that is light and rigid at the same time, ensuring high efficiency and extended frequency response.

C 165 F Features

  • Lowered profile for easy replacement of factory speakers.
  • Semi-pressed paper cone reinforced with mica powder for superior rigidity and homogeneous response.
  • High flux density ferrite magnet combined with low carbon content polar plates to reduce distortion at high power levels.
  • Pure copper voice coil, wound on an aluminum support, for excellent thermal and mechanical capacity.

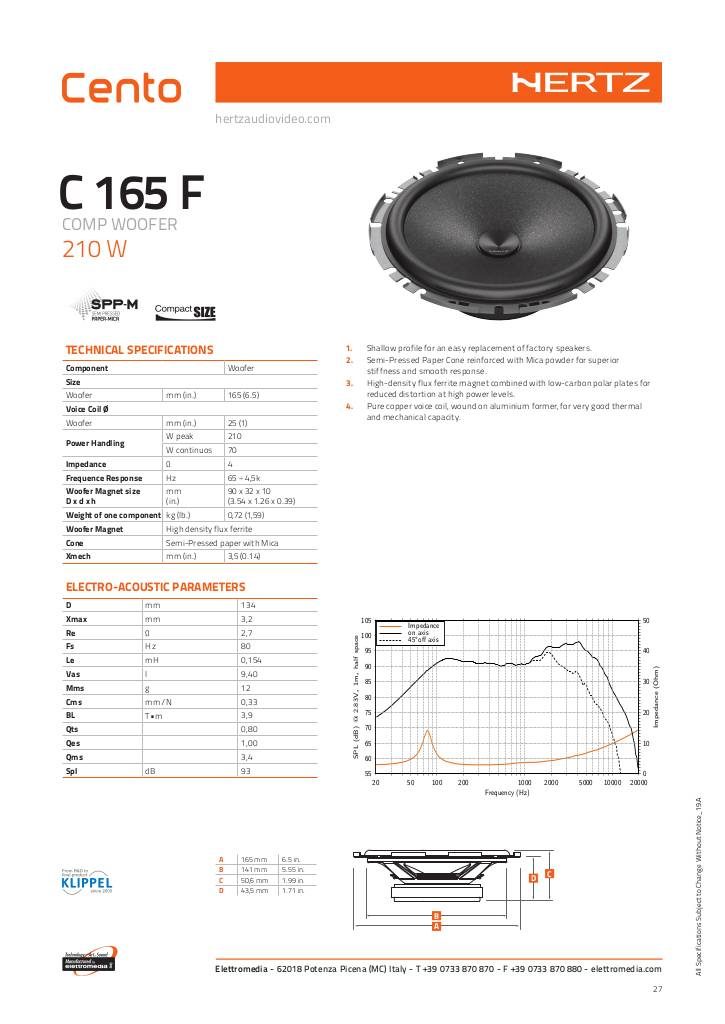

Scheda tecnica

n-20190923150934-hertz-c165f-tech-sheet-rev19a.pdf

Hertz C 165 F Technical Specifications

  • Size mm 165 (6.5")
  • Maximum power handling 210 W
  • Power handling 70 W RMS
  • Impedance 4 Ohm
  • Frequency response Hz 65 ÷ 4.5 kHz
  • Sensitivity dB SPL 93
  • Voice coil Ø mm (inches) 25"
  • Ferrite magnet with high density flux
  • Semi-pressed paper cone and dome with mica
€ 89,00 Price incl. VAT
