C 165 165mm Cento series woofer

Hertz
Your price:
€ 89,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
285 Watt
RMS Power
70 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Installation Depth
62,5 mm
Woofer Material
Cono Mica

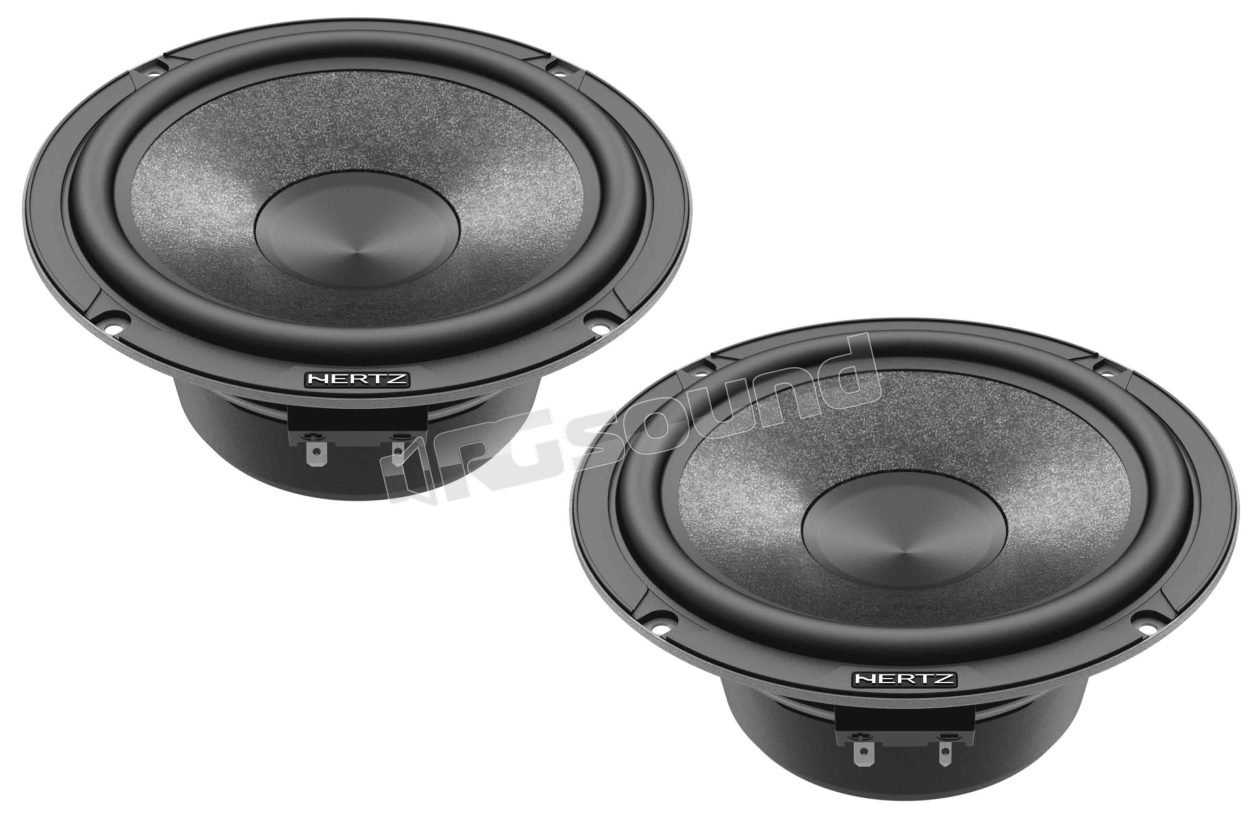

Hertz C 165 Pair of 16.5 cm Woofers Cento Series


With the cone created through extensive material characterization work, achieving SPP-M (Semi Pressed Paper-Mica) which preserves the natural sound of semi-pressed paper and enriches it with Mica powder that improves rigidity. Hertz Cento is the first step in the exciting world of high-level car audio listening.

Leveraging the advanced design methods employed in the flagship MILLE line, the electroacoustic design team has achieved top-tier performance, never before reached in this category, to offer you real added value. Thanks to carefully detailed design, Cento speakers maintain linear and controlled emission, even at the very high listening volumes required by younger enthusiasts.

C 165 Features

  • 165 mm (6.5 in.) semi-pressed paper SPP-M (Semi Pressed Paper-Mica) cone enriched with Mica powder for excellent balance between lightness and damping.
  • High flux density ferrite magnet combined with low carbon content polar plates for reduced distortion at high power levels.
  • 25 mm (1 in.) voice coil with aluminum former to ensure high excursion and power handling.
  • Compact three-spoke basket acoustically transparent combined with rubber magnet cover for total damping of spurious vibrations.
  • Elegant grille with high-strength ABS plastic structure with metallized finish combined with protective metal mesh.
  • Recommended amplifier power 70 Watt RMS (50 - 80 Watt actual with high-pass filter at 70 Hz).

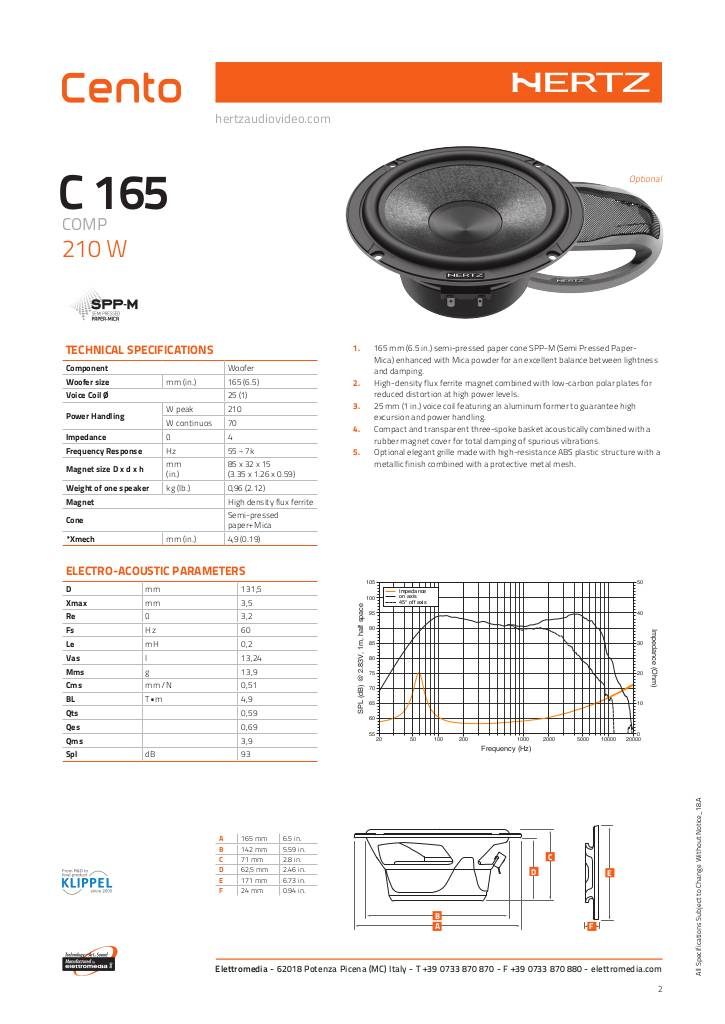

Scheda tecnica

n-20201215112606-hertz-cento-tech-sheet-c-165.pdf

Hertz C 165 Technical Specifications

  • Woofer
  • Dimensions mm (in.) 165 (6.5)
  • Power handling - continuous W 70
  • Power handling - Peak W 210
  • Impedance Ohm 4
  • Voice coil Ø 25 (1)
  • Frequency response Hz 55 ÷ 7k
  • Magnet dimensions D x d x h mm (in.) 85 x 32 x 15 (3.35 x 1.26 x 0.59)
  • Weight per speaker kg (lb.) 0.96 (2.12)
  • Magnet High flux density Ferrite
  • Cone Semi-pressed Paper + Mica
  • Xmech mm (in.) 4.9 (0.19)25 cm (10")
  • D mm 131.5
  • Re Ohm 3.2
  • Fs Hz 60
  • Le mH 0.2
  • Vas I 13.24
  • Mms g 13.9
  • Cms mm/N 0.51
  • BL T*m4.9
  • Qts 0.59
  • Qes 0.69
  • Qms 3.9
  • Spl dB 93
