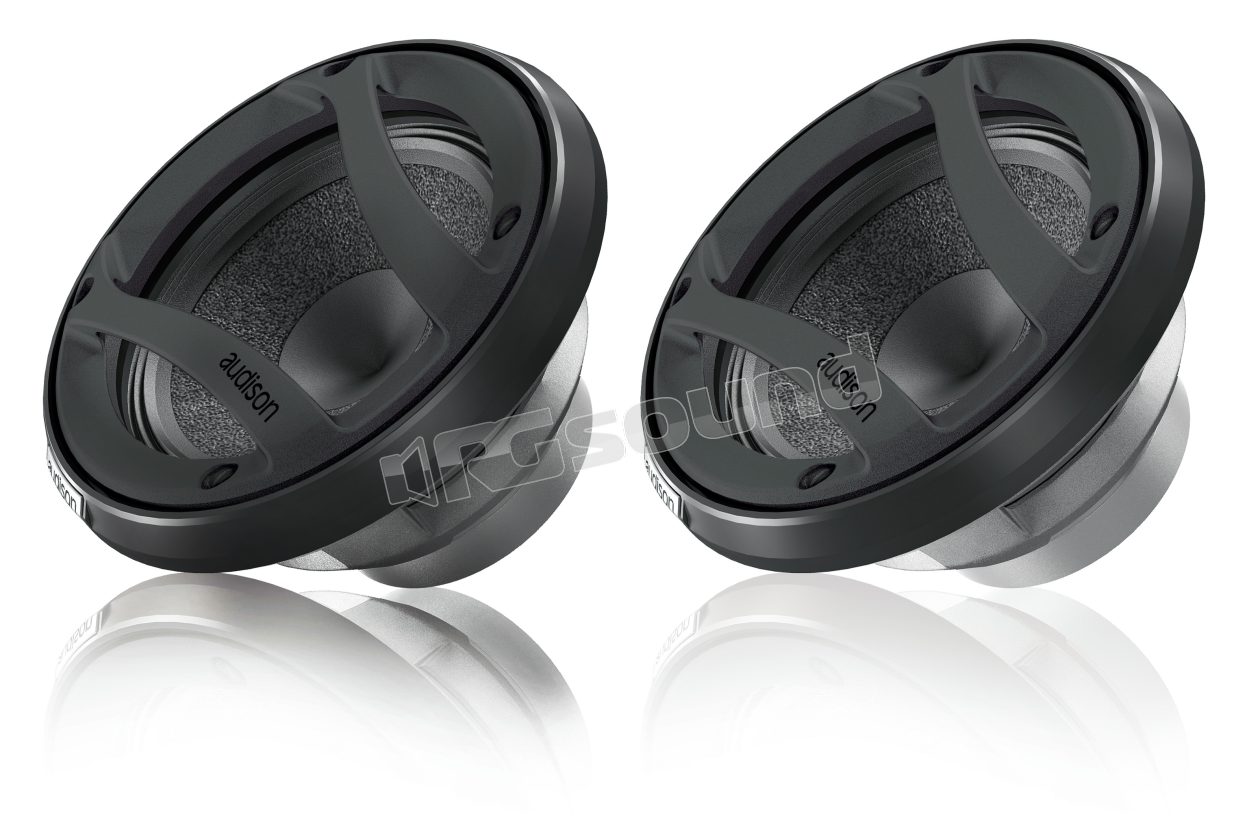

AV 3.0 Pair of 70mm Voce series midranges

Audison
Your price:
€ 149,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
70 mm
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
200 - 14000 Hertz
Sensitivity
93 dB
Impedance
93 Ohm
Weight
0,290 Kg
Installation Depth
37,5 mm
Midrange Cone Material
Cono in fibra di cellulosa e cotone, con trattamento smorzante “Light Damping”

Audison AV 3.0 Pair of 70mm midrange drivers Voce series

The AV 3.0 midrange drivers stand out for the use of a powerful neodymium magnet group, which guarantees high efficiency and sound reproduction that combines precision and dynamism. The neodymium magnet helps extend the frequency response, with flatter impedance, for even more accurate and detailed sound. The compact and versatile design of these midrange drivers makes them ideal for installations that require high performance without compromising space. The lightweight and compact structure allows optimal thermal management and quick response, even in the most demanding listening conditions.


The pressed paper cone with cotton fiber ensures linear response even in the presence of high power. The advanced radial ventilation system further improves power handling and component resistance, even in the most extreme conditions. The Triple Wave surround, exclusive to Audison, guarantees linear response, maintaining consistent performance over time. The voice coils, made of CCAW (Copper-Clad Aluminum Wire), are wound on a covering layer that increases efficiency and sound clarity. With the included grille and pure copper coating of the central rod, the AV 3.0 midrange drivers offer greater reliability, ensuring a wide and well-defined frequency response, for a highest quality sound experience.


AV 3.0 Features

  • The aerodynamic basket ray profile, together with the open-sky design, guarantees a drastic reduction of reflections.
  • The exclusive Triple Wave surround profile and selected materials guarantee full linearity and reliable performance in extreme conditions.
  • Extremely lightweight and compact, the CCAW (Copper-Clad Aluminum Wire) voice coils wound on the covering layer provide very high efficiency and clean, dynamic sound.
  • Pressed paper cone in cotton fiber with light
  • Damping treatment.
  • The radial ventilation system guarantees high capacity, power handling and reliability.
  • High flux density neodymium magnet, for flatter impedance and extended frequency response.
  • The central rod is covered with a pure copper sleeve coating to provide linear impedance and wide frequency response.

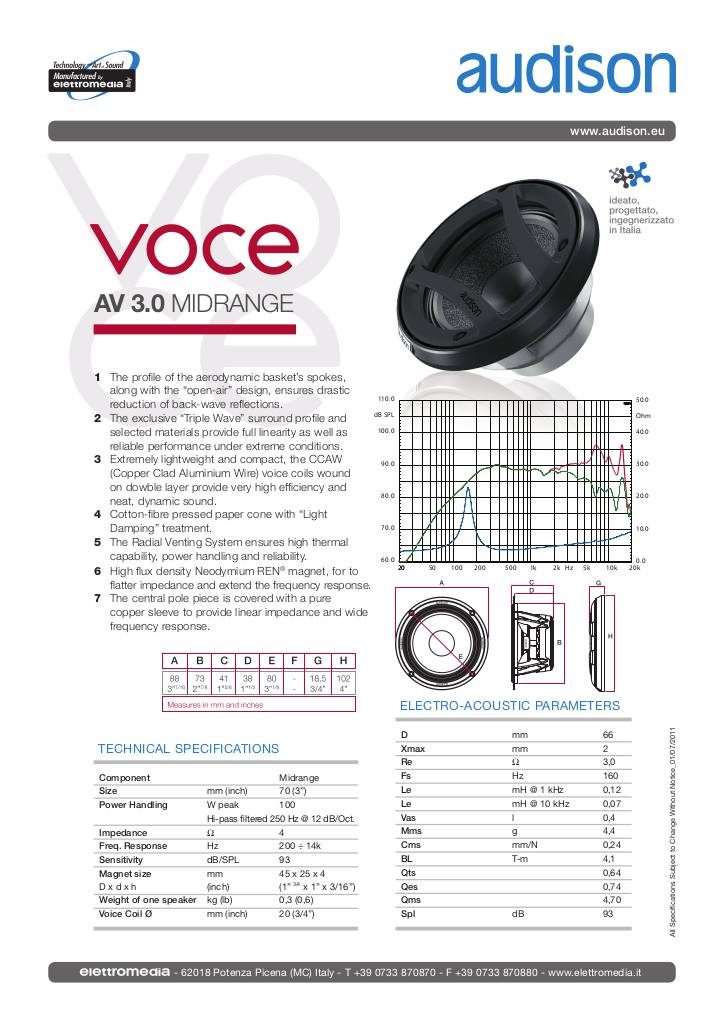

Scheda tecnica

n-20250114115526-scheda-tecnica-av-3-0.pdf

Audison AV 3.0 Technical Specifications

  • Nominal diameter 70 mm
  • Impedance 4 Ohm
  • Power handling - Peak 100 W
  • Power handling - continuous 50 W
  • Sensitivity 93 dB
  • Frequency response 200 ÷ 14k Hz
  • Voice coil Ø 20 mm
  • Magnet material NEODYMIUM
  • Magnet dimensions D x d x h 45 x 25 x 4 mm (in.)
  • Voice coil material CCAP - Copper-clad aluminum tape
  • Xmax 2 mm
€ 149,00 Price incl. VAT
