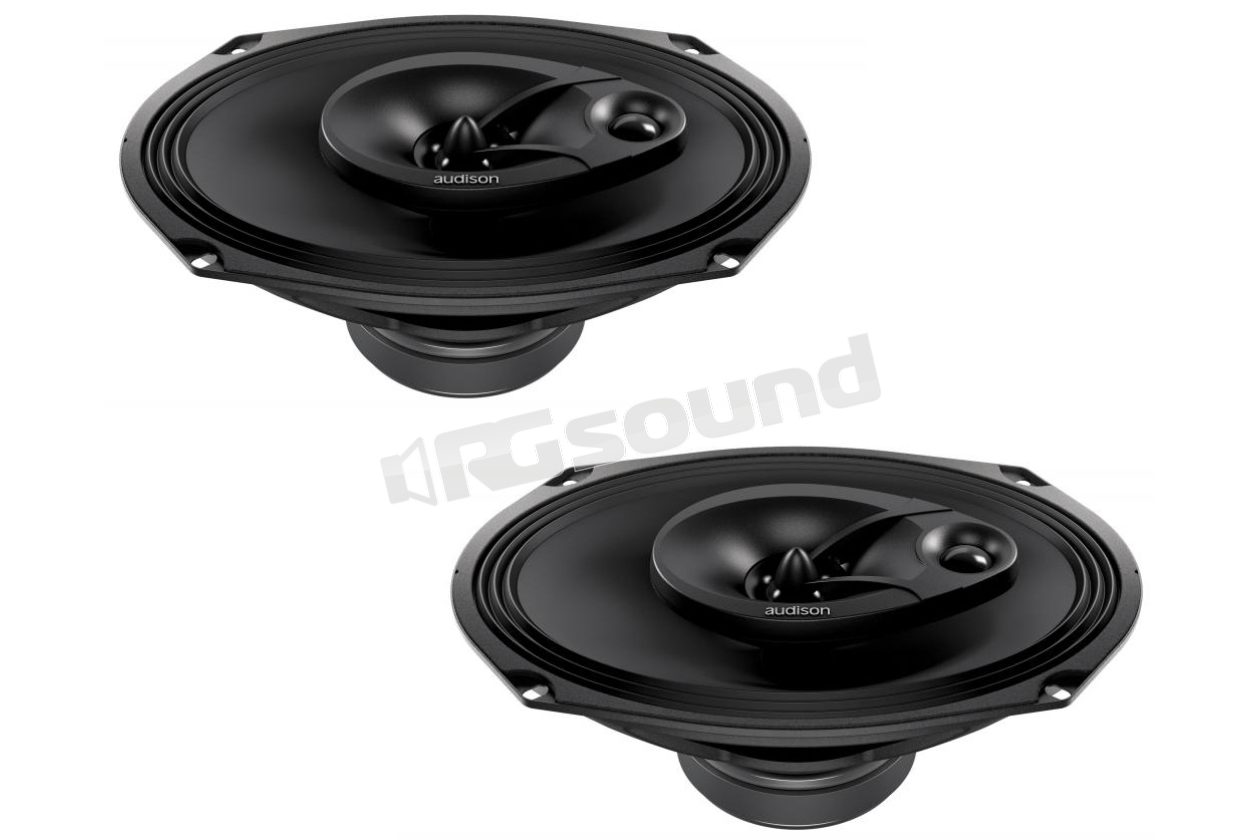

APX 690 Pair of 6x9" three-way coaxial speakers

Audison
Your price:
€ 139,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
3-way
Frequency Response
40 - 23.000 Hertz
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
96 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Audison APX 690 Pair of coaxial 6x9" three-way speakers

With the Prima speaker line, the Audison development team set themselves a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with lengthy listening sessions that brought the speakers to a level of performance that was believed to be unreachable in OEM Integration.

APX 690 Features

  • Horn-loaded tweeter: 40 mm dome tweeter horn-loaded contributing to its incredible efficiency, up to 96 dB SPL.
  • Acoustic lens applied to the tweeter, specifically designed to increase dispersion in the high frequency range.
  • PEI (injected polyethylene) super tweeter employed to reinforce the emission of very high frequency ranges otherwise affected by off-axis positioning common to rear deck installations.
  • Cone in water-repellent treated paper, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel scanning vibrometer.
  • Voice coil in pure copper, wound on a Kapton support, to improve thermal and mechanical capacity.
  • TPU (thermoplastic polyurethane) surround with exclusive "triple wave" profile for maximum excursion linearity.
  • Spider material in polycotton that ensures reliable performance and linear response to musical transients.
  • Large motor assembly, optimized with the FEM (Finite Element Method) for stable control and linear excursion.
  • Low carbon plates for maximum magnetic permeability and high heat dissipation.
  • Compact basket, protected by abrasion protection and scratch-resistant coating, the motor has been fixed with damping epoxy adhesive.
  • High-current fast-on terminal with temperature-resistant plastic to protect it from accidental short circuits.
  • Developed with the KLIPPEL suite.

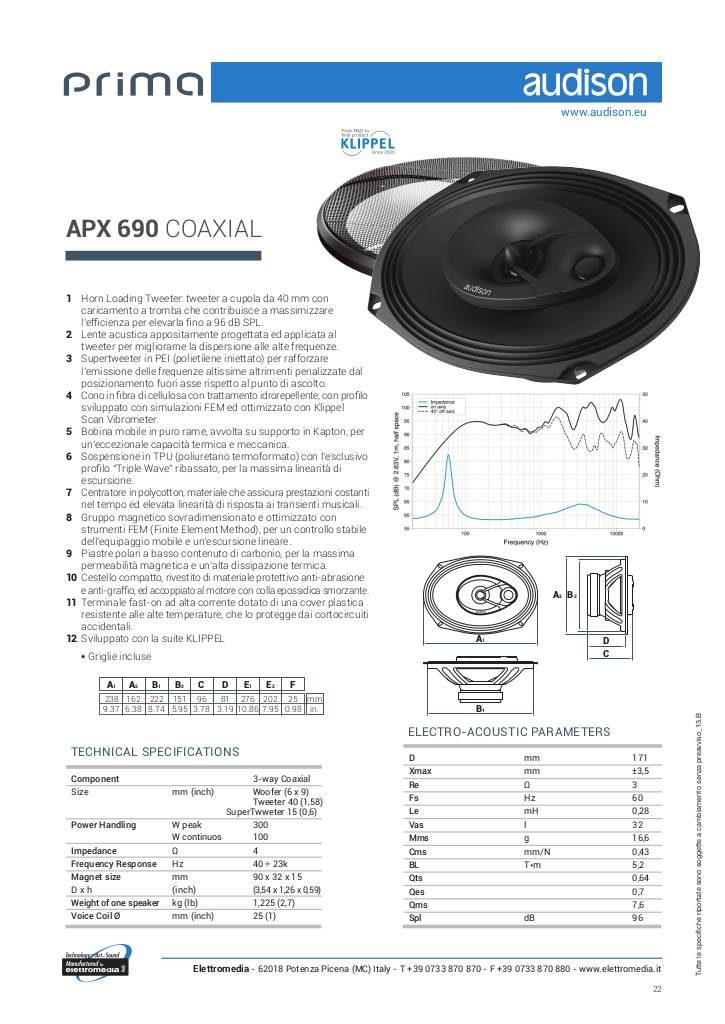

Scheda tecnica

20140211155908-apx-690-scheda-tecnica.pdf

Manuale utente

20140211155908-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison APX 690 Technical specifications

  • Woofer size 690 mm
  • Impedance 4 Ohm
  • Peak power 300 W
  • Power handling - continuous 100 W
  • Elliptical size 6 x 9
  • Sensitivity 96 dB
  • Frequency response 40 - 23k
  • Voice coil diameter 25 mm (0.79 inches)
  • Magnet size 90 x 32 x 15
  • Xmax 3.5 mm (0.98 in)

HF Technical specifications

  • Tweeter size 40 mm (1.57")
  • Voice coil diameter 20 mm (0.79")
  • Super tweeter size 15
  • Electrical-acoustic specifications
  • Re 3.2 Ohm
  • Fs 60 Hz
  • Mms 16.6 g (0.59 oz)
  • Cms 0.5
  • Bl 5.3
  • Qms 6.7
  • Qes 0.7
  • Qts 0.6
  • Vas 36 l (1.27 ft)
  • LE 0.2 mH

General

  • Weight 1.225 kg
  • Elliptical B1 222 mm
  • Elliptical B2 151 mm
  • Elliptical size A1 238 mm
  • Elliptical size A2 162 mm
€ 139,00 Price incl. VAT
