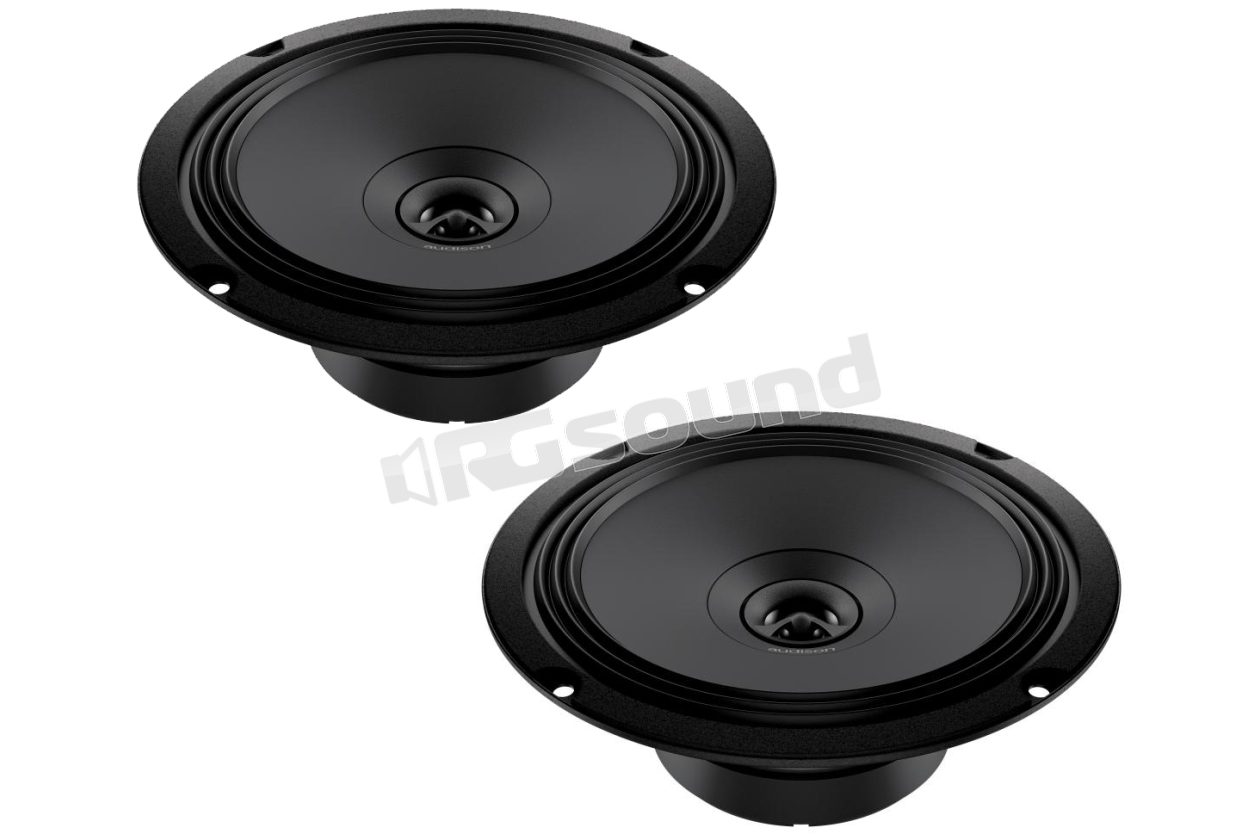

APX 6.5 Pair of 165mm two-way coaxial speakers

Audison
Your price:
€ 97,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
60 - 23.000 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Audison APX 6.5 Pair of two-way coaxial speakers 165mm

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the strict requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with long listening sessions that brought the speakers to a level of performance that was believed to be unreachable in OEM Integration.

APX 6.5 Features

  • Concentric coaxial tweeter: the tweeter is mounted inside the woofer with a single emission point that provides constant emission.
  • Phase response, with accurate recreation of the soundstage comparable to that of a component system.
  • The tweeter is equipped with a purposely designed acoustic lens to ensure an extremely linear frequency response, even off-axis.
  • Pure copper voice coil 32 mm, for high power handling.
  • Overall mounting depth optimized for OEM integration thanks to the concentric tweeter and low-profile basket.
  • Paper cone treated with water-repellent properties, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel scanning vibrometer.
  • TPU (thermoplastic polyurethane) suspension with exclusive "triple wave" profile for maximum excursion linearity.
  • Compact basket, protected by anti-abrasive protection and scratch-resistant coating, the motor was fixed with damping epoxy adhesive.
  • Quick-connect high-current terminal with dual contact on positive and negative poles for high flexibility and quick connection.
  • The terminal is equipped with a temperature-resistant plastic cover that protects against accidental short circuits.
  • Developed with KLIPPEL suite

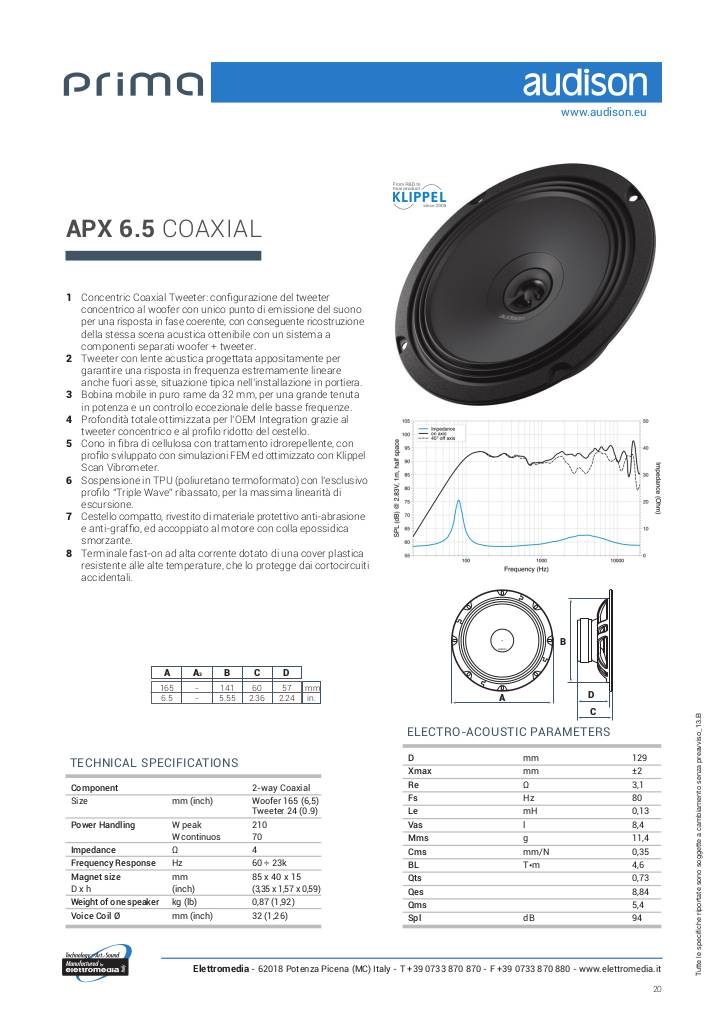

Scheda tecnica

20140211155537-apx-65-scheda-tecnica.pdf

Manuale linea Prima

20140211155537-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison APX 6.5 Technical Specifications

  • Woofer size 165 mm (6.5 inches)
  • Impedance 4 Ohm
  • Power handling - Peak 210 W
  • Power handling - continuous 70 W
  • Frequency response 60 ÷ 23k
  • Voice coil diameter 32 mm (0.59 inches)
  • Magnet size 85 x 40 x 15
  • Xmax 2 mm (1.26")
  • Weight 0.87 kg

HF Technical Specifications

  • Tweeter size 24 mm (0.94 in)
  • Sensitivity 94 dB
  • Voice coil diameter 15 mm (0.59 in)

Electrical-acoustic Specifications

  • Re 3.1 Ohm
  • Fs 80 Hz
  • Mms 11.5 g (0.41 oz)
  • Cms 0.33
  • Bl 4.6
  • Qms 5.4
  • Qes 0.84
  • Qts 0.73
  • Vas 8.1 l (0.29 ft)
  • LE 0.1 mH
