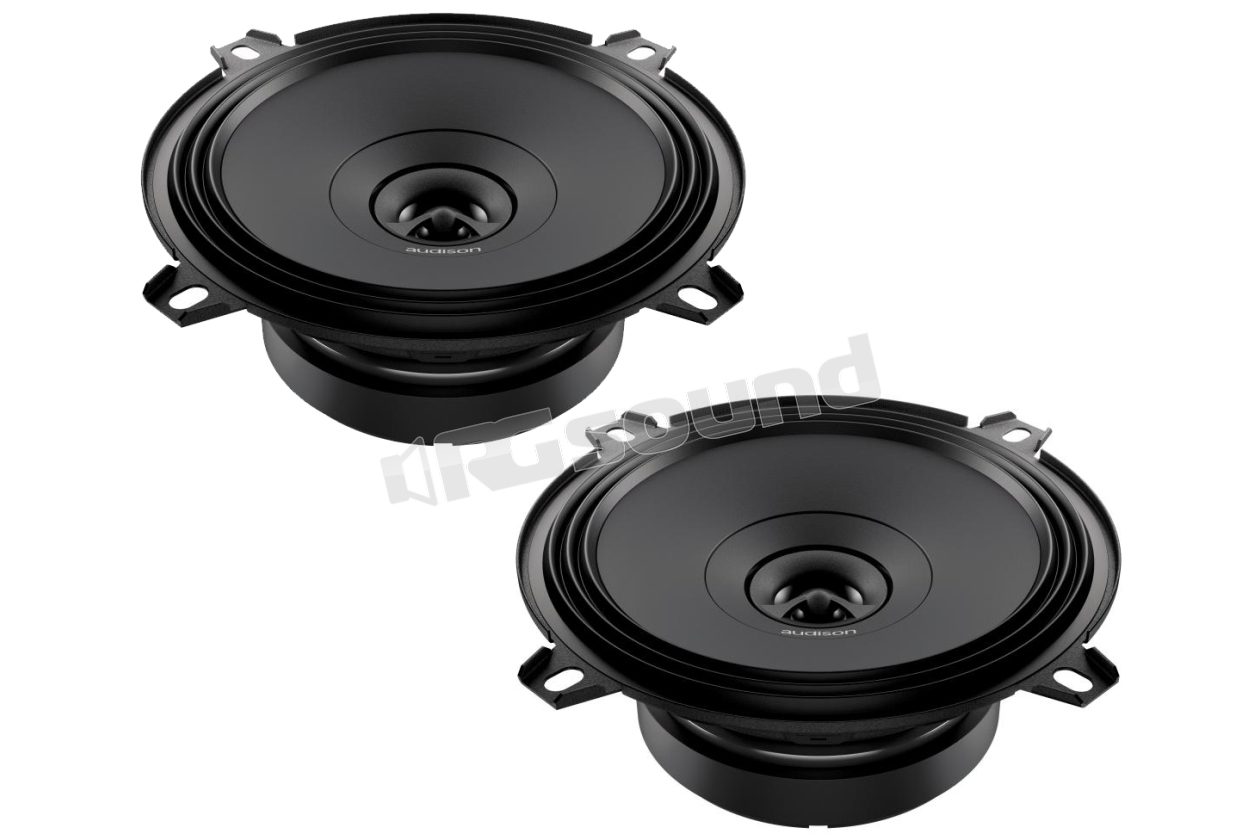

APX 5 Pair of 130mm two-way coaxial speakers

Audison
Your price:
€ 97,90
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
70 - 23.000 Hertz
MAX Power
150 Watt
RMS Power
50 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Audison APX 5 Pair of 130mm two-way coaxial speakers

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with long listening sessions that brought the speakers to a level of performance that was thought to be unattainable in OEM Integration.

APX 5 Features

  • Concentric coaxial tweeter: the tweeter is mounted inside the woofer with a single emission point that provides consistent emission.
  • Phase response, with accurate recreation of the soundstage comparable to that of a component system.
  • The tweeter is equipped with a specially designed acoustic lens to ensure extremely linear frequency response, even off-axis.
  • 32 mm pure copper voice coil, for high power handling.
  • Overall mounting depth optimized for OEM integration thanks to the concentric tweeter and low-profile basket.
  • Paper cone with water-repellent treatment, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel scanning vibrometer.
  • TPU (thermoplastic polyurethane) suspension with exclusive "triple wave" profile for maximum excursion linearity.
  • Compact basket, protected by anti-abrasive protection and scratch-resistant coating, the motor has been secured with damping epoxy adhesive.
  • High-current quick-release terminal with dual contact on positive and negative poles for high flexibility and quick connection.
  • The terminal is equipped with a temperature-resistant plastic cover that protects against accidental short circuits.
  • Developed with the KLIPPEL suite

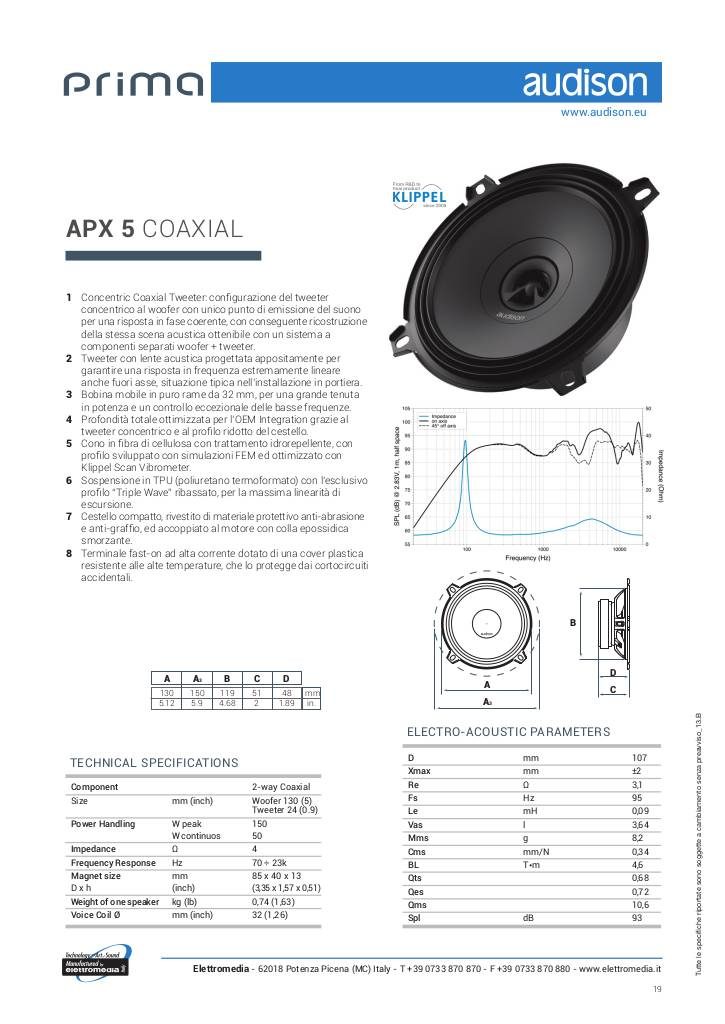

Scheda tecnica

20140211155151-apx-5-scheda-tecnica.pdf

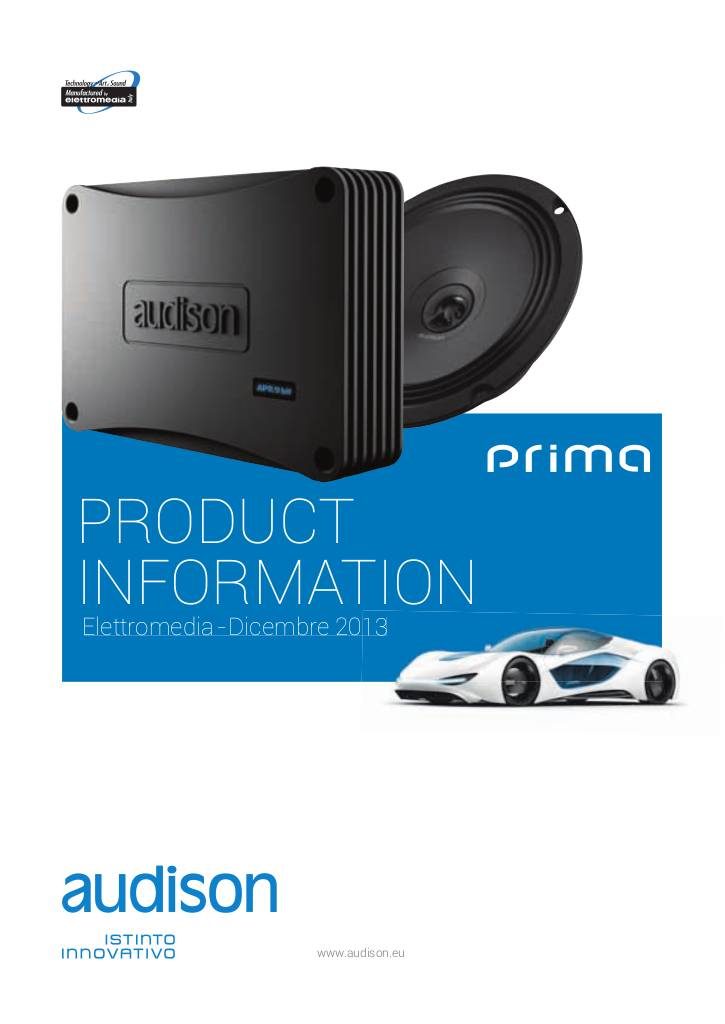

Manuale linea Prima

20140211155151-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison Audison APX 5 Technical Specifications

  • Woofer size 130 mm (5 inches)
  • Impedance 4 Ohm
  • Power handling - Peak 150 W
  • Power handling - continuous 50 W
  • Sensitivity 93 dB
  • Frequency response 70 ÷ 23k
  • Voice coil diameter 32 mm (0.59 inches)
  • Magnet size 85 x 40 x 13
  • Xmax 2 mm (1.26 inches)
  • Weight 0.74 kg

HF Technical Specifications

  • Tweeter size 24 mm (0.94 in)
  • Voice coil diameter 15 mm (0.59")

Electrical-Acoustic Specifications

  • Re 3.1 Ohm
  • Fs 90 Hz
  • Mms 8.2 g (0.29 oz)
  • Cms 0.33
  • Bl 4.6
  • Qms 10.6
  • Qes 0.75
  • Qts 0.7
  • Vas 3.8 l (0.13 ft)
  • LE 0.07 mH
€ 97,90 Price incl. VAT
