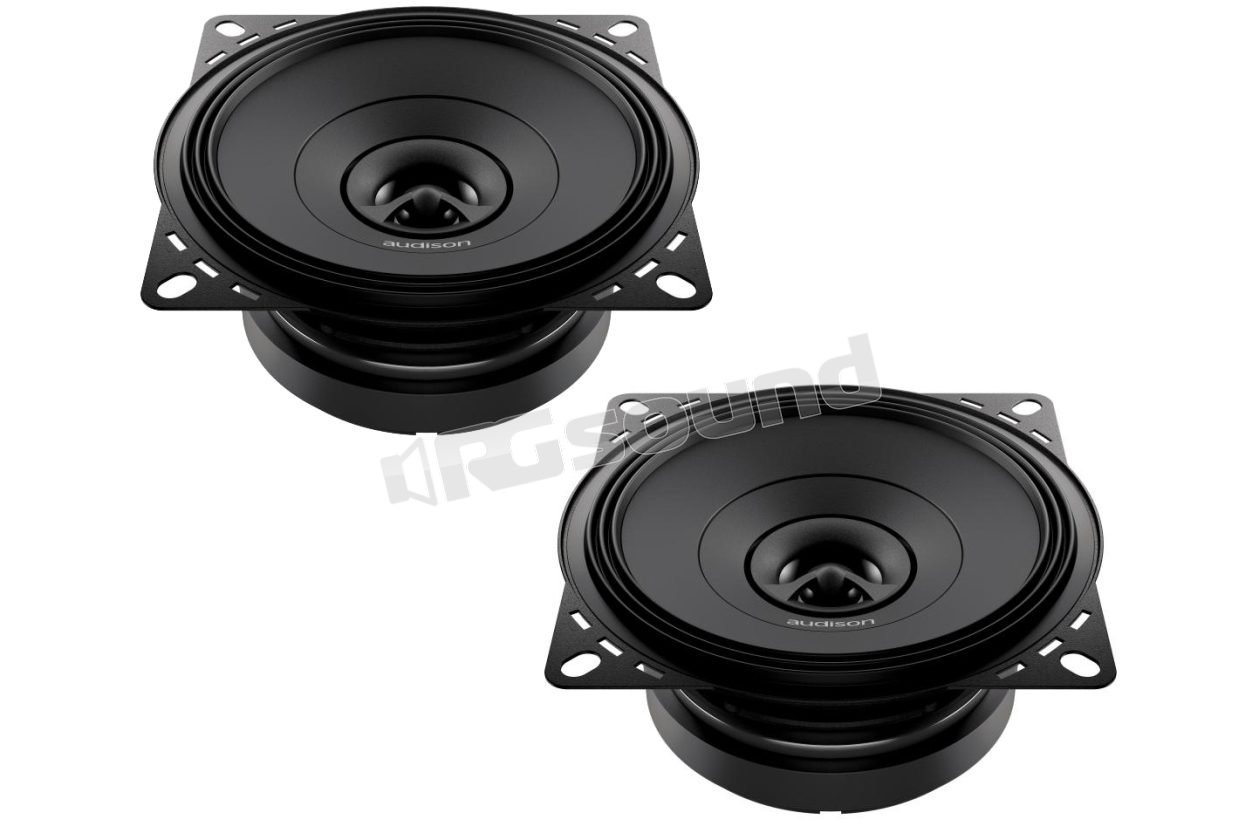

APX 4 Pair of 100 mm two-way coaxial speakers

Audison
Your price:
€ 86,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
80 - 23.000 Hertz
MAX Power
120 Watt
RMS Power
40 Watt
Sensitivity
91 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Audison APX 4 Pair of 100 mm two-way coaxial speakers

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with long listening sessions that brought the speakers to a level of performance that was thought to be unattainable in OEM Integration.

APX 4 Features

  • Concentric coaxial tweeter: the tweeter is mounted inside the woofer with a single emission point that provides consistent emission. Phase response, with accurate recreation of the soundstage comparable to that of a component system.
  • The tweeter is equipped with an acoustic lens specially designed to ensure an extremely linear frequency response, even off-axis.
  • 32 mm pure copper voice coil, for high power handling.
  • Overall mounting depth optimized for OEM integration thanks to the concentric tweeter and low-profile basket.
  • Paper cone treated with water-repellent properties, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel scanning vibrometer.
  • TPU (thermoplastic polyurethane) suspension with exclusive "triple wave" profile for maximum stroke linearity.
  • Compact basket, protected by an abrasion-resistant and scratch-resistant coating, motor fixed with damping epoxy adhesive.
  • Quick-disconnect high-current terminal with dual contact on positive and negative poles for high flexibility and quick connection.
  • The terminal is equipped with a temperature-resistant plastic cover, protecting it from accidental short circuits.
  • Developed with the KLIPPEL suite

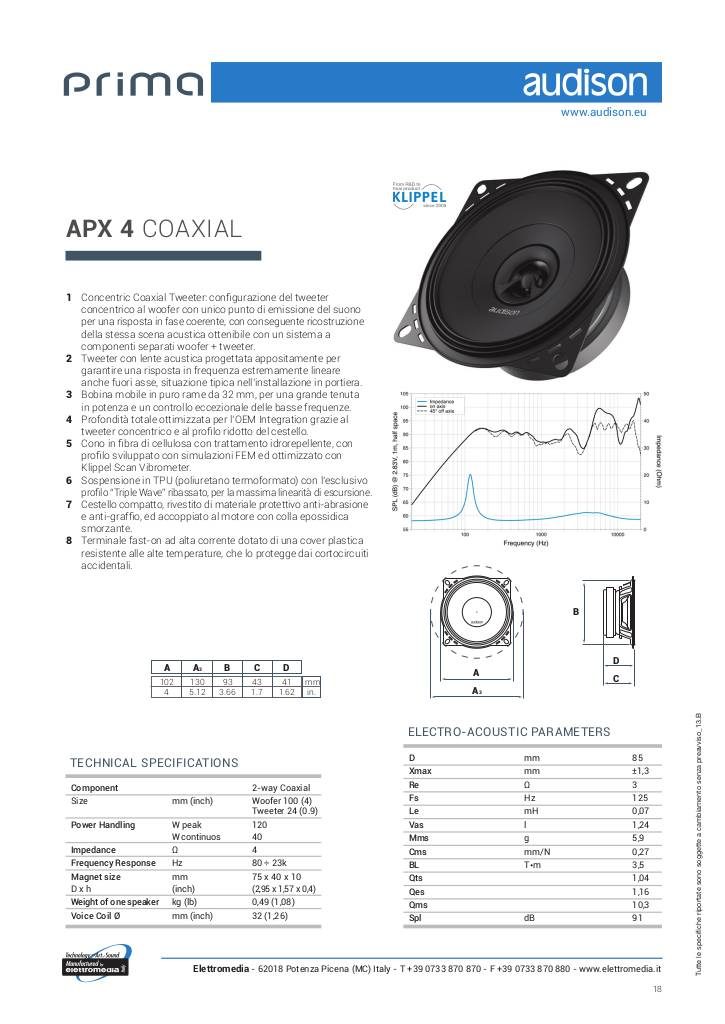

Scheda tecnica

20140211154956-apx-4-scheda-tecnica.pdf

Manuale linea Prima

20140211154956-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison APX 4 Technical Specifications

  • Woofer size 100 mm
  • Impedance 4 Ohm
  • Peak power 120 W
  • Continuous power handling 40 W
  • Sensitivity 91 dB
  • Frequency response 80 ÷ 23k
  • Voice coil diameter 32 mm (0.59 inches)
  • Magnet size 75 x 40 x 10
  • Xmax 1.3 mm (1.26 inches)
  • Weight 0.49 kg

HF Specifications

  • Tweeter size 24 mm (0.94 in)
  • Voice coil diameter 15 mm (0.59 in)

Electrical-Acoustic Specifications

  • Re 3.1 Ohm
  • Fs 125 Hz
  • Mms 5.3 g (0.19 oz)
  • Cms 0.3
  • Bl 3.2
  • Qms 8
  • Qes 1.2
  • Qts 1
  • Vas 1.5 l (0.05 ft)
  • LE 0.04 mH
