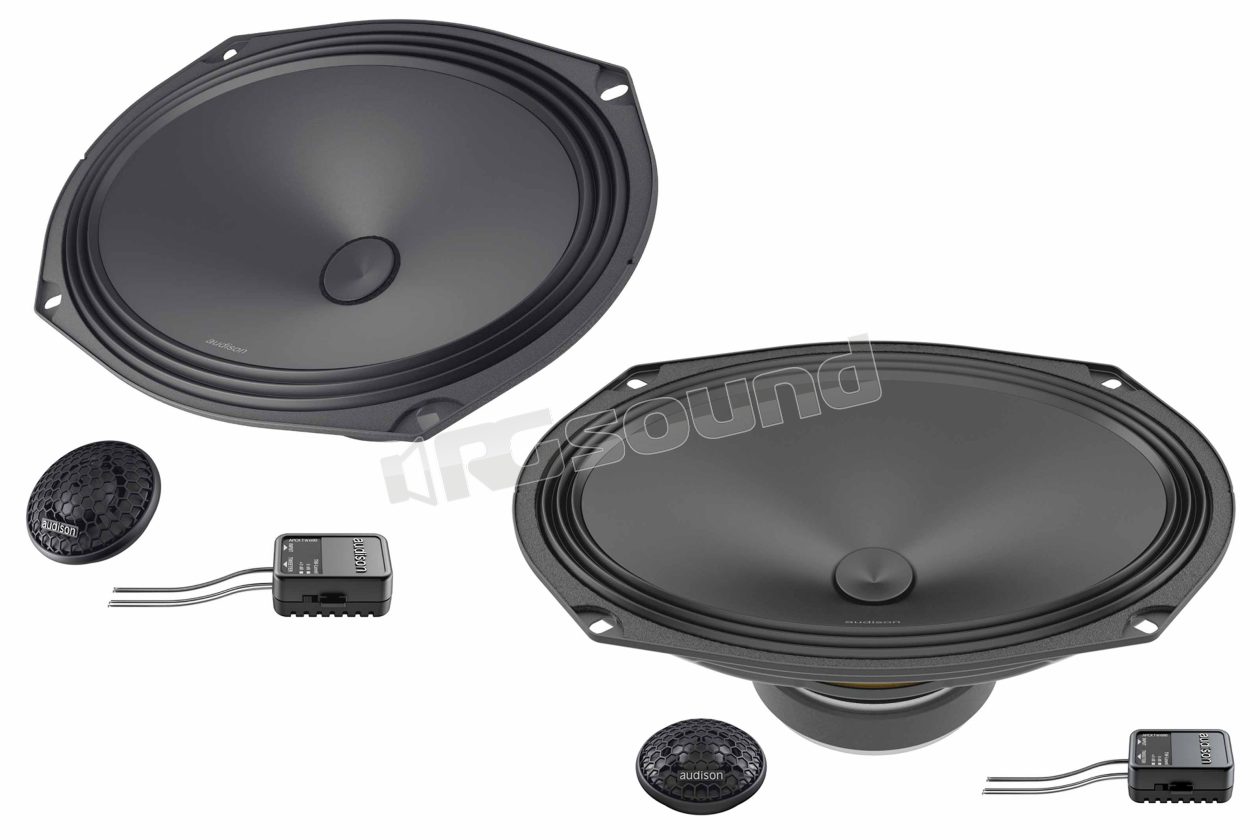

APK 690 Speaker system with 6×9" woofers, tweeters and dedicated crossovers

Audison
Your price:
€ 169,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
40 - 20.000 Hertz
Woofer Size
150x230 mm
Tweeter Size
26 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
95 dB
Impedance
4 Ohm
Woofer Material
Cono idrorepellente

Audison APK 690 Speaker system with 6×9" woofer, tweeter and dedicated crossover

Ideal for car models with elliptical speakers in the door. The crossovers are ultra-compact to facilitate their installation and include an output level attenuation of the tweeter for exceptional fine tuning. The R & D team has optimized the electroacoustic parameters of the new woofers for installation in the vehicle door, respecting all the characteristics of the Prima speakers, such as the compact basket size to facilitate installation.

The mechanical cutting of the woofers ensures that they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power and impeccable control even in the most aggressive dynamic transients. The dual Faston connectors with direct connection to the tweeter speeds up the speaker connection, always guaranteeing perfect contact.

APK 690 Components

  • AP 1 Tweeter
    • Diaphragm with a diameter of 26 mm combined with a wide winding provides maximum efficiency and reduced resonance frequency.
    • Acoustic lenses designed to compensate the frequency in-car response in the bandwidth 10kHz - 13kHz caused by critical OEM fittings.
  • AP 690 Woofer
    • Pure copper voice coil 25 mm, for maximum power and exceptional low frequency handling control.
    • Paper cone with water-repellent treatment, with profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R & D Scan vibrometer.
    • Reduced mounting depth, which simplifies installation in OEM fittings.
    • "Triple Wave" surround profile for maximum excursion linearity. Compact basket, protected from abrasion resistant and scratch-resistant coating, the motor fixed with damping epoxy adhesive.
    • High current quick terminal with dual positive contact and negative poles for high flexibility and quick connection.
  • APCX TW 690 Crossover
    • Optimized for OEM integration with attenuation switch (0 dB, + 3dB) to tune the in-car response based on different installation conditions.
    • Supplied with quick connectors that eliminate any possible connection errors.

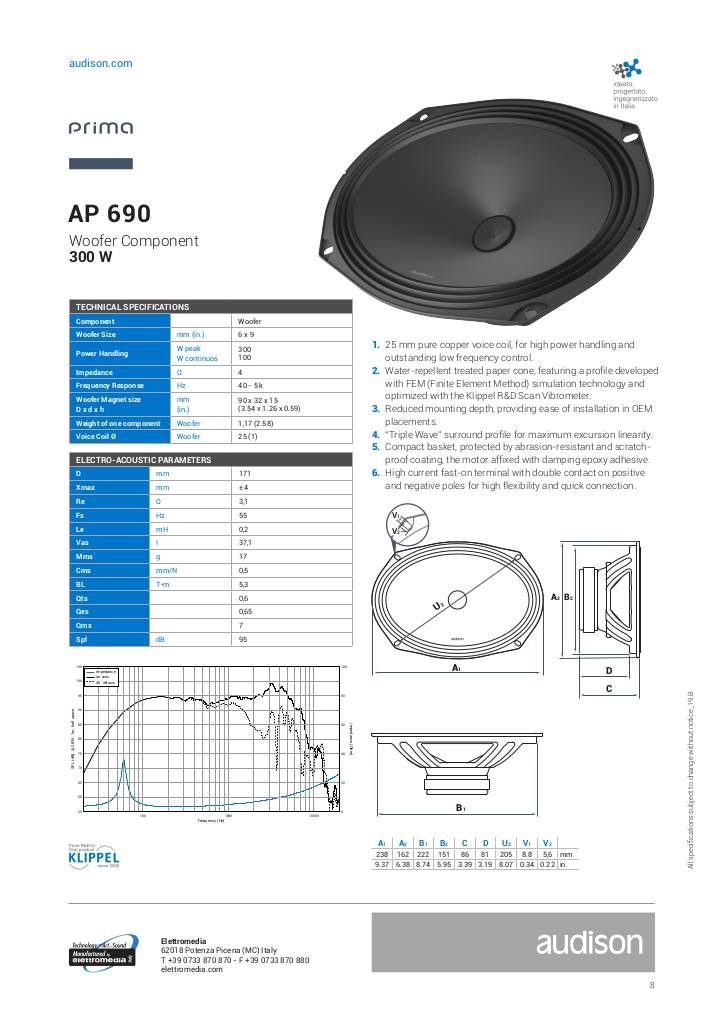

Scheda tecnica

n-20190314164326-audison-prima-ap690-tech-sheet-1.pdf

Audison APK 690 Technical specifications

  • 2-way Component System
  • Woofer size 6 x 9"
  • Tweeter size 26 mm (1")
  • Admissible power 300 W peak / 100 W continuous
  • Impedance Ω 4
  • Frequency response Hz 40 - 20 k
  • Crossover type HP 6 dB Oct - 3.3 kHz
  • Woofer magnet size D x d x h 90 x 32 x 15 mm
  • Tweeter magnet size mm 19 x 3 mm

Component weight

  • Woofer 1.17 Kg (2.58 lb)
  • Tweeter 0.04 Kg (0.09 lb)

Voice coil diameter

  • Woofer 25 mm (1")
  • Tweeter 20 mm (0.78")
€ 169,00 Price incl. VAT
