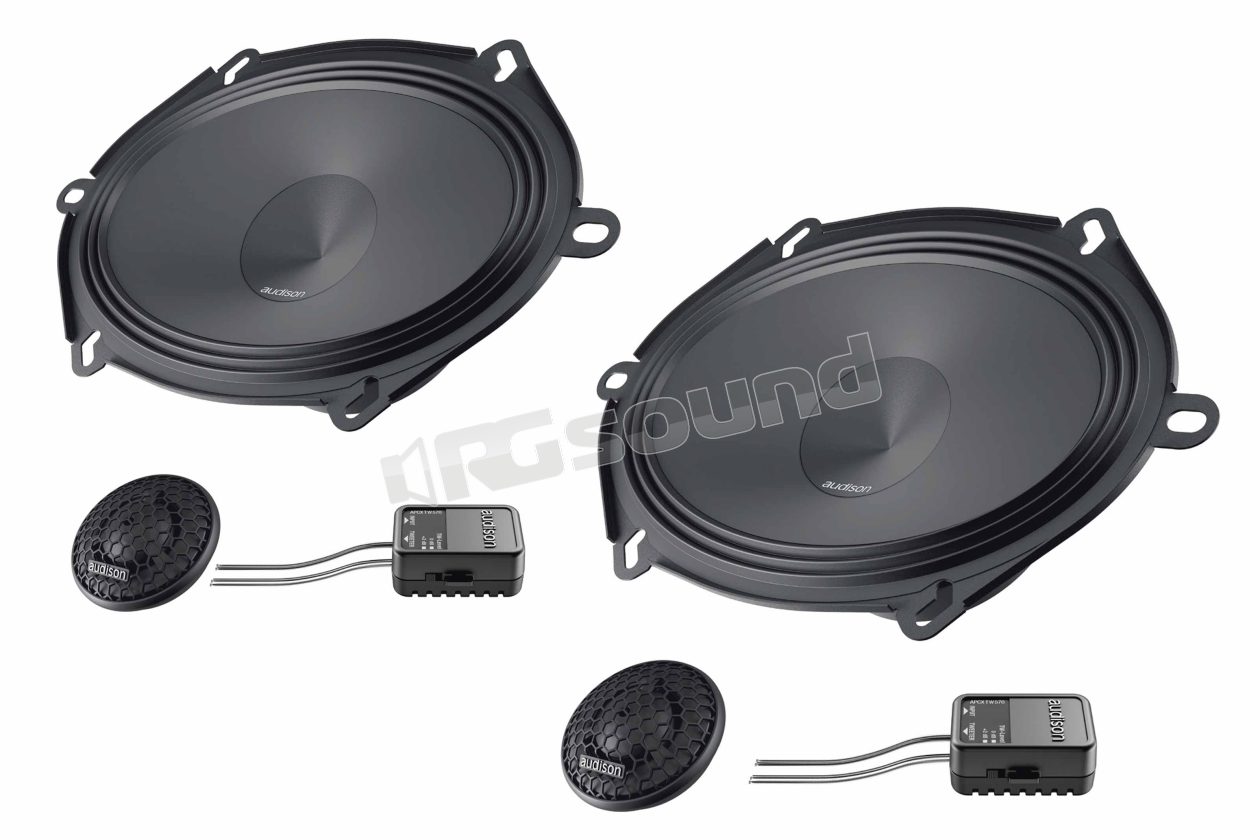

APK 570 Speaker kit with 5×7" woofer, dedicated tweeter and crossover

Audison
Your price:
€ 159,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
55 - 20.000 Hertz
Woofer Size
130x180 mm
Tweeter Size
26 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
93 dB
Impedance
4 Ohm

Audison APK 570 Speaker Kit with 5×7" Woofer, Dedicated Tweeter and Crossover

A speaker system composed of a pair of 5×7" woofers, a pair of AP 1 tweeters and dedicated APCX TW 570 crossovers. Ideal for car models with elliptical door speakers.

The crossovers are ultra-compact to facilitate their installation and include an attenuation of the tweeter output level for exceptional fine tuning. The R & D team has optimized the electroacoustic parameters of the new woofers for installation in the vehicle door, respecting all the characteristics of the Prima diffusers, such as the compact basket dimensions to facilitate installation.

The mechanical cut of the woofers ensures that they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power and impeccable control even in the most aggressive dynamic transients. The dual Faston connectors with direct connection to the tweeter speeds up the connection of the speakers, always guaranteeing a perfect contact.

APK 570 Components

  • Tweeter AP 1
    • 26 mm diameter diaphragm combined with a wide winding provides maximum efficiency and reduced resonance frequency.
    • Acoustic lenses designed to compensate for the frequency in-car response in the bandwidth 10kHz - 13kHz caused by critical OEM mounts.
  • Woofer AP 570
    • Pure copper voice coil 32 mm, for high power and exceptional handling low frequency control.
    • Hydrophobic treated paper cone, with profile developed using FEM (Finite Element Method) simulation technology and optimized with the Klippel R & D Scan vibrometer.
    • Reduced mounting depth, which simplifies installation in OEM mounts.
    • "Triple Wave" surround profile for maximum excursion linearity.
    • Compact basket, protected by abrasion resistant and scratch-resistant coating, the motor fixed with damping epoxy adhesive.
    • High-current quick terminal with dual positive contact and negative poles for high flexibility and quick connection.
  • Crossover APCX TW 570
    • Optimized for OEM integration with attenuation switch (0 dB, +2dB) to tune the in-car response based on different installation conditions.
    • Supplied with quick connectors that eliminate any possible connection errors.

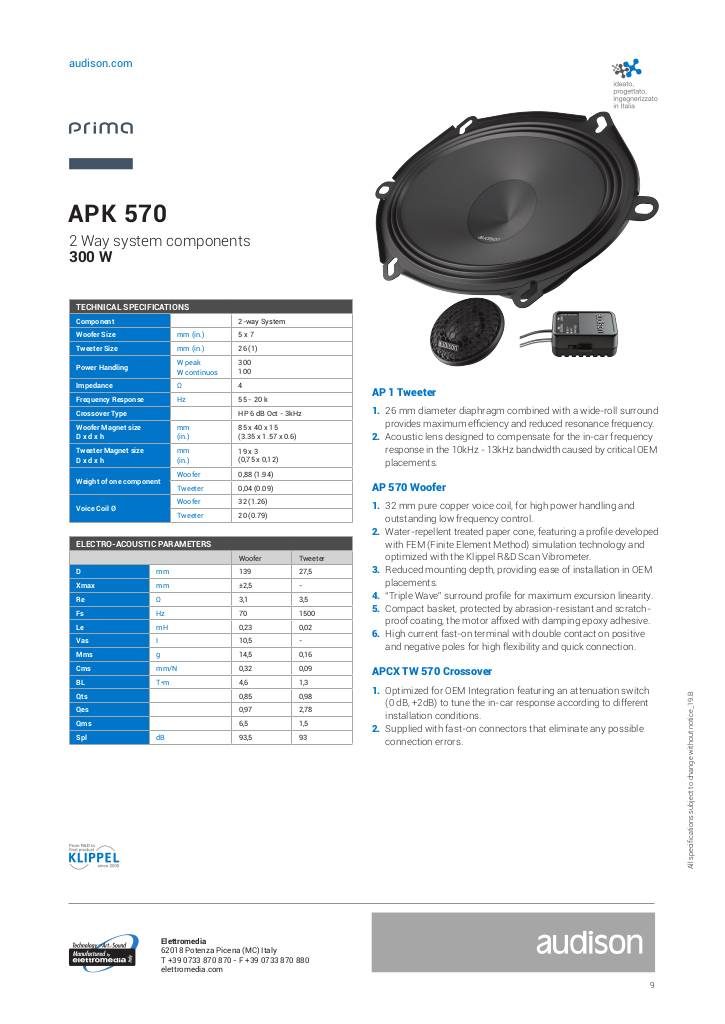

Scheda tecnica

n-20190314164311-audison-prima-apk570-tech-sheet.pdf

Audison APK 570 Technical Specifications

  • 2-way Component System
  • Woofer dimensions mm (in.) 5 x 7
  • Tweeter dimensions mm (in.) 26 (1)
  • Power handling 300 W peak / 100 W continuous
  • Impedance Ω 4
  • Frequency response Hz 55 - 20 k
  • Crossover type HP 6 dB Oct - 3kHz
  • Woofer magnet dimensions D x d x h mm 85 x 40 x 15
  • Tweeter magnet dimensions mm 19 x 3
  • Spl dB 93.5

Component Weight

  • Woofer 0.88 Kg
  • Tweeter 0.04 Kg

Voice coil diameter

  • Woofer 32 (1.26)
  • Tweeter 20 (0.79)
