APK 165P Audison APK 165P Prima Series Two-Way Speaker System

Audison
Your price:
€ 199,00
Price per pack (VAT included)
Available on backorder
Calculating shipping costs to

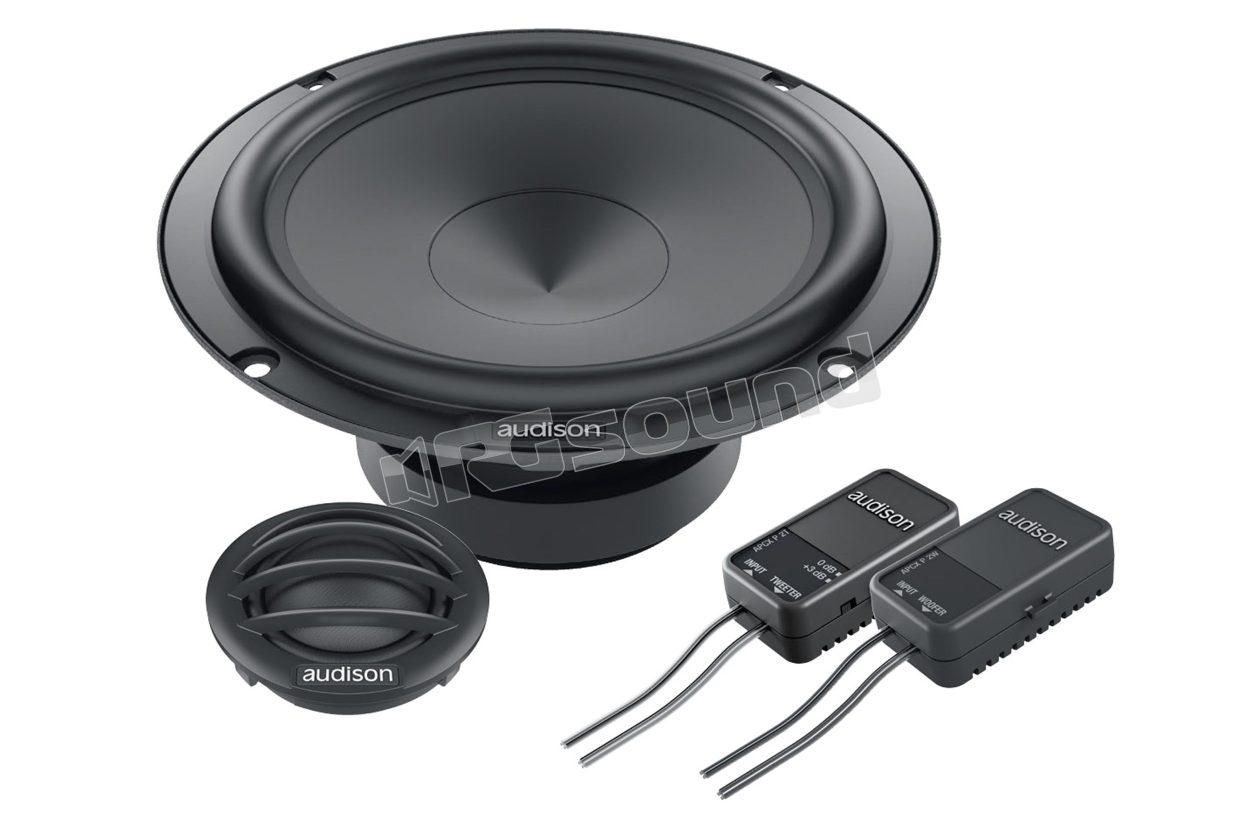

Audison APK 165P Two-way speaker system Prima series

Audison APK 165P is the two-way speaker system Prima series capable of handling up to 240 W peak, the ideal combination to fully exploit the power of the AP F8.9 bit or all other Prima amplifiers used in high-power configurations. The exclusive AIF (Any Install Faceplate) technology of the AP 1P Tweeter provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The woofer has been designed to perform best in OEM installations, combining excellent power handling and efficiency.
System Components:
  • AP 1P Tweeter: AIF (Any Install Faceplate) technology for total application versatility and significant reduction in installation time. Three mounting accessories provided for a solution to every type of installation.
  • AP 6.5P Woofer: Increased excursion of the moving assembly for superior dynamic response. Electro-acoustic parameters optimized to maximize performance for installation in pre-installation.
  • APCX P 2T, APCX P 2W crossovers: Ultra-compact crossovers separated for tweeter and woofer to minimize bulk and simplify cable routing, facilitating specialist work. Use of selected components and sized for high power handling avoiding saturation.

APK 165P Features

  • AP 1P
    • AIF (Any Install Faceplate) technology for total application versatility and significant reduction in installation time.
    • Three mounting accessories supplied to offer a solution for any type of installation.
    • Magnetic assembly with double neodymium magnet pad for excellent high-frequency extension.
    • 1 CCAW moving coil for superior dynamic response.
    • Dome profile optimized with FEM simulations for wide off-axis dispersion.
  • AP 6.5P
    • Increased excursion of the moving assembly for superior dynamic response.
    • Electro-acoustic parameters optimized to maximize performance for OEM placements.
    • Magnetic assembly sized for perfect control even at maximum cone excursion.
    • CCAW (Copper-Clad Aluminium Wire) moving coil (32 x 14 mm) to optimally handle the increased power applied.
    • Compact basket size to facilitate OEM installations.
  • APCX P 2T - APCX P 2W
    • Ultra-compact crossovers separated for tweeter and woofer to minimize bulk and simplify cable routing, facilitating specialist work.
    • Use of selected components and sized for high power handling, avoiding saturation.
    • Asymmetrical slope filtering, 12 dB/oct on the tweeter and 6 dB/oct on the woofer for optimal balance between the two components

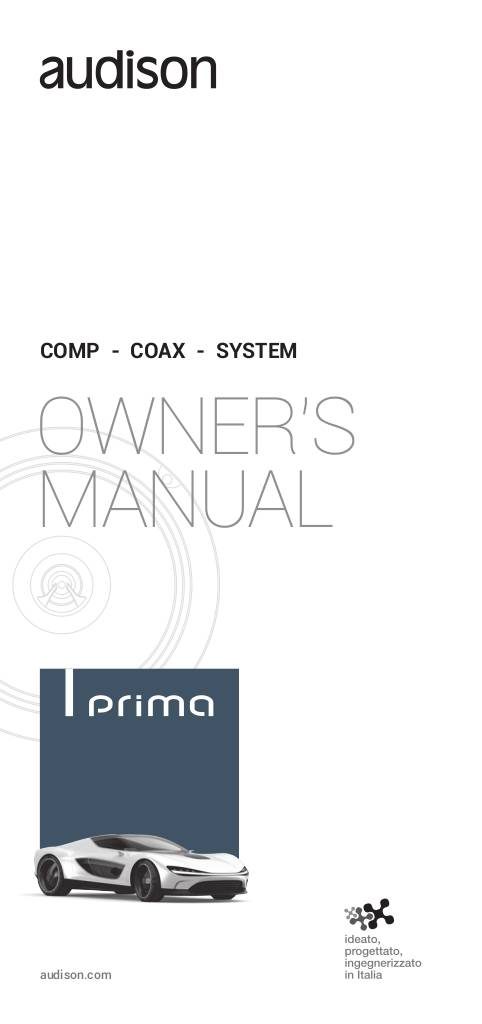

Manuale utente

n-20191125110621-audison-prima-speaker-manual-rev-19c-x-web.pdf

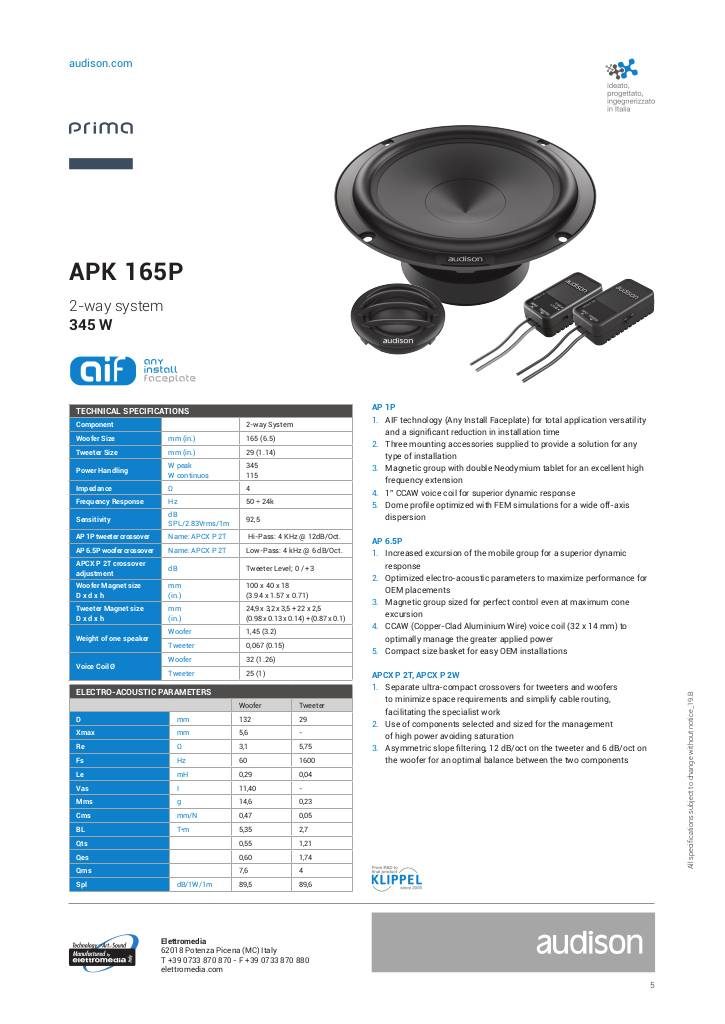

Scheda tecnica

n-20191125110621-audison-prima-apk165p-tech-sheet-1.pdf

Pair of woofers Pair of tweeters Pair of crossovers for tweeter Pair of crossovers for woofer Accessories

Audison APK 165P Technical specifications

  • 2-way system
  • Tweeter component AP 1P
  • Woofer component AP 6.5P
  • Tweeter crossover APCX P 2T
  • Tweeter crossover type 4kHz High-Pass @ 12 dB / Oct
  • Woofer crossover APCX P 2W
  • Woofer crossover type 4kHz low-pass @ 6 dB / Oct
  • 165 mm (6.5 ") woofer
  • 29 mm (1.14 ") tweeter
  • Power handling 115 W Continuous power
  • Peak power 345 W.
  • Impedance 4 Ω
  • Frequency response 50 - 24k Hz
  • Sensitivity @ 2.83 Vrms / 1m 92.5 dB / Spl
