APK 165 Ohm2 165mm 2-way component kit at 2 Ohm

Audison
Your price:
€ 159,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
60 - 20.000 Hertz
Woofer Size
165 mm
Tweeter Size
26 millimetri
MAX Power
300 Watt
RMS Power
100 Watt
Sensitivity
93 dB
Impedance
2 Ohm
Woofer Material
Cellulosa trattata
Tweeter Material
Neodimio

Audison APK 165 Ohm2 Two-Way 165mm Kit at 2 Ohm

Kit composed of pair of AP 6.5 2Ohm woofers including grilles + pair of AP 1 tweeters and pair of dedicated compact crossovers.

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhausting research combined with long listening sessions that brought the speakers to a level of performance that was believed unattainable in OEM Integration.

APK 165 Ohm2 Features

  • 2 Ω to fully exploit the power of 65 W per channel at 2 Ω of the AP8.9 bit amplifier.
  • Resonance frequency of 75 Hz, to extend the frequency range down to 50 Hz and increase the SPL in the low range.
  • 25 mm voice coil to maximize efficiency and achieve 95 dB.
  • Voice coil with winding height of 10 mm to increase the maximum linear excursion to 2.8 mm and minimize distortion, even at high listening levels.


APK 165 Ohm2 Components

  • Woofer AP 6.5
    • 2Ω woofer with water-repellent treated paper cone, with profile developed with FEM simulation technology and optimized with Klippel scanning vibrometer.
    • Reduced mounting depth, which facilitates installation in OEM positions.
    • TPU (thermoplastic polyurethane) surround, characterized by the exclusive "triple wave" profile for maximum excursion linearity.
    • Compact basket, protected by a coating resistant to abrasion and scratches. The damping epoxy adhesive ensures perfect coupling with the motor system.
    • High-current fast-on terminal with dual contact on the positive and negative poles for high flexibility and quick connection. The terminal is equipped with a temperature-resistant plastic cover that protects it from accidental short circuits.
    • Developed with the KLIPPEL suite.
  • Tweeter AP 1
    • Tweeter with acoustic lens designed to balance the frequency response in the 10kHz 13kHz range, to optimize the acoustic emission of the product in critical OEM locations, where product performance is influenced by the presence of the factory grille.
    • Connection cable integrated in the passive crossover and terminated with fast-on connectors compliant with OEM integration. The terminations, different for each of the two poles, eliminate any possible connection error, speeding up the installation process and making it safe over time.
  • Crossover APCX WF 2Ω
    • Dedicated woofer crossover with low-loss voice coils to shape the frequency response and achieve optimal matching with the tweeter.
    • Tweeter crossover with Hi-Contour function to enhance high frequencies, designed to achieve the right tonal balance with the rich low frequencies guaranteed by the woofer.

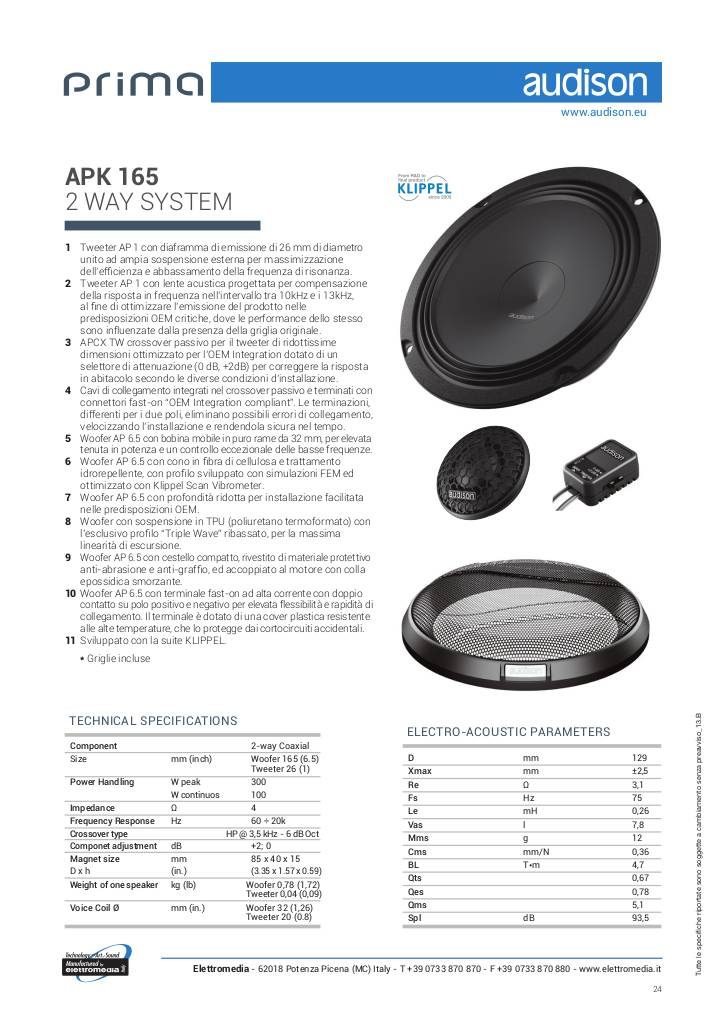

Scheda tecnica

20140211153925-apk-165-scheda-tecnica.pdf

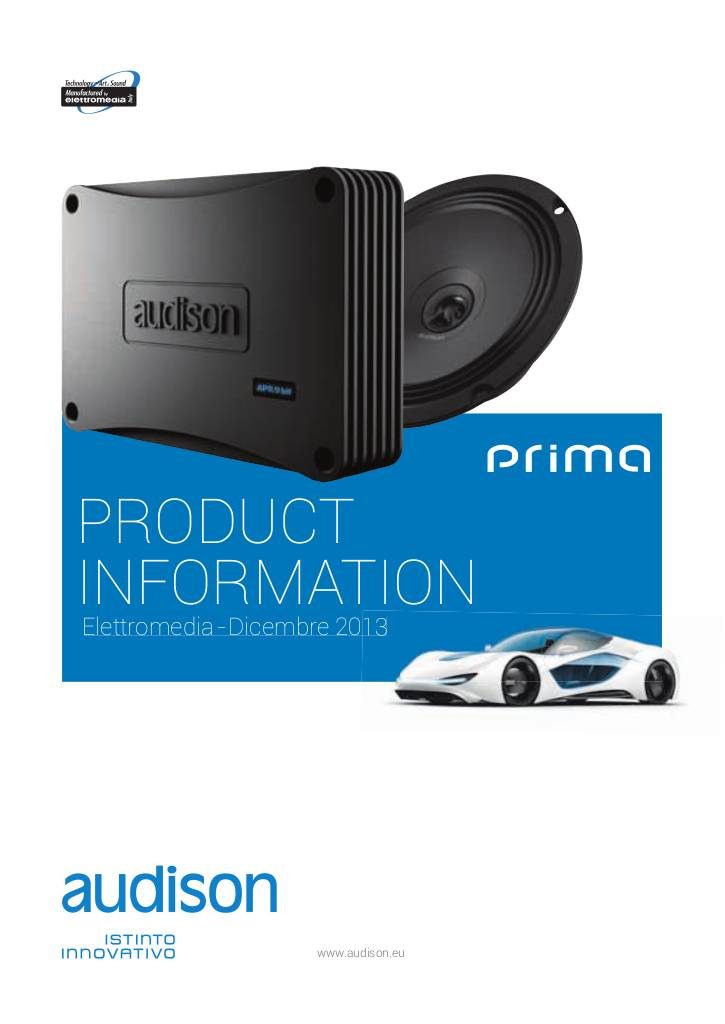

Manuale linea Prima

20140211153925-121213-audison-prima-cartella-stampa-ita-low.pdf

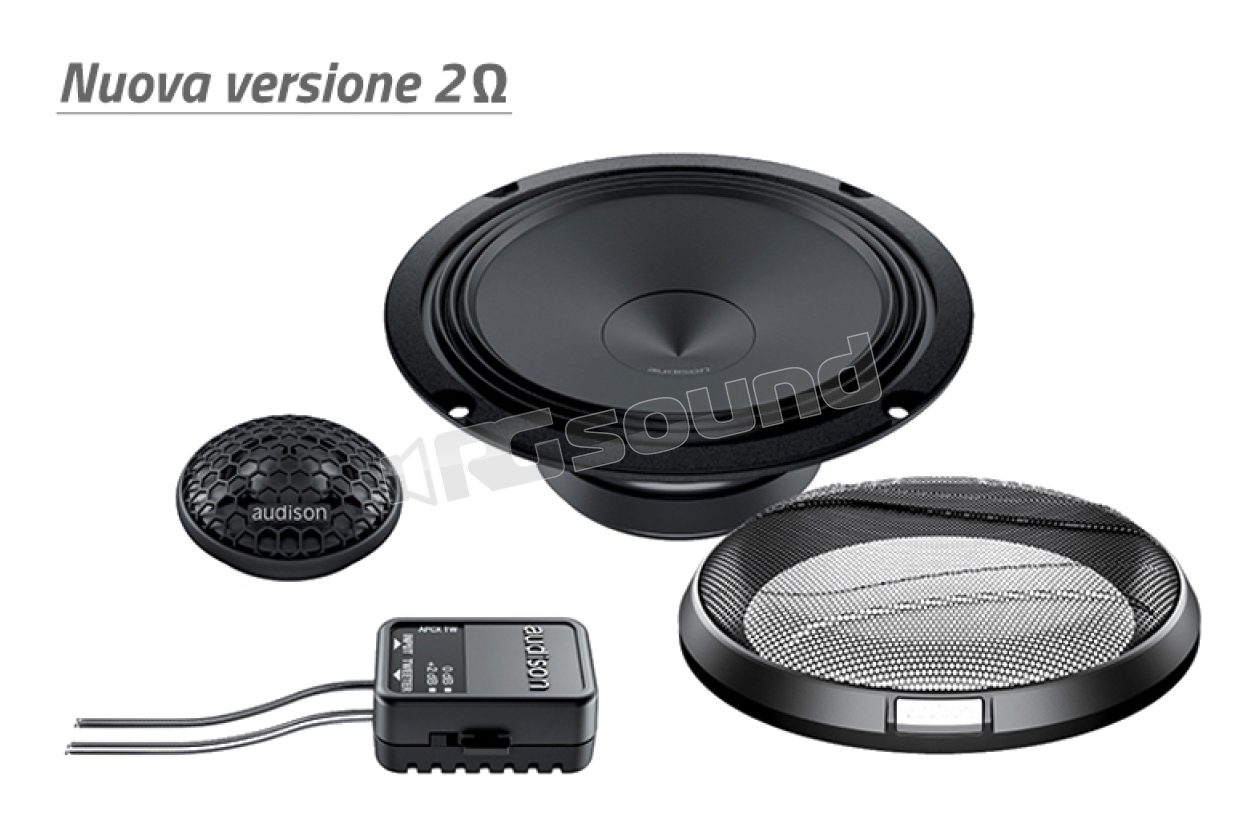

2x Woofer 2x Tweeter 2x Crossover 2x Grilles Installation instructions

Audison APK 165 Ohm2 Technical Specifications

  • Two-Way Coaxial Component
  • Dimensions mm (inches) Woofer 165 (6.5) - Tweeter 26 (1)
  • Power handled W peak 300 - W continuous 100
  • Impedance Ω 2
  • Frequency response Hz 60 ÷ 20k
  • Crossover type HP @ 3.5 kHz - 6 dB Oct
  • Component adjustment dB +2; 0
  • Magnet dimensions mm 85 x 40 x 15

Weight kg (lb)

  • Woofer 0.78 (1.72)
  • Tweeter 0.04 (0.09)

Voice coil diameter mm (in.)

  • Woofer 32 (1.26)
  • Tweeter 20 (0.8)
