APK 163 165 mm three-way kit at 4 Ohm

Audison
Your price:
€ 259,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
100 millimetri
Tweeter Size
26 millimetri
MAX Power
375 Watt
RMS Power
125 Watt
Frequency Response
50 - 20.000 Hertz
Sensitivity
93,5 dB
Impedance
4 Ohm
Woofer Material
Cellulosa trattata

Audison APK 163 Three-way kit 165 mm at 4 Ohm

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with long listening sessions that brought the speakers to a level of performance that was believed to be unreachable in OEM Integration.

The kit supports over 100W rms but given the high sensitivity of the system (93.5 dB) it is suitable for replacing the factory speakers and being driven by the integrated amplifier of normal car radios (even factory ones). Kit consisting of a pair of AP 6.5 woofers complete with grilles + pair of AP 4 midbass complete with grilles + pair of AP 1 tweeters and three pairs of dedicated compact crossovers.

APK 163 Components

Woofer AP 6.5

  • Pure copper voice coil 32 mm, for high power handling and exceptional low frequency control.
  • Hydrophobic treated paper cone, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D scanning vibrometer.
  • Reduced mounting depth, to facilitate installation in OEM positions.
  • TPU (thermoplastic polyurethane) surround, characterized by the exclusive "TripleWave" profile shallow for maximum excursion linearity.
  • Compact basket, protected by an abrasion-resistant and scratch-resistant coating, motor fixed with damping epoxy adhesive.
  • Fast-on terminal with high current and double contact on positive and negative poles for high flexibility and quick connection. The terminal is equipped with a heat-resistant plastic cover, which protects it from accidental short circuits.
  • Developed with the KLIPPEL suite.

Midbass AP4

  • Extended frequency response and high efficiency.
  • Hydrophobic treated paper cone, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D scanning vibrometer.
  • Reduced mounting depth, to facilitate installation in OEM positions.
  • TPU (thermoplastic polyurethane) surround, characterized by the exclusive "TripleWave" profile shallow for maximum excursion linearity.
  • Compact basket, protected by an abrasion-resistant and scratch-resistant coating, motor fixed with damping epoxy adhesive.

Tweeter AP 1

  • 26 mm diameter diaphragm, combined with a wide-roll surround, ensures maximum efficiency and reduced resonance frequency.
  • Acoustic lens designed to compensate and tune frequency response anomalies in the car in the bandwidth of 10kHz and 13kHz caused by restrictive OEM grilles in critical positions.

Dedicated crossovers for each component

  • APCX WF
  • Passive woofer crossovers with reduced dimensions and optimized for OEM integration.
  • APCX MD
  • Passive midbass crossovers with reduced dimensions and optimized for OEM integration.
  • APCX TW
  • Compact passive tweeter crossover, optimized for OEM integration and equipped with an attenuation selector (0 dB, +2dB) to tune the in-car response based on different installation conditions

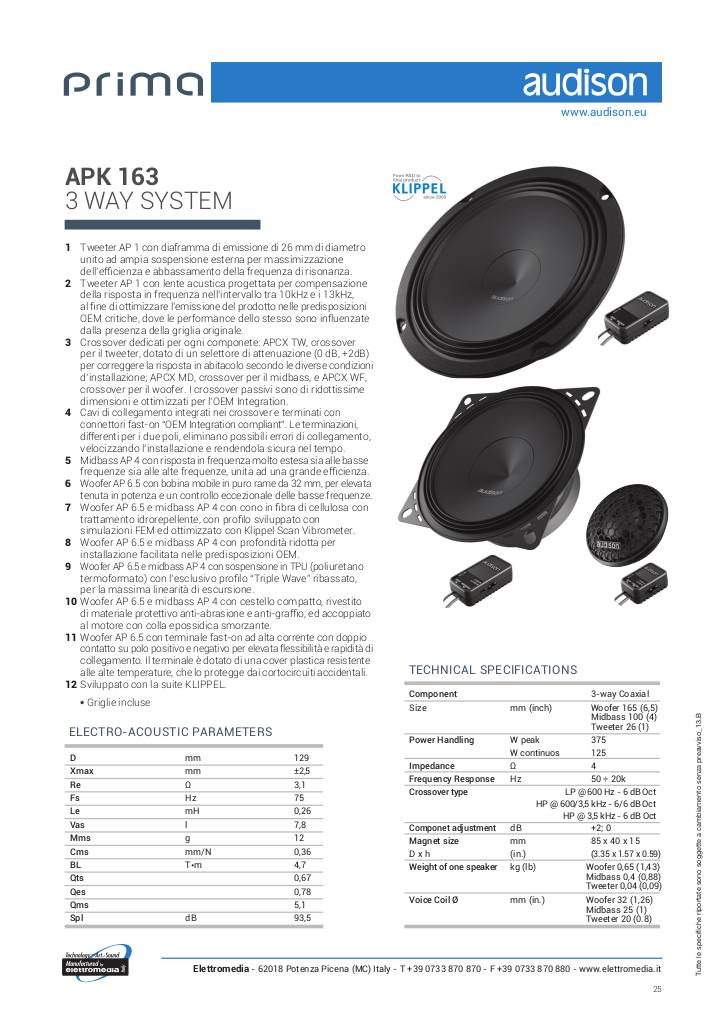

Scheda tecnica

20140211154101-apk-163-scheda-tecnica.pdf

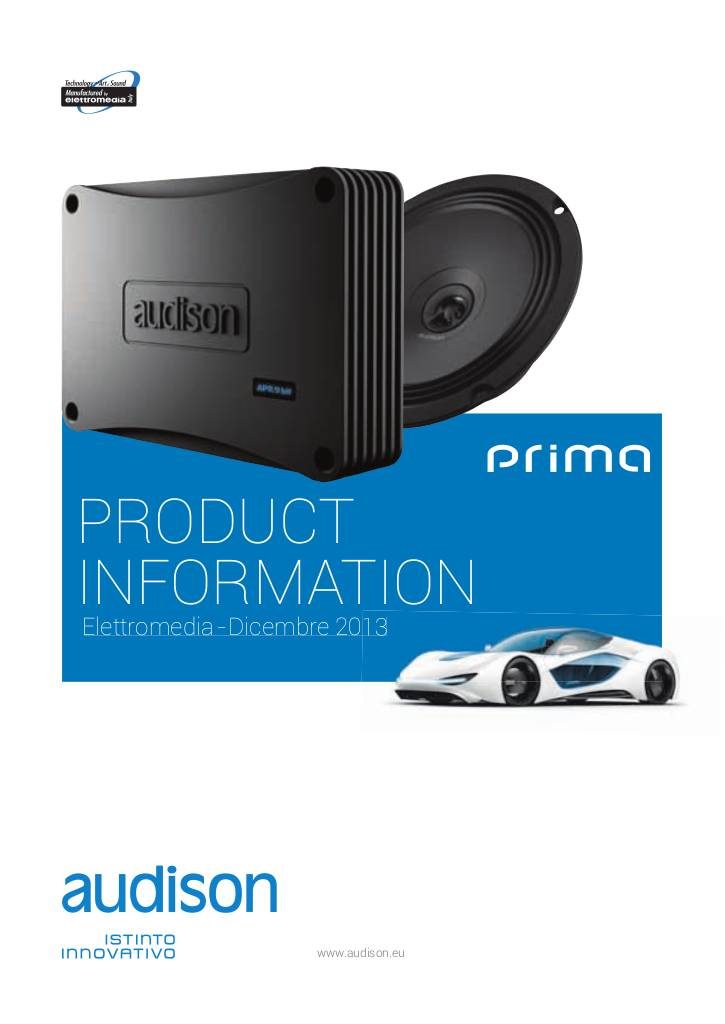

Manuale linea Prima

20140211154101-121213-audison-prima-cartella-stampa-ita-low.pdf

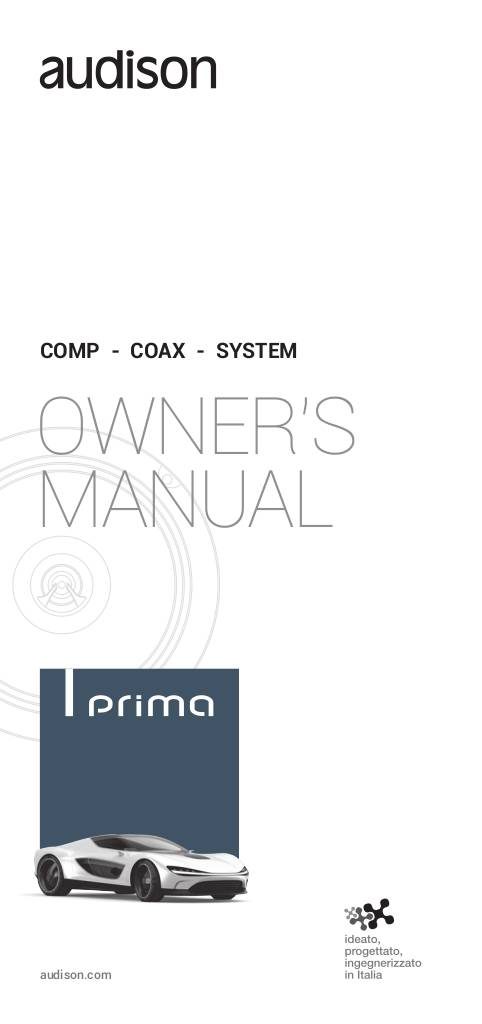

manuale di installazione

n-20190305184655-prima-speaker-manual-rev-19b.pdf

2x Woofers 2x Midbass 2x Tweeters 6x Crossovers 4x Grilles Assembly instructions

Audison APK 163 Technical Specifications

  • 3-way Coaxial Component
  • Dimensions mm (inches) Woofer 165 (6.5) - Midbass 100 (4) - Tweeter 26 (1)
  • Power handling W peak 375 - W continuous 125
  • Impedance Ω 4
  • Frequency response Hz 50 ÷ 20k
  • Crossover type
    • LP @ 600 Hz - 6 dB Oct
    • HP @ 600/3.5 kHz - 6/6 dB oct.
    • HP @ 3.5 kHz - 6 dB oct.
  • Component adjustment dB +2; 0
  • Magnet dimensions mm 85 x 40 x 15
Weight kg (lb)
  • Woofer 0.65 (1.43)
  • Midbass 0.4 (0.88)
  • Tweeter 0.04 (0.09)
Voice coil diameter mm (in.)
  • Woofer 32 (1.26)
  • Midbass 25 (1)
  • Tweeter 20 (0.8)
