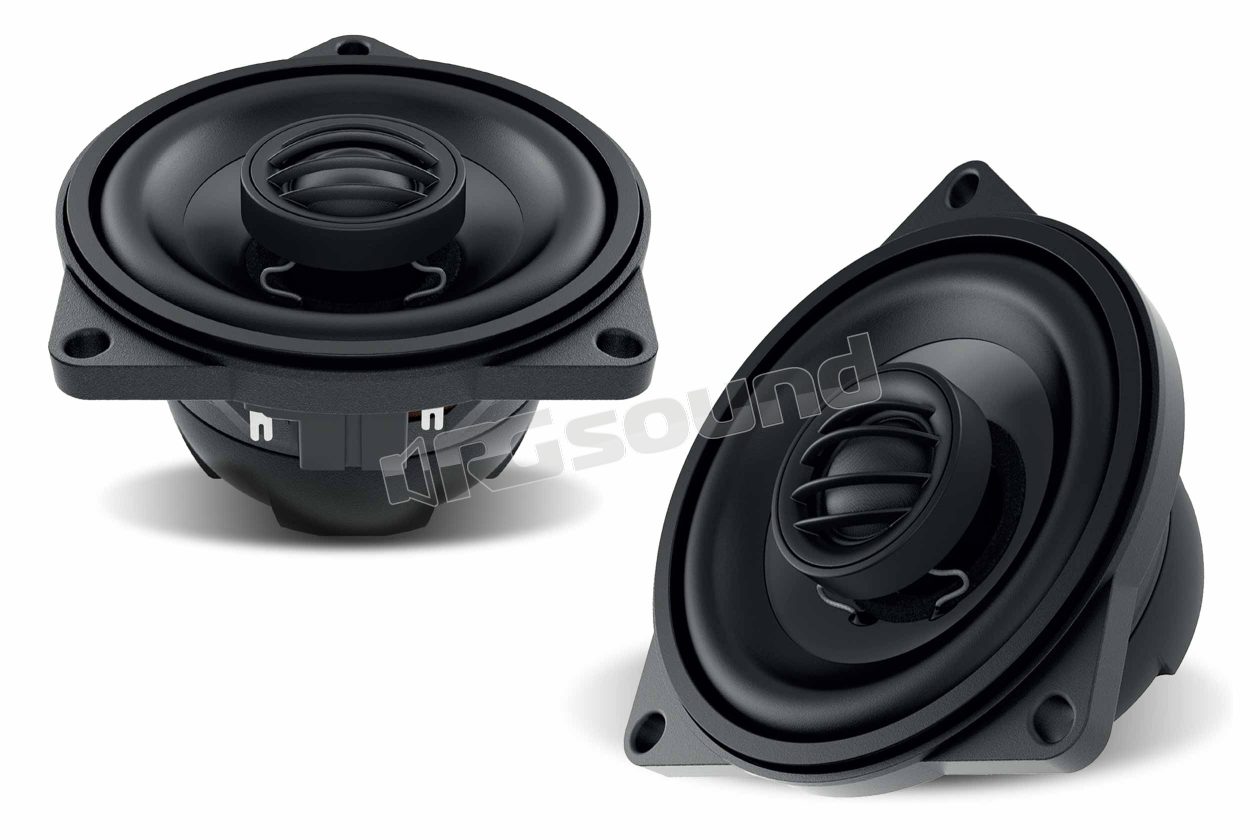

APBMW X4M Pair of 10cm coaxial speakers dedicated to BMW and MINI

Audison
Your price:
€ 189,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
100 - 22.000 Hertz
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Cono in cellulosa pressata
Tweeter Material
Tetolon

Audison APBMW X4M Pair of 10cm coaxial speakers dedicated for BMW and MINI

The APBMW X coaxial speakers have been specifically designed for BMW - MINI models where it is not possible to install a two-way front system or to upgrade the rear speakers.


The APBMW X 100 mm (4") features a basket and mounting screws dedicated to specific car models, and features a water-repellent pressed paper cone capable of improving midrange reproduction. The 20 mm voice coil and Tetolon dome tweeter, a material that boasts lightness and damping properties, offer optimized dispersion characteristics for OEM positioning, elevating the sound level, even more realistic. Consult the attached compatibility table to see which BMW and Mini models are set up for the installation of APBMW X4M coaxial speakers.

APBMW X4M Features

  • Specifically developed for BMW-Mini models that do not allow the installation of a two-way system on the front side or for the upgrade of the rear seat.
  • Neodymium magnetic group to maximize performance while minimizing size and weight.
  • 25 mm (1") fiberglass woofer voice coil for high dissipation and rigidity.
  • Water-resistant pressed paper cone for natural and resonance-free midrange.
  • Tweeter with 20 mm (0.8") Tetolon voice coil with dispersion characteristics optimized with FEM simulations.
  • Die-cast aluminum basket compatible with BMW-Mini Plug & Play connectors.
  • 30 cm cables equipped with Plug & Play connectors, for high installation flexibility.

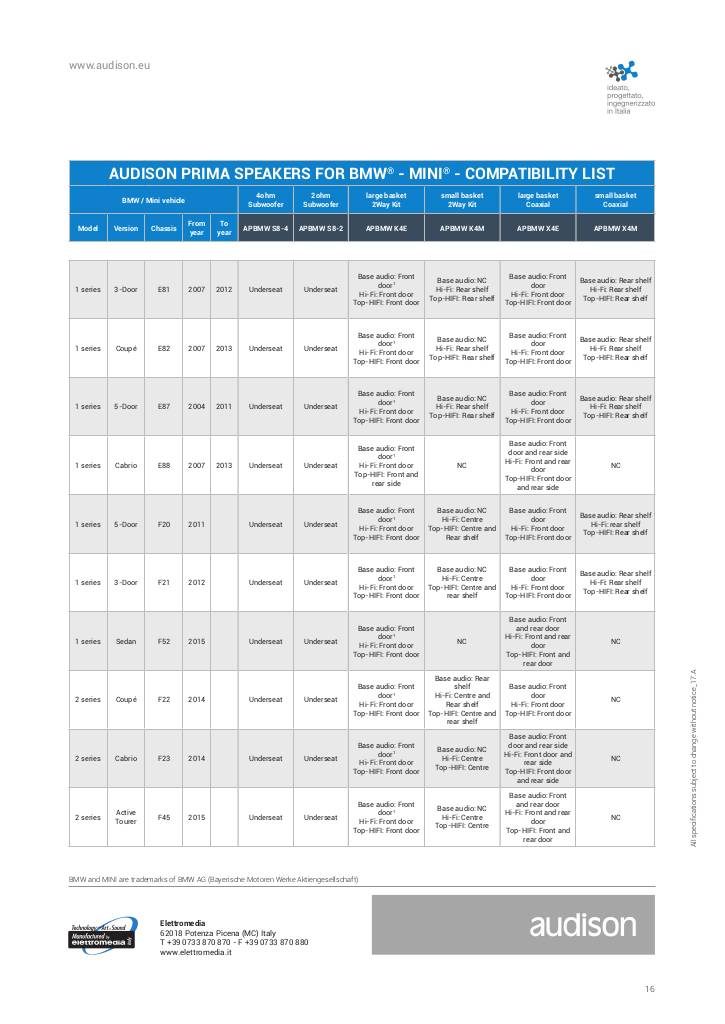

Tabella compatibilità

n-20171123144316-audison-tabella-bmw.pdf

Audison APBMW X4M Technical Specifications

  • Diameter 100 mm (4")
  • Tweeter diameter 24 mm (0.9")
  • Peak power 80 W
  • Nominal power 40 W
  • Impedance 4 Ω
  • Spl 88 dB
  • Frequency response 100 ÷ 22k Hz
  • Magnet measurement D x d x h: 50 x 29 x 3 mm (1.97 x 1.14 x 0.12")
  • Weight of one speaker 0.5 kg (1.1 lb)
  • Woofer voice coil diameter Ø 25 mm (1")
  • Tweeter voice coil diameter Ø 20 mm (0.8")
€ 189,00 Price incl. VAT
