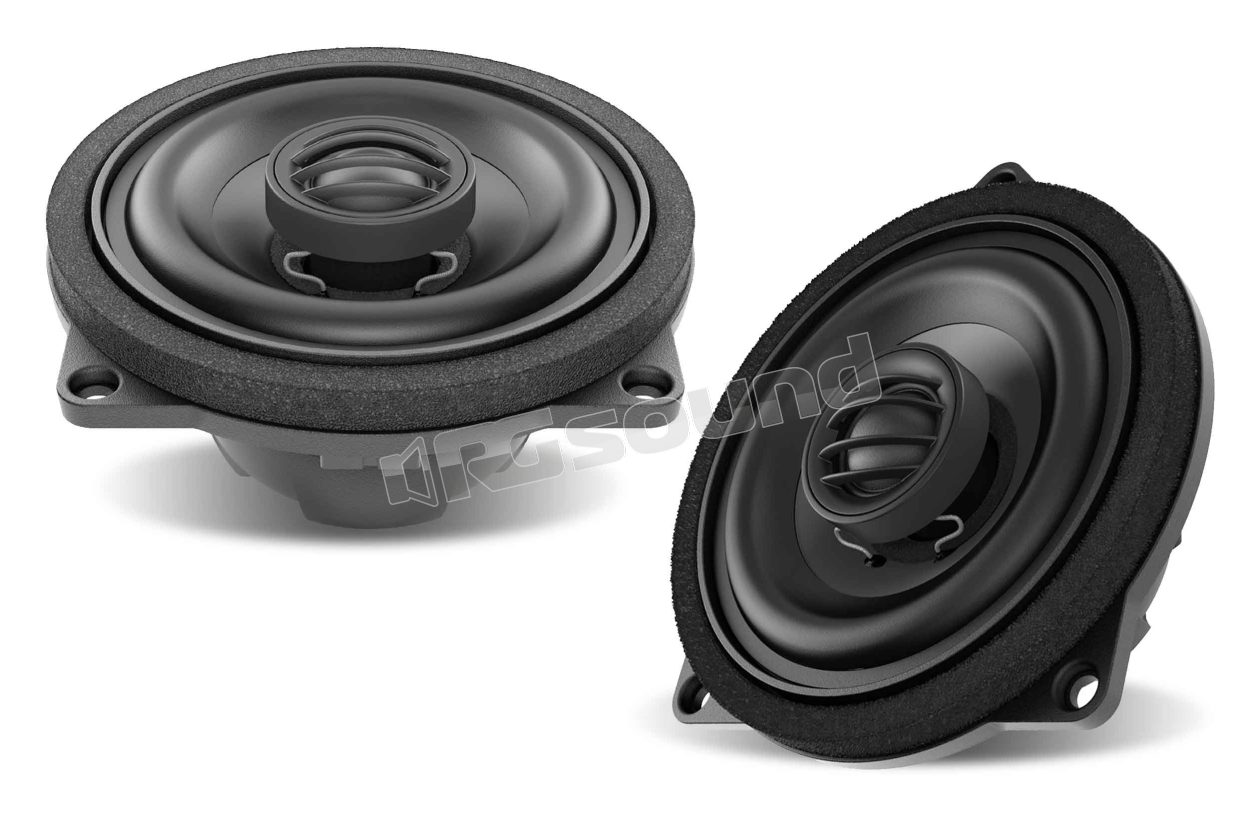

APBMW X4E Pair of dedicated 10cm coaxial speakers for BMW and MINI

Audison
Your price:
€ 189,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
100 - 22.000 Hertz
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
88 dB
Impedance
4 Ohm
Woofer Material
Cono in cellulosa pressata
Tweeter Material
Tetolon

Audison APBMW X4E Pair of 10cm coaxial speakers dedicated for BMW and MINI

The coaxial APBMW E speakers have been specifically designed for BMW - MINI models where it is not possible to install a two-way front system or to upgrade the rear speakers. The 100 mm (4") APBMW E features a basket and dedicated fastening screws for specific car models, presents a water-repellent pressed paper cone capable of improving the reproduction of midrange frequencies.

The 20 mm voice coil and Tetolon dome tweeter, a material that boasts lightness and damping properties, offer optimized dispersion characteristics for OEM positioning, elevating the sound level, even more realistic.

APBMW X4E Features

  • Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front side or for the rear seat upgrade.
  • Neodymium magnetic group to maximize performance while minimizing bulk and weight.
  • Fiberglass woofer voice coil 25 mm (1") for high dissipation and rigidity.
  • Water-resistant pressed paper cone for natural midrange frequencies and free from resonance.
  • Tweeter with 20 mm (0.8") Tetolon voice coil with optimized dispersion characteristics with FEM simulations.
  • Die-cast aluminum basket compatible and Plug & Play BMW-Mini connectors.
  • 30 cm cables equipped with Plug & Play connectors, for high installation flexibility.

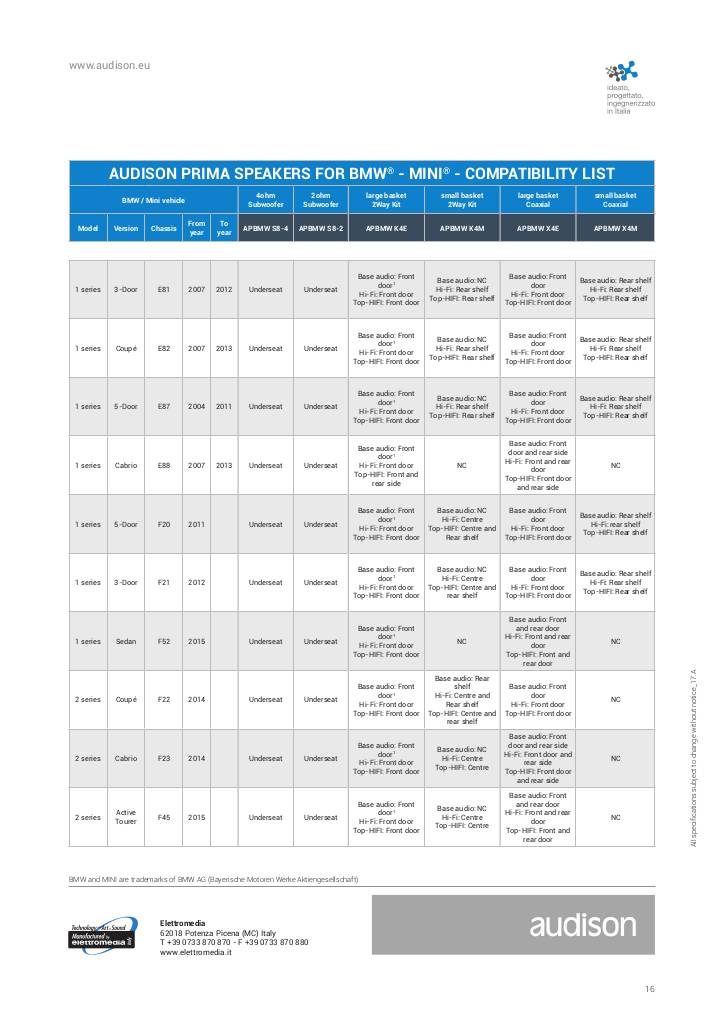

WARNING: Consult the compatibility table among the attachments to see which BMW and Mini models are set up for installation.

Tabella compatibilità

n-20171123151515-audison-tabella-bmw.pdf

Audison APBMW X4E Technical specifications

  • Diameter 100 mm (4")
  • Tweeter diameter 24 mm (0.9")
  • Peak power 80 W
  • Nominal power 40 W
  • Impedance 4 Ω
  • Spl 88 dB
  • Frequency response 100 ÷ 22k Hz
  • Magnet size D x d x h: 50 x 29 x 3 mm (1.97 x 1.14 x 0.12")
  • Weight of one speaker 0.5 kg (1.1 lb)
  • Woofer voice coil diameter Ø 25 mm (1")
  • Tweeter voice coil diameter Ø 20 mm (0.8")
€ 189,00 Price incl. VAT
