APBMW K4M Dedicated two-way system for BMW - Mini

Audison
Your price:
€ 219,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
90 - 23.000 Hertz
Woofer Size
100 mm
Tweeter Size
29 millimetri
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cono in cellulosa pressata
Tweeter Material
Tetolon

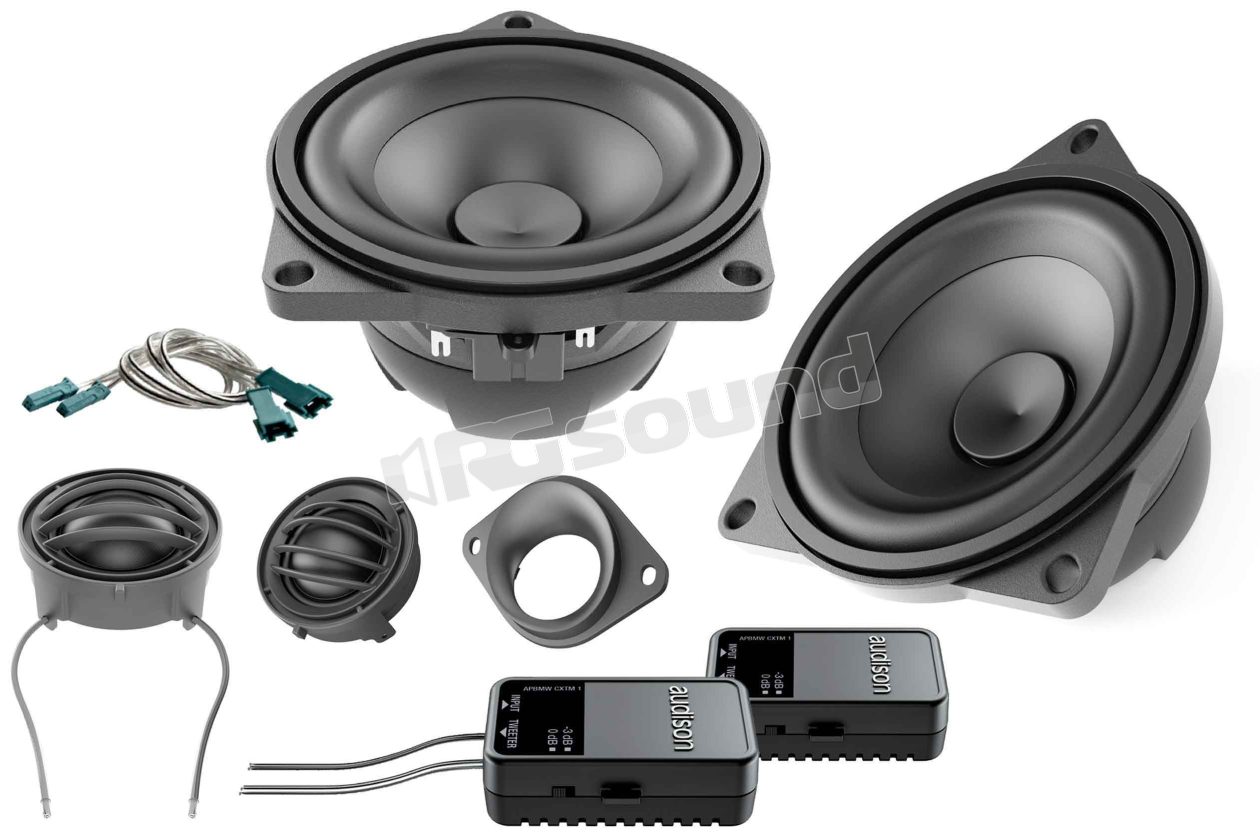

Audison APBMW K4M Two-way system dedicated for BMW - Mini

Two-way system dedicated for BMW and Mini, consisting of a pair of woofers, a pair of tweeters, dedicated crossovers and Plug&Play APBMW K4M 2-way system for BMW and MINI provisions with three-dimensional sound and greater precision in sound reproduction. The 100 mm (4") speaker is equipped with a water-repellent pressed paper cone, a material that provides natural sound. It has a low resonance frequency that allows the hi-pass cut in the 150-200 Hz range for excellent mid-bass reproduction.

The 25 mm voice coil and Tetolon dome tweeter offer exceptional performance, extension in both mid and high frequencies, and is optimized for off-axis output, for an extended soundstage in three dimensions, which amplify and enhance the perception of sound inside the car. Audison has created two Plug&Play BMW and Mini kits, recognizable by the final initials K4E and K4M, which differ from each other for the different basket and fixing screws. See the compatibility table attached to check which kit is suitable for your vehicle.

Installation accessories included. The supplied crossover adopts a 6 dB slope and a tweeter attenuation selectable between 0 and -3 dB. The 150V MKT polypropylene capacitor with reduced loss factor allows a natural midrange intersection to the advantage of phase linearity and therefore stereo image stability.

APBMW K4M Features

  • Kit specially developed for upgrading BMW series systems with separate components. They recreate an extended soundstage in three dimensions that amplifies the perception of realism.
  • Neodymium magnetic group of the midrange and tweeter to maximize performance while keeping size and weight to a minimum.
  • Woofer voice coil 25mm (1") in fiberglass for high power dissipation and rigidity.
  • Midrange cone in water-repellent pressed paper for natural mid frequencies and free from colorations.
  • Basket in aluminum die-casting compatible with BMW with Plug&Play connectors.
  • Tweeter with 25 mm voice coil in Tetolon and dispersion characteristics optimized with FEM simulations.
  • Tweeter support included for Plug-&-Play mounting in predisposition.
  • 30cm extension with Plug-&-Play connectors supplied for high installation flexibility.
  • Damping and removable motor cover.
  • Crossover with high quality components and Plug&Play connection cables

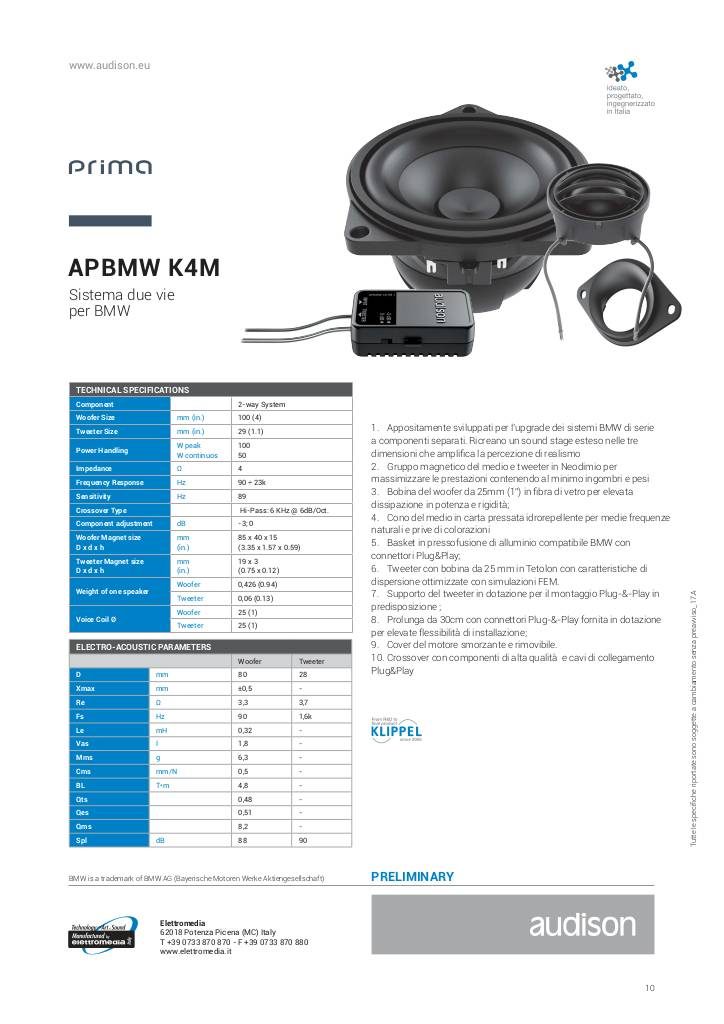

Scheda tecnica

n-20171117150238-apbmw-k4m.pdf

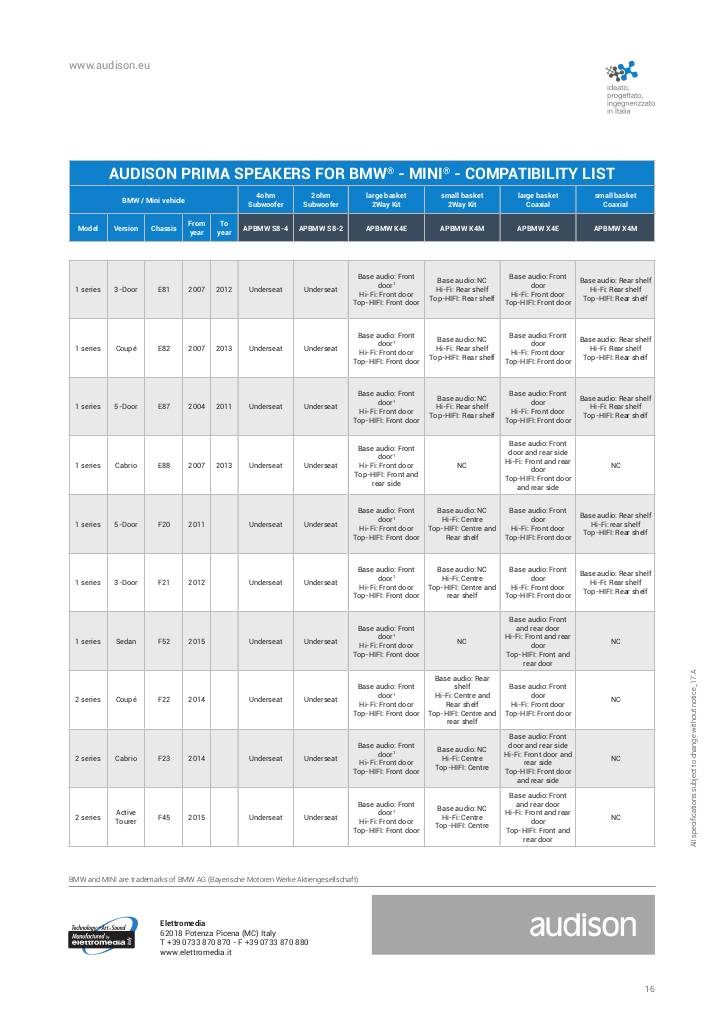

Tabella compatibilità

n-20171123152953-audison-tabella-bmw.pdf

Audison APBMW K4M Technical Specifications

  • Woofer diameter 100 mm (4")
  • Woofer voice coil Ø 25 (1")
  • Tweeter diameter 29 mm (1.1")
  • Tweeter voice coil Ø 25 mm (1")
  • Maximum power 100 W
  • Rated power 50 W
  • Impedance 4 Ohm
  • Frequency response 90 ÷ 23k Hz
  • Sensitivity 89 dB
  • Woofer magnet dimensions D x d x h: 50 x 29 x 3 mm (1.97 x 1.14 x 0.12")
  • Tweeter magnet dimensions: 24.5 x 4 mm (0.96 x 0.16")
  • Weight of each woofer 0.426 kg (0.94 lb)
  • Weight of each tweeter 0.06 kg (0.13 lb)
€ 219,00 Price incl. VAT
