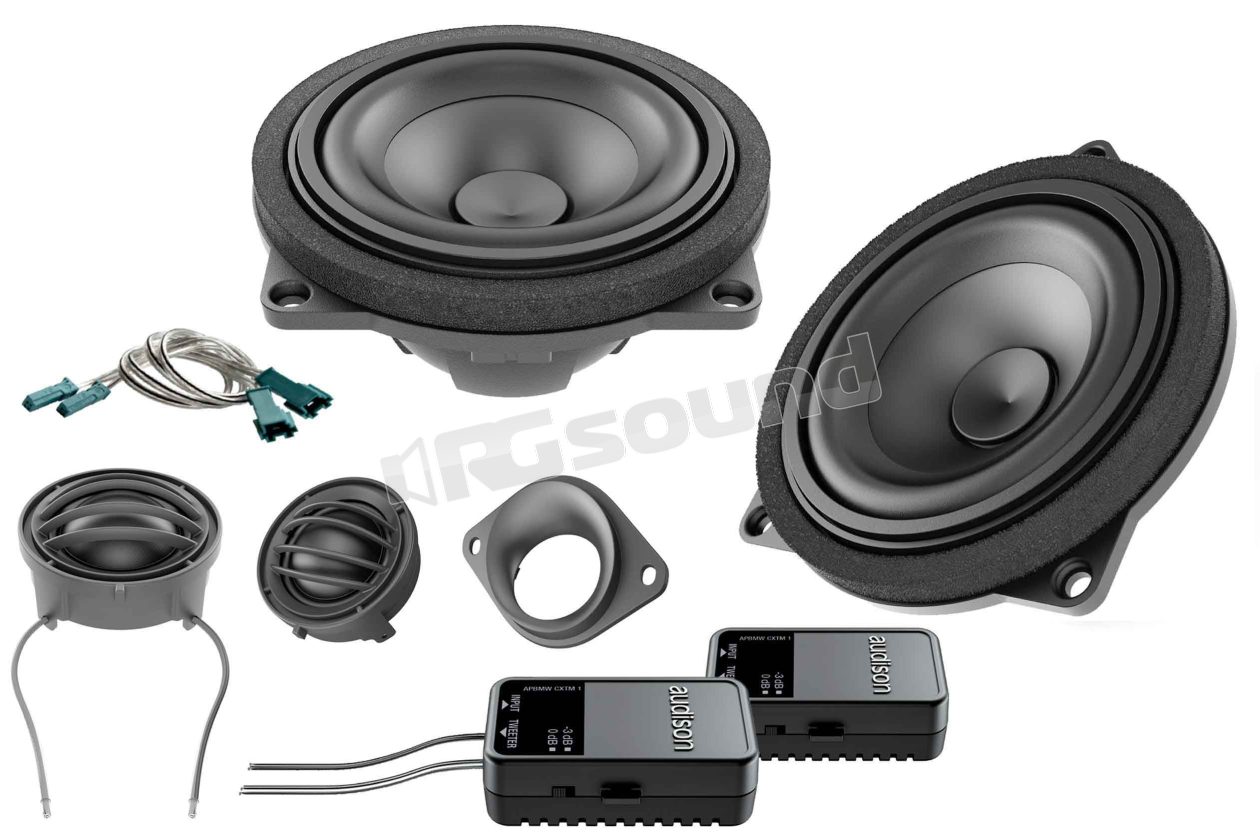

APBMW K4E Dedicated two-way system for BMW and Mini

Audison
Your price:
€ 219,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
2-way separate kit
Frequency Response
90 - 23.000 Hertz
Woofer Size
100 mm
Tweeter Size
29 millimetri
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cono in cellulosa pressata
Tweeter Material
Tetolon

Audison APBMW K4E Two-way system dedicated for BMW and Mini

APBMW K4E 2-way system for BMW and MINI with three-dimensional sound and greater precision in sound reproduction.
The 100 mm (4") speaker is equipped with a water-repellent cone made of pressed paper, a material that provides natural sound. It has a low resonance frequency that allows hi-pass filtering in the 150-200 Hz range for excellent mid-bass reproduction. The 25 mm voice coil and Tetolon dome tweeter deliver exceptional performance, extended response across both midrange and high frequencies, and is optimized for off-axis output, for an extended soundstage in three dimensions, which amplify and improve the perception of sound inside the car.

Audison has developed two Plug&Play kits for BMW and Mini, recognizable by the final designations K4E and K4M, which differ from each other in the different basket and fixing screws. See the compatibility table attached to check which kit is suitable for your vehicle. Installation accessories included. The supplied crossover adopts a 6 dB slope and a tweeter attenuation selectable between 0 and -3 dB. The MKT 150V polypropylene capacitor with reduced loss factor allows a natural midrange crossover to the advantage of phase linearity and thus stereo image stability.

APBMW K4E Features

  • Kit specifically developed for upgrading BMW factory systems with separate components. They recreate an extended soundstage in three dimensions that amplifies the perception of realism.
  • Magnetic group of midrange and tweeter in Neodymium to maximize performance while minimizing encumbrances and weights.
  • Woofer voice coil 25mm (1") in fiberglass for high power dissipation and rigidity.
  • Midrange cone in water-repellent pressed paper for natural midrange frequencies free from colorations.
  • Basket in aluminum die-casting compatible with BMW with Plug&Play connectors.
  • Tweeter with 25 mm Tetolon voice coil and optimized dispersion characteristics with FEM simulations.
  • Tweeter support included for Plug-&-Play mounting in factory location.
  • 30cm extension with Plug-&-Play connectors provided for high installation flexibility.
  • Damping and removable motor cover.
  • Crossover with high-quality components and Plug&Play connection cables

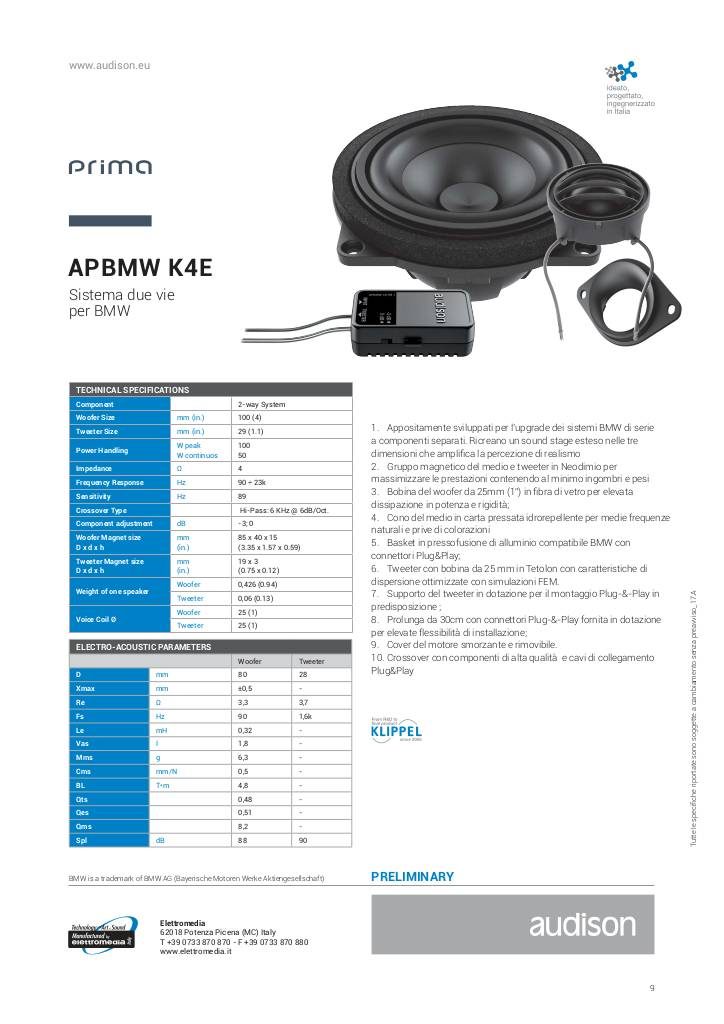

Scheda tecnica

n-20171117150311-apbmw-k4e.pdf

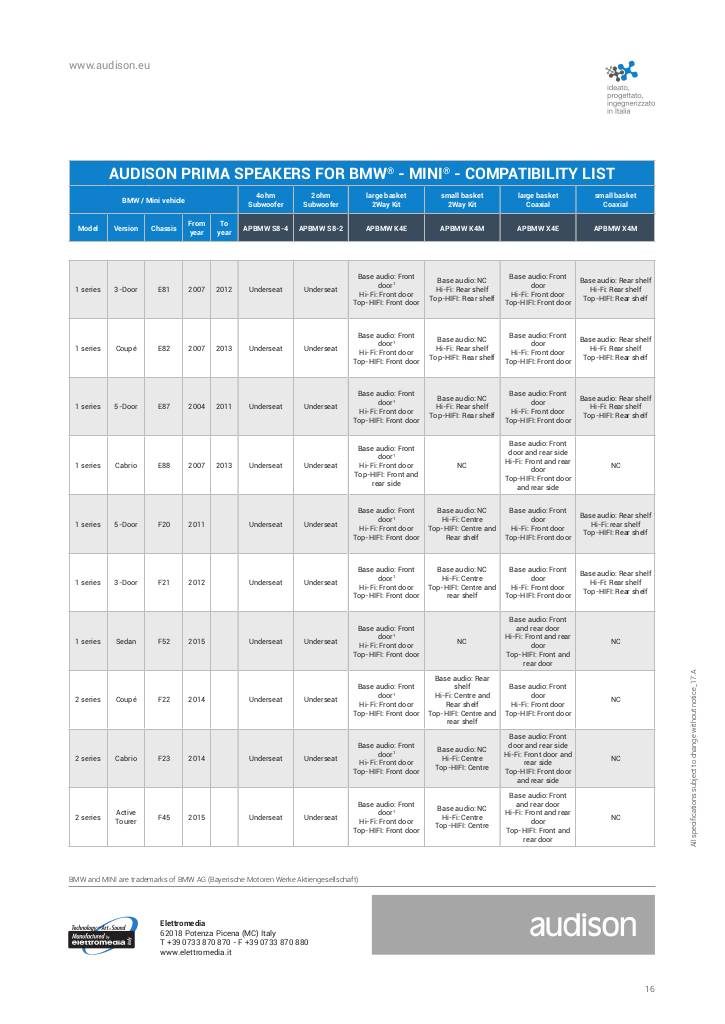

Tabella compatibilità

n-20171123161437-audison-tabella-bmw.pdf

Audison APBMW K4E Technical Specifications

  • Woofer diameter 100 mm (4")
  • Woofer voice coil Ø 25 (1")
  • Tweeter diameter 29 mm (1.1")
  • Tweeter voice coil Ø 25 mm (1")
  • Maximum power 100 W
  • Nominal power 50 W
  • Impedance 4 Ohm
  • Frequency response 90 ÷ 23k Hz
  • Sensitivity 89 dB
  • Woofer magnet dimensions D x d x h: 50 x 29 x 3 mm (1.97 x 1.14 x 0.12")
  • Tweeter magnet dimensions: 24.5 x 4 mm (0.96 x 0.16")
  • Weight of each woofer 0.426 kg (0.94 lb)
  • Weight of each tweeter 0.06 kg (0.13 lb)
€ 219,00 Price incl. VAT
