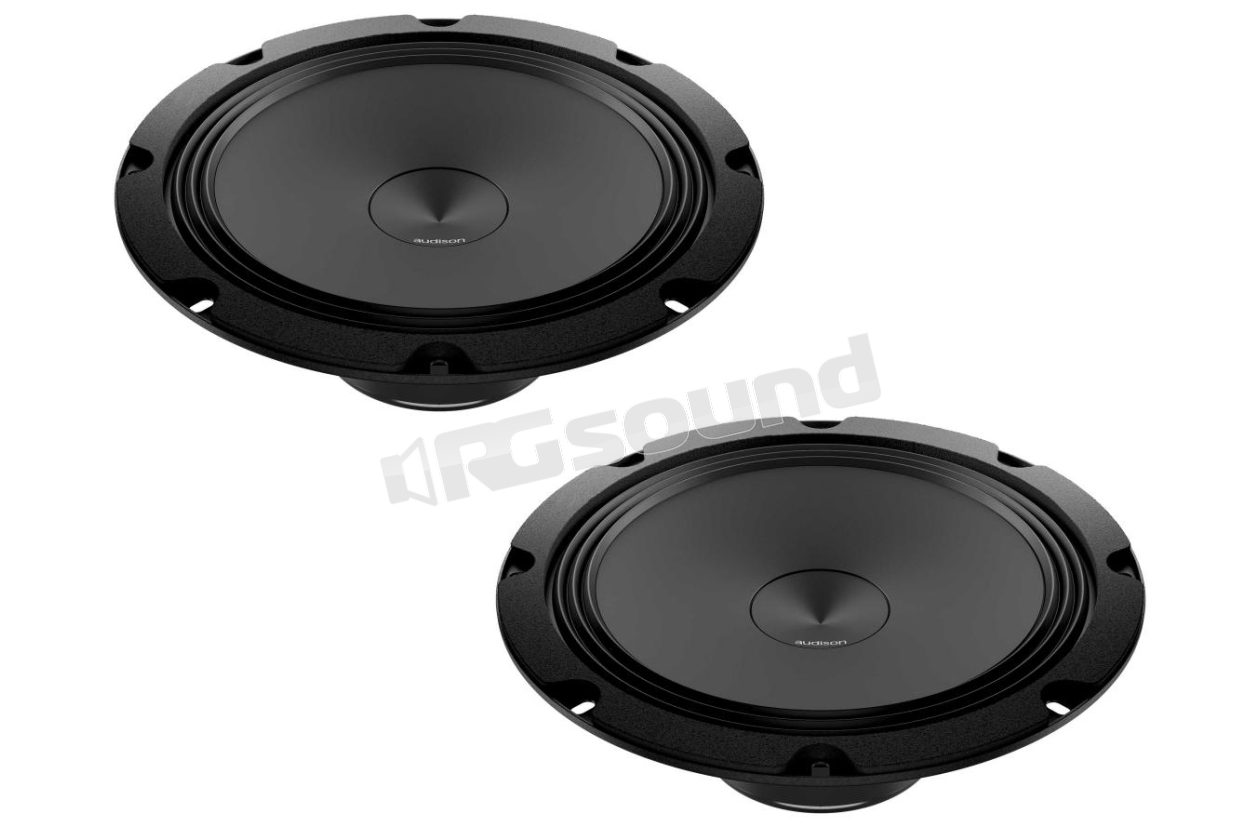

AP 8 Pair of 200mm 4 Ohm woofers

Audison
Your price:
€ 139,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
300 Watt
RMS Power
100 Watt
Frequency Response
35 - 3.000 Hertz
Sensitivity
93,5 dB
Impedance
4 Ohm
Weight
2,4 Kg
Installation Depth
66 mm
Woofer Material
Cellulosa trattata

Audison AP 8 Pair of 200mm woofers at 4 Ohm

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with lengthy listening sessions that brought the speakers to a level of performance that was believed to be unreachable in OEM Integration.

AP 8 Features

  • Cone in water-repellent treated paper, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel scanning vibrometer.
  • No passive crossover is necessary to maximize efficiency: the dome profile optimized with the R&S Klippel scanning vibrometer to obtain a calibrated mechanical low-pass cutoff frequency.
  • Reduced mounting depth, to facilitate installation in OEM positions.
  • The TPU edge (thermoplastic polyurethane) is characterized by the exclusive "Triple Wave" profile, for maximum linearity of excursion.
  • Compact basket, protected by anti-abrasion protection and anti-scratch coating, the motor has been fixed with a damping epoxy adhesive.
  • High-current quick-release terminal with dual contact on positive and negative poles for high flexibility and quick connection.
  • The terminal is equipped with a temperature-resistant plastic cover, which protects against accidental short circuits.
  • Developed with the KLIPPEL suite.
  • Grille included

Scheda tecnica

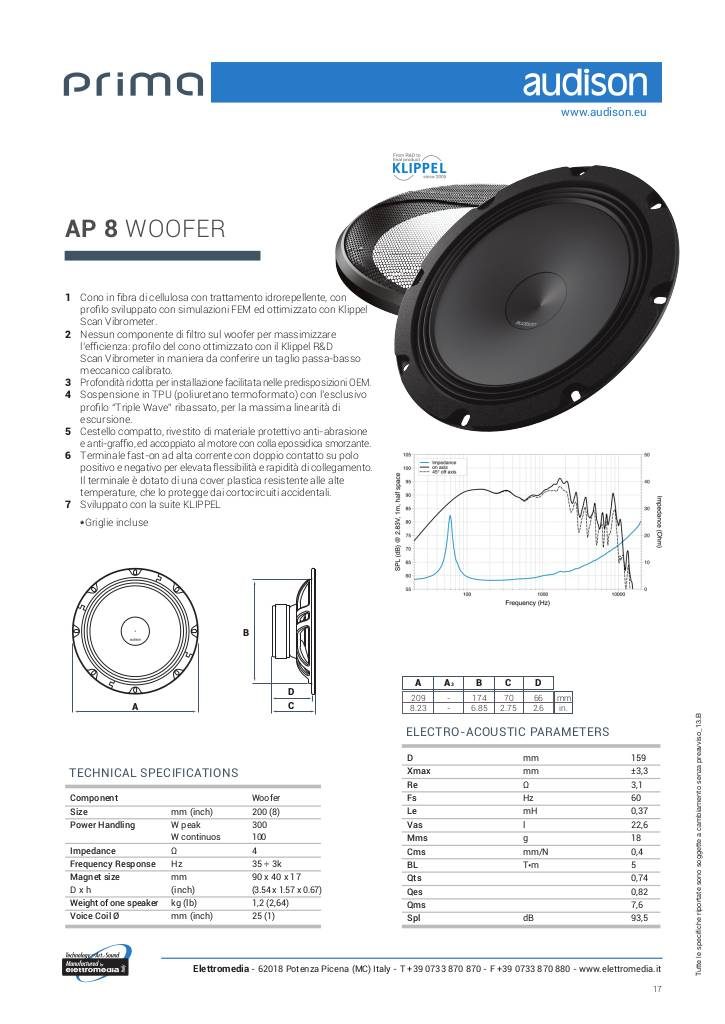

20140211153140-ap-8-scheda-tecnica.pdf

Manuale utente

20140211153140-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison AP 8 Technical Specifications

  • Nominal diameter 200 mm (8")
  • Impedance 4 Ohm
  • Power handling - Peak 300 W
  • Power handling - Continuous 100 W
  • Sensitivity 93.5 dB
  • Frequency response 35 ÷ 3k Hz
  • Voice coil Ø 25 mm
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions D x d x h 90 x 40 x 17 mm (in.)
  • Xmax 3.3 mm (0.13 in)
  • Weight 1.2 kg

Electrical-acoustic Specifications

  • Re 3.1 Ohm
  • Fs 60 Hz
  • Le 0.3 mH
  • Vas 20 l (0.706 ft)
  • Mms 19 g (0.67 oz)
  • Cms 0.35 mm/N
  • BL 5.4 T-m
  • Qts 0.7
  • Qes 0.8
  • Qms 5
