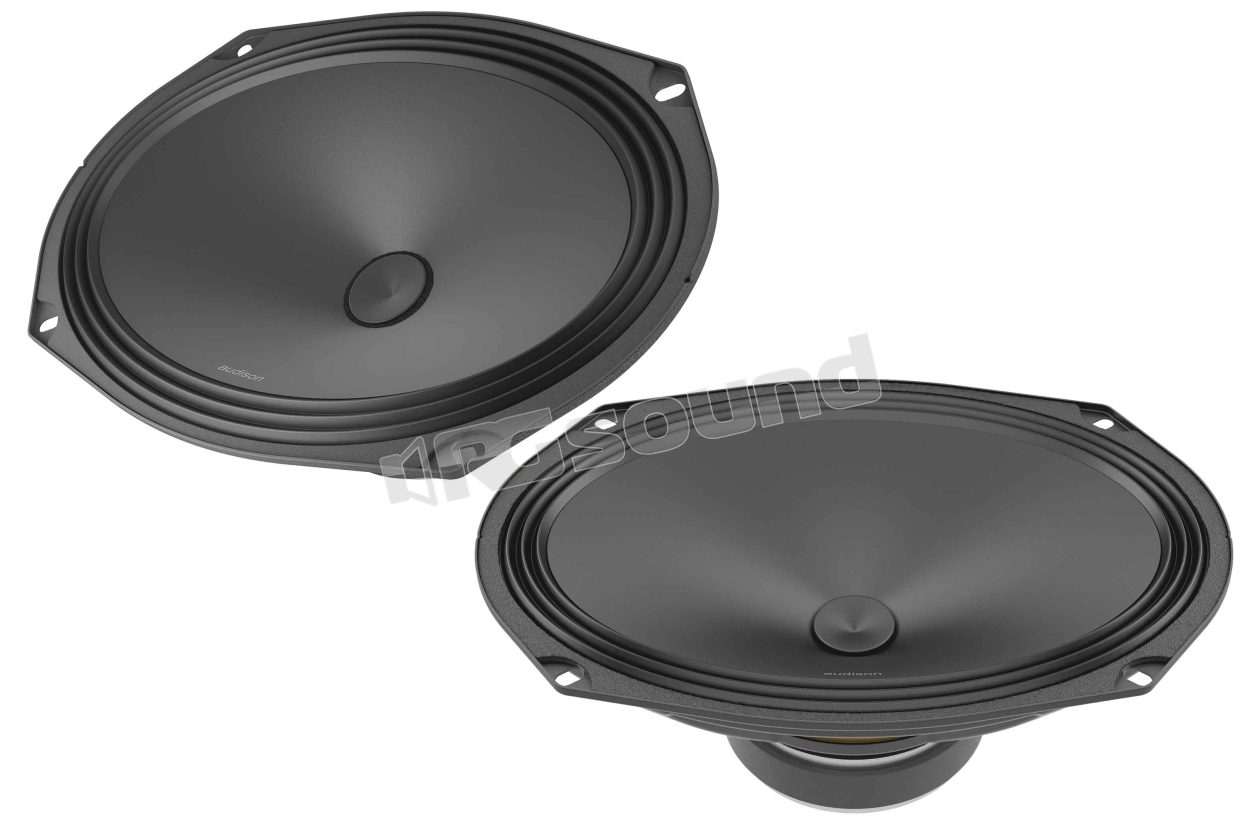

AP 690 Pair of 6x9" elliptical woofers

Audison
Your price:
€ 109,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
6x9''
MAX Power
300 Watt
RMS Power
100 Watt
Frequency Response
40 - 5000 Hertz
Sensitivity
95 dB
Impedance
4 Ohm

Audison AP 690 Pair of 6x9" Elliptical Woofers

Audison AP 690 is ideal for car models with doors equipped with elliptical speakers. The Audison R&D team has optimized the electroacoustic parameters for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact basket size to facilitate installation.

The mechanical cutting of the dust cap in the woofer cone ensures that they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power and impeccable control even in the most aggressive dynamic transients. The dual Faston connectors with direct connection to the tweeter accelerates the connection of the speakers, always guaranteeing perfect contact.

AP 690 Features

  • 25 mm pure copper voice coil, for high power and exceptional low frequency handling and control.
  • Treated water-repellent paper cone, with a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan vibrometer.
  • Reduced mounting depth, which simplifies OEM installation.
  • "Triple Wave" surround profile for maximum stroke linearity.
  • Compact basket, protected by abrasion-resistant and scratch-resistant coating, the motor fixed with damping epoxy adhesive.
  • High current quick connector with dual positive contact and negative poles for high flexibility and quick connection.

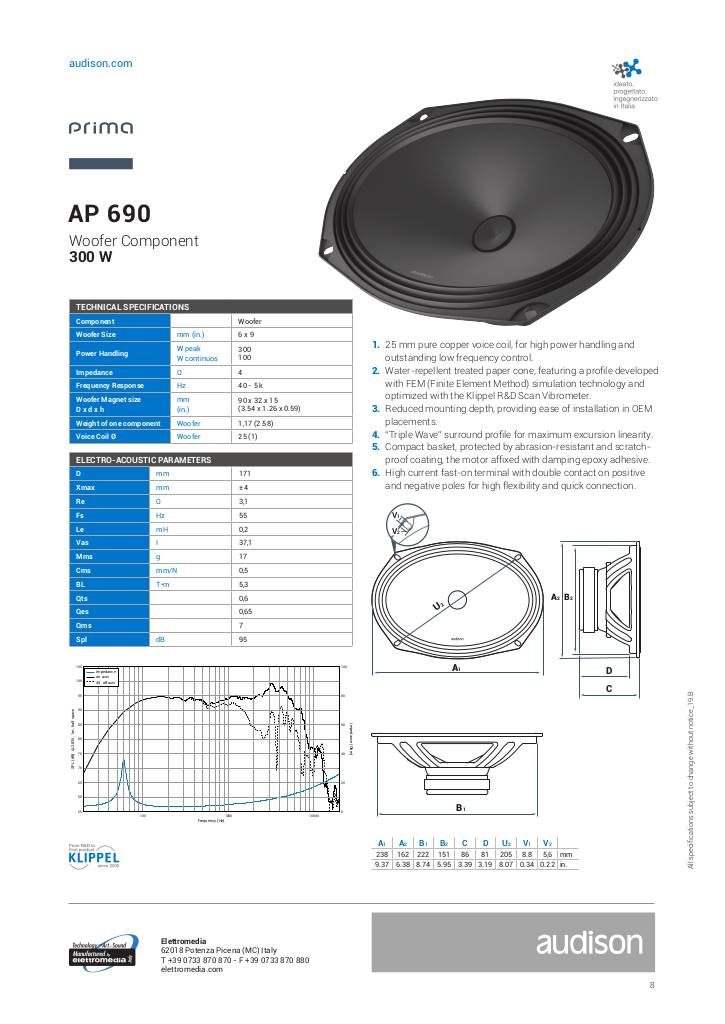

Scheda tecnica

n-20190314164345-audison-prima-ap690-tech-sheet.pdf

Audison AP 690 Technical Specifications

  • Nominal diameter 690 mm (27.17 inches)
  • Impedance 4 Ohm
  • Power handling - Peak 300 W
  • Power handling - continuous 100 W
  • Sensitivity 95 dB
  • Frequency response 40 - 5 k Hz
  • Magnet material HIGH DENSITY FLUX FERRITE
  • Magnet dimensions D x d x h 90 x 32 x 15 mm (in.)
  • Cone material Water-repellent treated paper cone
  • Xmax 4 mm (0.16 in)

Electrical-Acoustic Specifications

  • Re 3.1 Ohm
  • Fs 55 Hz
  • Le 0.2 mH
  • Vas 37.1 l (1.31 ft)
  • Mms 17 g (0.6 oz)
  • Cms 0.5 mm/N
  • BL 5.3 T-m
  • Qts 0.6
  • Qms 7
€ 109,00 Price incl. VAT
