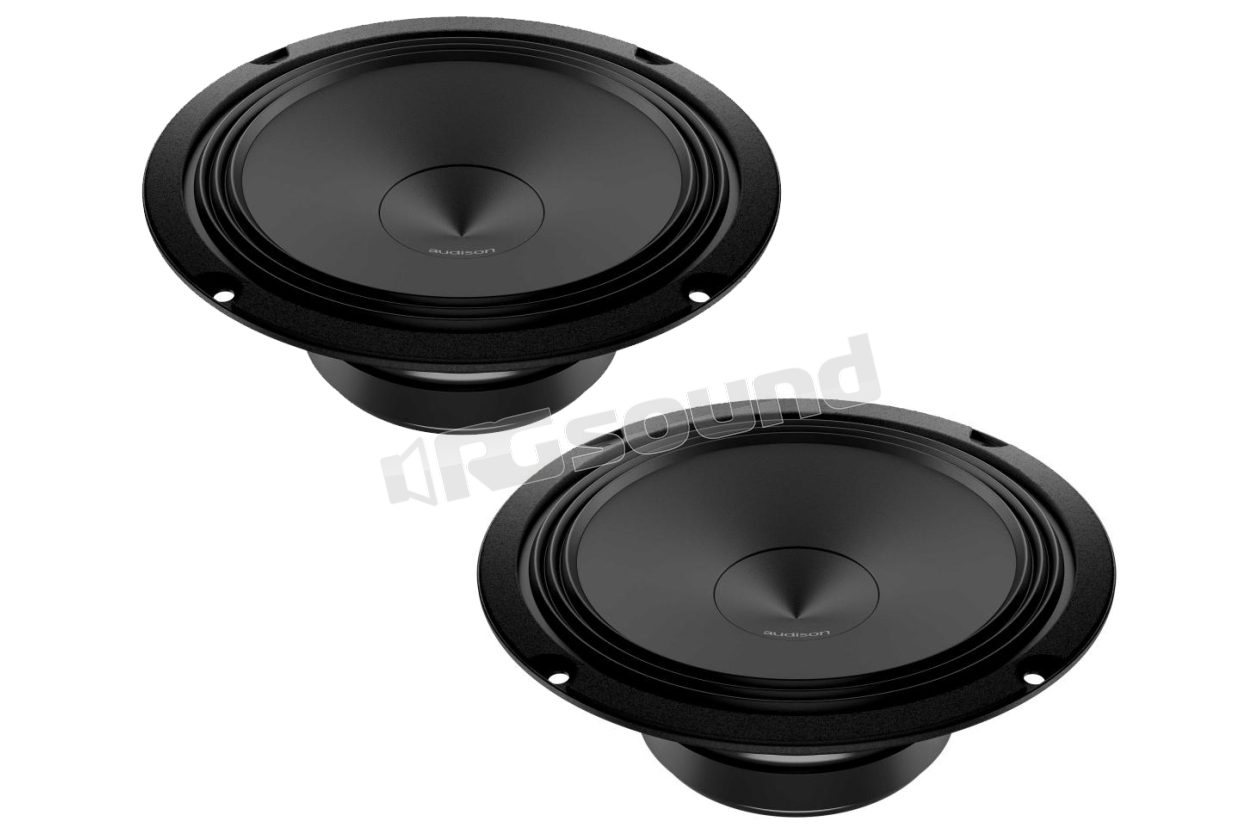

AP 6.5 Pair of 165 mm 4 Ohm woofers

Audison
Your price:
€ 86,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
210 Watt
RMS Power
70 Watt
Frequency Response
60 - 5.000 Hertz
Sensitivity
93,5 dB
Impedance
4 Ohm
Weight
1,6 Kg
Installation Depth
56 mm
Woofer Material
Cellulosa trattata

Audison AP 6.5 Pair of 165 mm woofers at 4Ω

The AP 6.5 are equipped with a 32 mm pure copper voice coil, for high power handling and exceptional bass control. All woofers do not use any filter, to maximize efficiency: the dome profile has been optimized with the Klippel R & D scanning vibrometer to obtain a calibrated mechanical cut-off frequency low-pass. The surround features the exclusive Triple Wave shallow profile, for maximum excursion linearity.

AP 6.5 Features

  • 32 mm pure copper voice coil, for high power handling and exceptional bass control.
  • Cone in water-repellent treated paper, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan vibrometer.
  • To maximize efficiency no passive crossover is required: the cone is optimized with the Klippel R&S scanning vibrometer to obtain a calibrated mechanical cut-off frequency for low-pass.
  • Reduced mounting depth, to facilitate installation in OEM positions.
  • TPU sphere (thermoplastic polyurethane), with the exclusive "Triple Wave" shallow profile, for maximum excursion linearity.
  • Compact basket, protected by an anti-abrasion and anti-scratch coating, the motor is fixed with damping epoxy adhesive.
  • High current fast-on terminal with dual contact on positive and negative poles for high flexibility and quick connection.
  • The terminal is equipped with a temperature-resistant plastic cover, which protects it from accidental short circuits.
  • Developed with the KLIPPEL suite.

Scheda tecnica

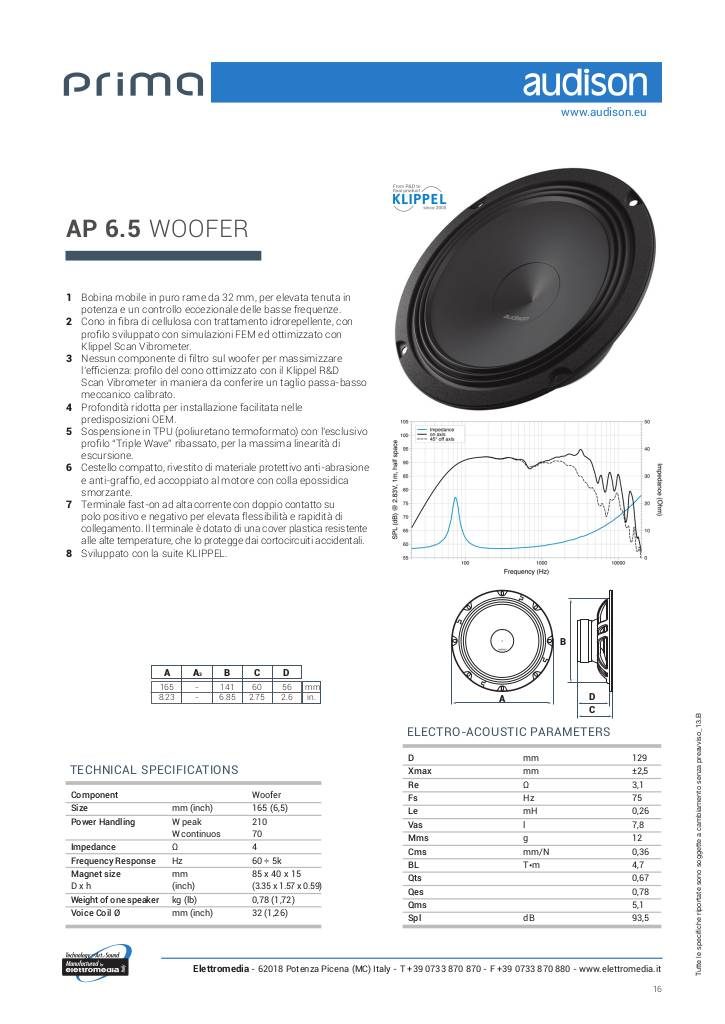

20140211152647-ap-65-scheda-tecnica.pdf

Manuale utente

20140211152647-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison AP 6.5 Technical Specifications

  • Nominal diameter 165 mm (6.5")
  • Impedance 4 Ohm
  • Power handling - Peak 210 W
  • Power handling - continuous 70 W
  • Sensitivity 93.5 dB
  • Frequency response 60 ÷ 5k Hz
  • Voice coil Ø 32 mm
  • Magnet dimensions D x d x h 85 x 40 x 15 mm (in.)
  • Xmax 2.5 mm (0.1 inches)

Electrical-acoustic specifications

  • Re 3.1 Ohm
  • Fs 80 Hz
  • Le 0.23 mH
  • Vas 7.6 l (0.268 ft)
  • Mms 12 g (0.423 oz)
  • Cms 0.31 mm/N
  • BL 4.7 T•m
  • Qts 0.7
  • Qes 0.8
  • Qms 4.7
€ 86,90 Price incl. VAT
