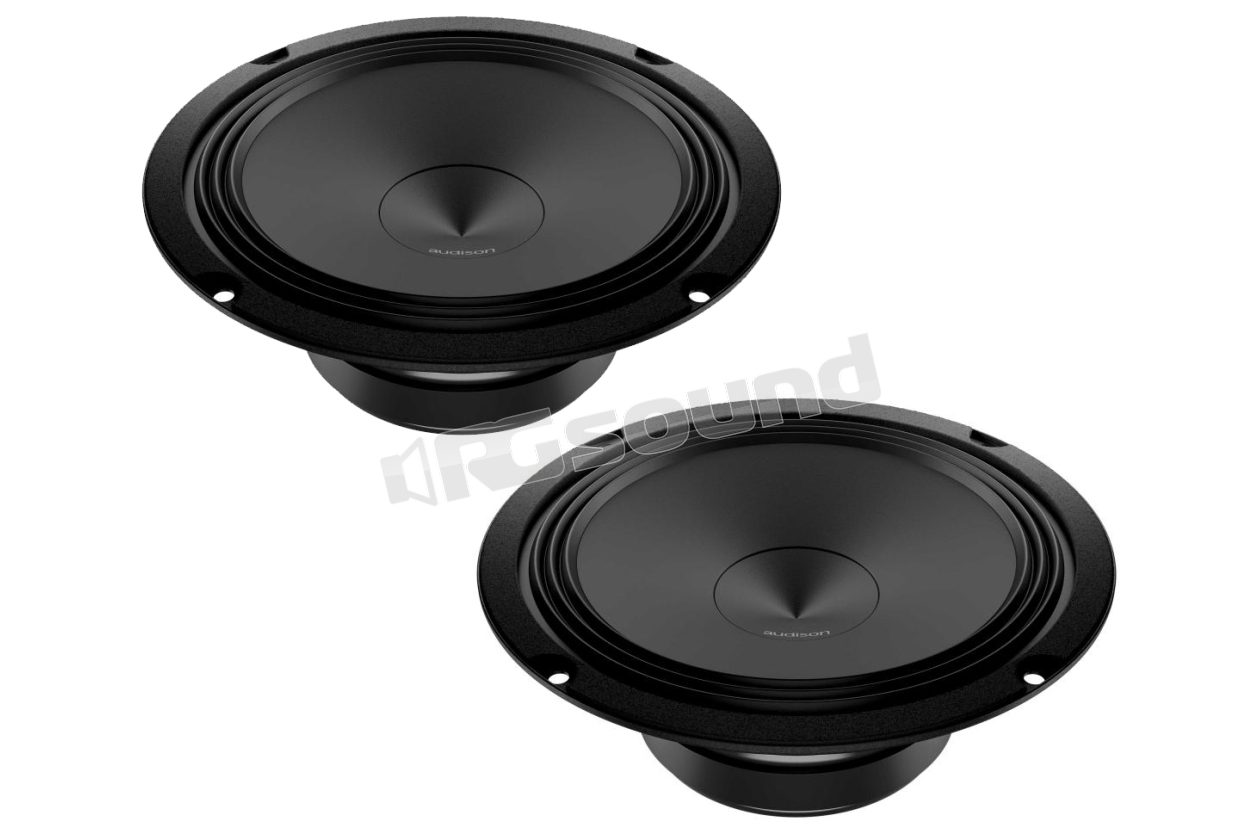

AP 6.5 2 Ohm Pair of 165mm woofers

Audison
Your price:
€ 95,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
210 Watt
RMS Power
70 Watt
Frequency Response
60 - 5.000 Hertz
Sensitivity
93.5 dB
Impedance
2 Ohm
Installation Depth
56 mm
Woofer Material
Cellulosa trattata

Audison AP 6.5 2 Ohm Pair of 165mm woofers


The reduced 2 Ohm impedance allows you to take full advantage of modern amplifiers and makes these new AP 6.5 suitable for modern vehicles that are already equipped with 2Ω woofers. With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality.


The target was achieved through exhaustive research combined with long listening sessions that brought the speakers to a level of performance that was believed to be unreachable in OEM Integration.

AP 6.5 is also available with dedicated tweeter and crossover.

AP 6.5 2 Ohm Features

  • 2Ω impedance to take full advantage of 65 W per channel at 2Ω power of the AP8.9 bit amplifier.
  • Resonance frequency of 75 Hz to extend the frequency response down to 50 Hz and increase SPL in the low range.
  • 25 mm voice coil to maximize efficiency which reaches 95 dB.
  • Voice coil with winding height of 10 mm to increase maximum linear excursion up to 2.8 mm and minimize distortion, even at high listening levels.
  • Cellulose fiber cone with water-repellent treatment, with profile developed with FEM simulations and optimized with Klippel Scan Vibrometer.
  • Reduced mounting depth, to facilitate installation in OEM provisions.
  • TPU suspension (thermoformed polyurethane) with the exclusive lowered "Triple Wave" profile, for maximum excursion linearity.
  • Compact basket, lined with anti-abrasion and anti-scratch protective material, and coupled to the motor with damping epoxy adhesive.
  • Fast-on terminal with high current and double contact on positive and negative pole for high flexibility and connection speed. The terminal is equipped with a plastic cover resistant to high temperatures, which protects it from accidental short circuits.
  • Developed with the KLIPPEL suite.


WARNING: BULK version, without packaging.

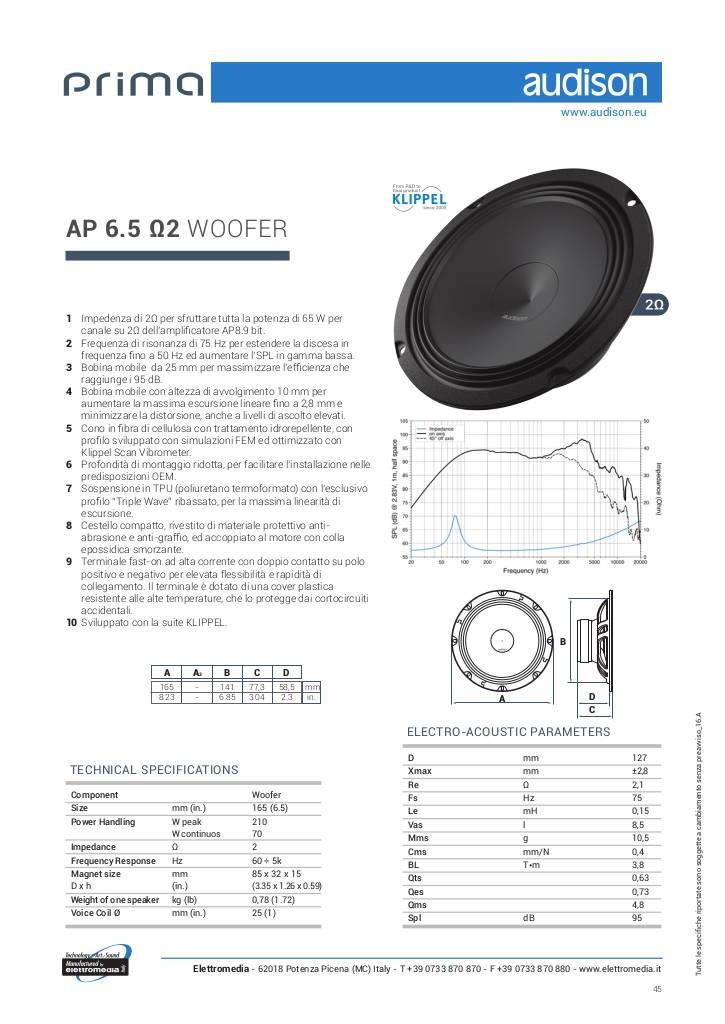

Scheda tecnica

n-20170626170711-ap-6-5-ohm2-scheda-tecnica-tech-sheet.pdf

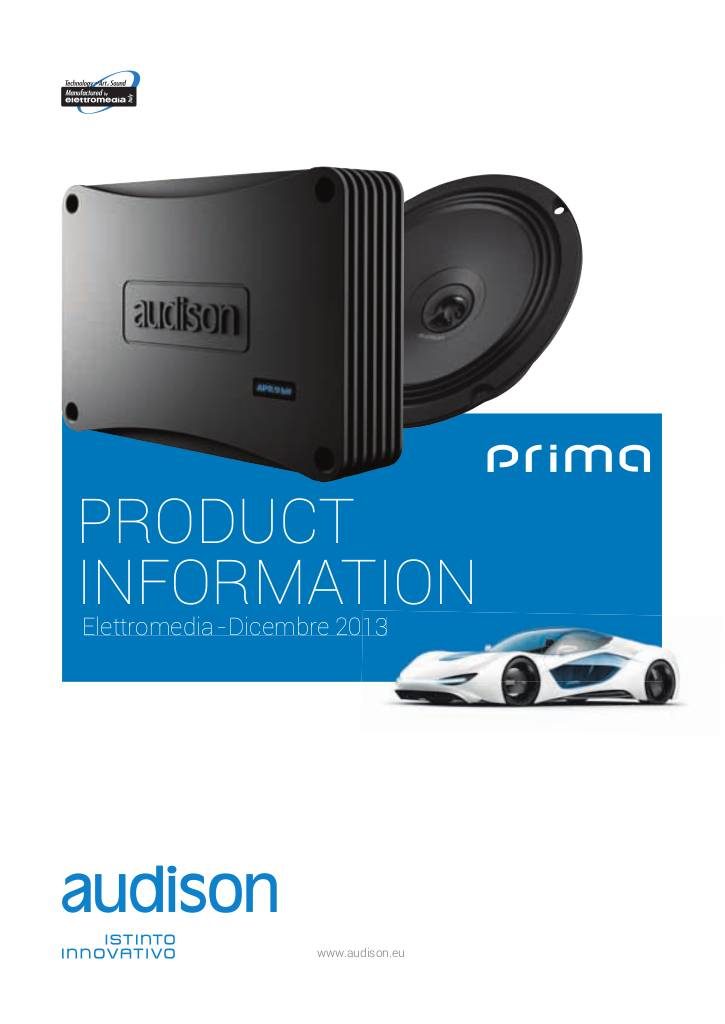

Manuale utente

20140211152647-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison AP 6.5 2 Ohm Technical Specifications

  • Component Woofer
  • Size 165 mm (6.5")
  • Power handling 70 W of continuous power
  • 210 W of peak power
  • Impedance 2 Ω
  • Frequency response 60 ÷ 5k Hz
  • Sensitivity 93.5 dB/Spl
  • High flux density Ferrite magnet
  • Cone Dome in water-repellent treated paper
  • Installation depth 56 mm
€ 95,00 Price incl. VAT
