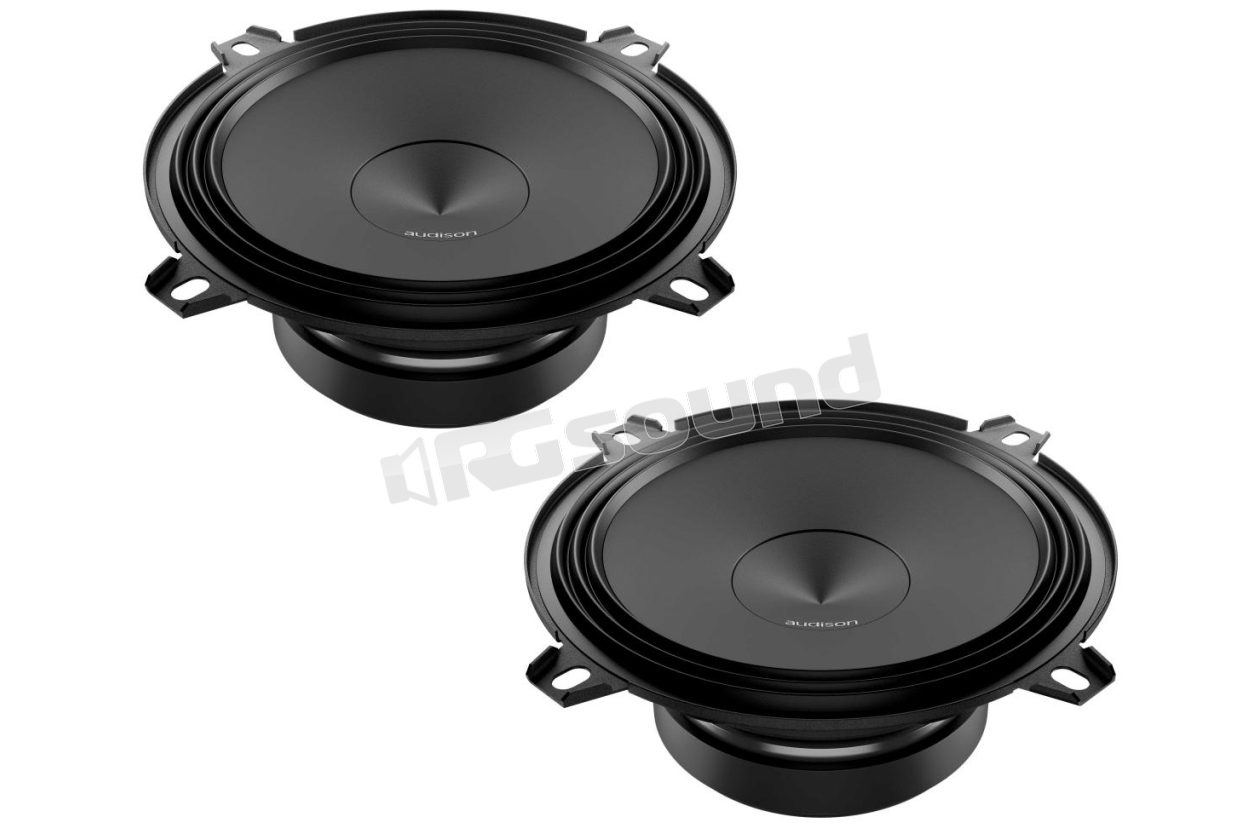

AP 5 Pair of 130mm 4 Ohm woofers

Audison
Your price:
€ 86,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
150 Watt
RMS Power
50 Watt
Frequency Response
70 - 5.000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
1,3 Kg
Installation Depth
48,5 mm
Woofer Material
Cellulosa trattata

Audison AP 5 Pair of 130mm 4 Ohm woofers

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with lengthy listening sessions that brought the speakers to a level of performance that was believed to be unreachable in OEM Integration.

AP 5 Features

  • Pure copper voice coil 32 mm, for high power handling and exceptional bass frequency control.
  • Water-repellent treated paper cone, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan vibrometer.
  • To maximize efficiency, a passive crossover is not necessary: the cone is optimized with the Klippel scanning vibrometer to achieve a calibrated mechanical low-pass cutoff frequency.
  • Reduced mounting depth, to facilitate installation in OEM positions.
  • TPU sphere (thermoplastic polyurethane) with exclusive "triple wave" profile for maximum stroke linearity.
  • Compact basket, protected by an abrasion and scratch-resistant coating, the motor is fixed with damping epoxy adhesive.
  • High-current fast-on terminal with dual contact on positive and negative poles to ensure installation flexibility and connection speed.
  • The terminal is equipped with a temperature-resistant plastic cover that protects it from accidental short circuits.
  • Developed with the KLIPPEL suite.

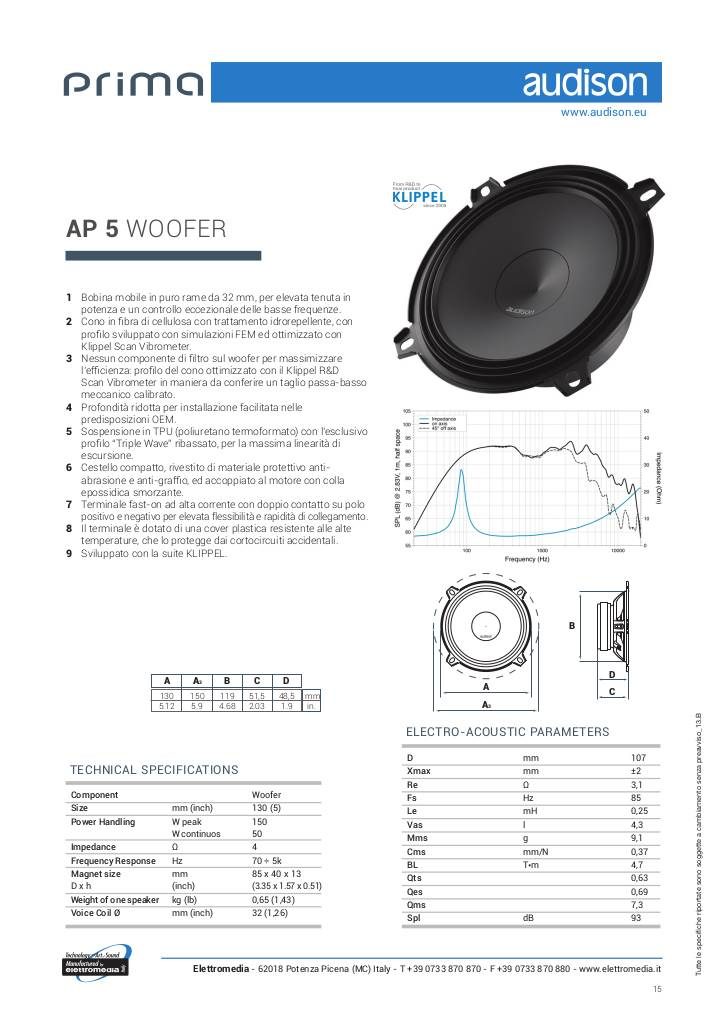

Scheda tecnica

20140211151424-ap-5-scheda-tecnica.pdf

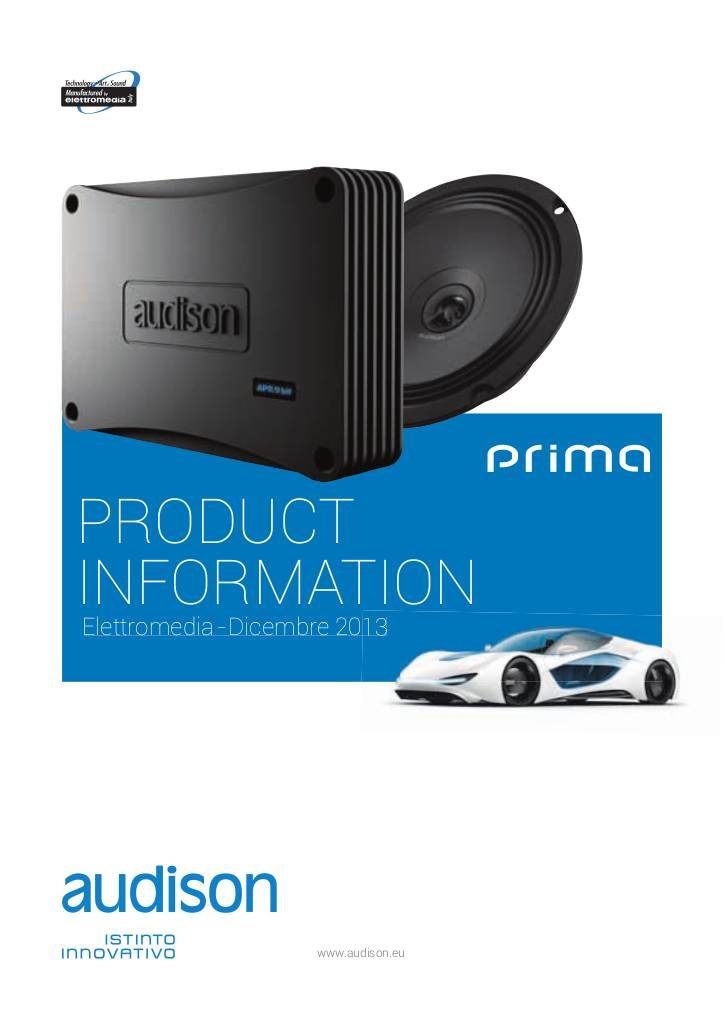

Manuale linea Prima

20140211151424-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison AP 5 Technical Specifications

  • Nominal diameter 130 mm (5")
  • Impedance 4 Ohm
  • Power handling - Peak 150 W
  • Power handling - Continuous 50 W
  • Sensitivity 93 dB
  • Frequency response 70 ÷ 5k Hz
  • Voice coil Ø 32 mm
  • Magnet dimensions D x d x h 85 x 40 x 13 mm (in.)
  • Xmax 2 mm (0.08 in)
  • Weight 0.65 kg

Electrical-acoustic specifications

  • Re 3.1 Ohm
  • Fs 90 Hz
  • Le 0.25 mH
  • Vas 4 l (0.141 ft)
  • Mms 9 g (0.317 oz)
  • Cms 0.34 mm/N
  • BL 4.6 T-m
  • Qts 0.68
  • Qes 0.74
  • Qms 8
