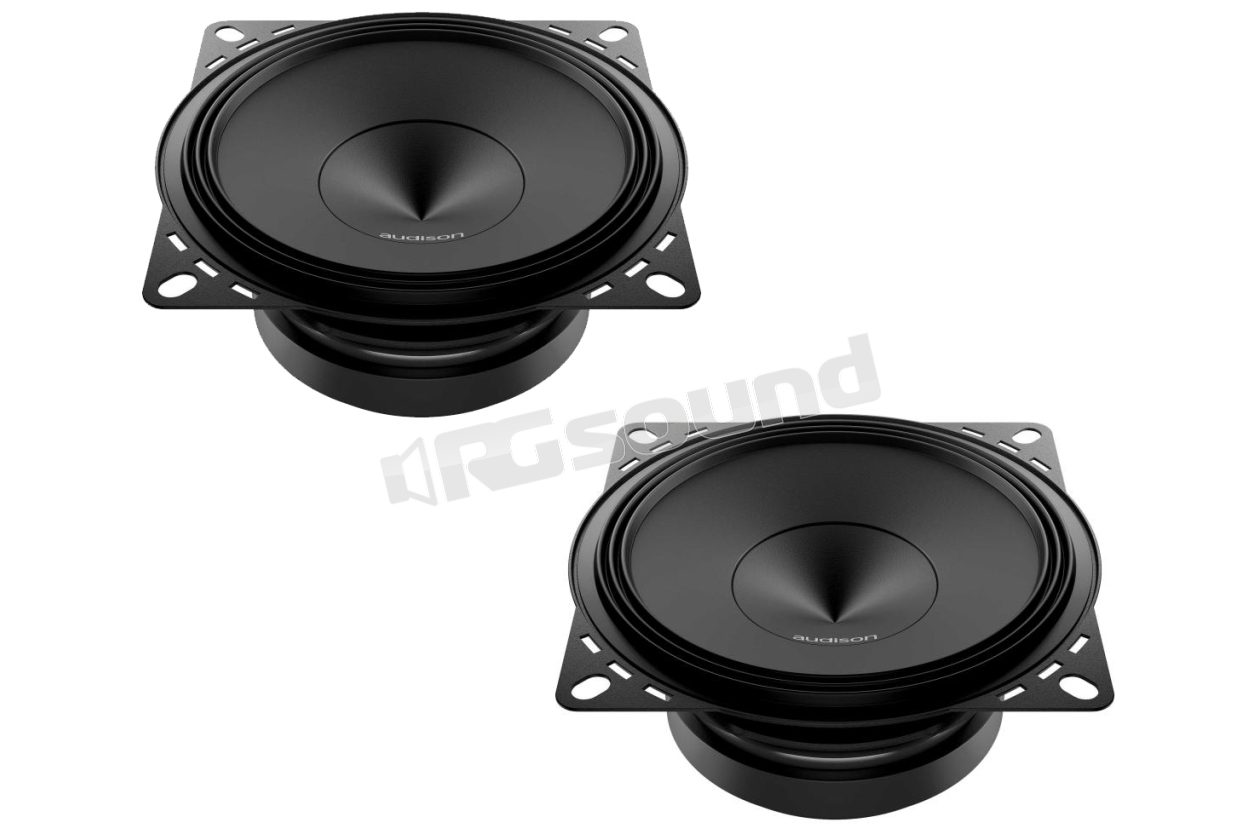

AP 4 Pair of 100mm mid-woofers

Audison
Your price:
€ 76,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
100 mm
MAX Power
120 Watt
RMS Power
40 Watt
Frequency Response
80 - 7.500 Hertz
Sensitivity
91 dB
Impedance
4 Ohm
Weight
0.8 Kg
Installation Depth
41 mm
Woofer Material
Cellulosa trattata

Audison AP 4 Pair of 100mm midrange speakers

With the Prima speaker line, the Audison development team set itself a difficult mission: to combine the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhaustive research combined with long listening sessions that brought the speakers to a level of performance that was believed to be unattainable in OEM Integration.

AP 4 Features

  • Very extended frequency response, both at high and low frequencies, combined with high efficiency.
  • No passive crossover is necessary to maximize efficiency: the cone is optimized with the Klippel scanning vibrometer to obtain a calibrated mechanical low-pass cutoff frequency.
  • Cone in hydrophobic treated paper, characterized by a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan vibrometer.
  • Reduced mounting depth, to facilitate installation in OEM positions.
  • Dome in TPU (thermoplastic polyurethane), with the exclusive "Triple Wave" profile shallow, for maximum excursion linearity.
  • Pure copper 25 mm voice coil, which ensures precise balance in the mid-high frequency range.
  • Compact basket, protected by an anti-abrasion and anti-scratch coating.
  • Developed with the KLIPPEL suite.

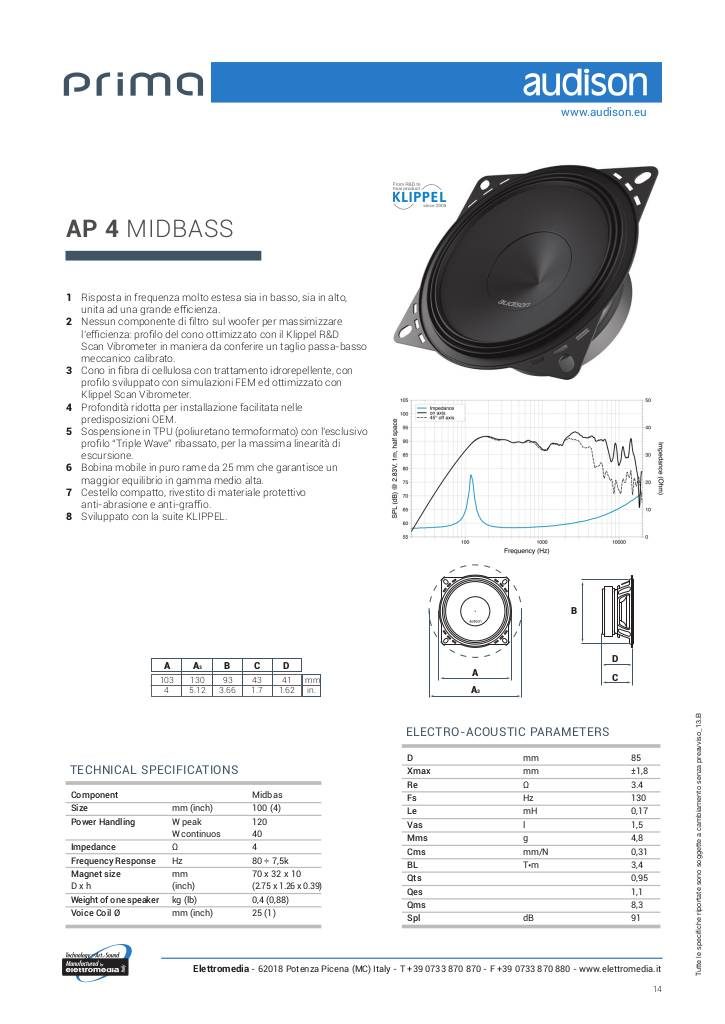

Scheda tecnica

20140211150238-ap-4-scheda-tecnica.pdf

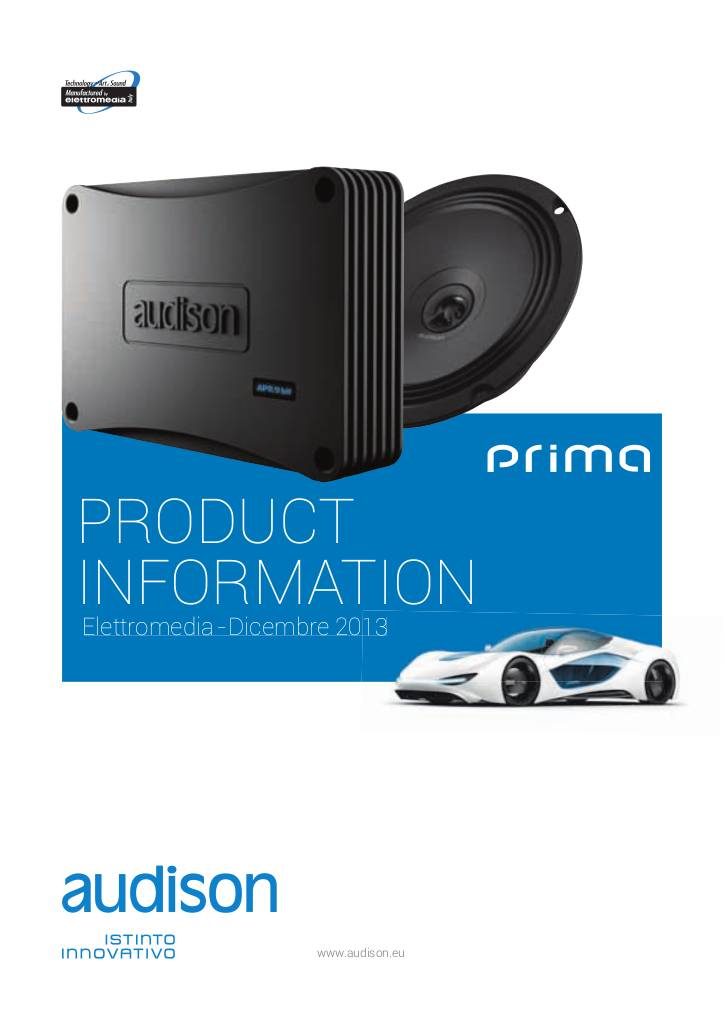

Manuale utente

20140211150238-121213-audison-prima-cartella-stampa-ita-low.pdf

Audison AP 4 Technical Specifications

  • Nominal diameter 100 mm (4 inches)
  • Impedance 4 Ohm
  • Power handling - Peak 120 W
  • Power handling - continuous 40 W
  • Sensitivity 91 dB
  • Frequency response 80 ÷ 7.5k Hz
  • Voice coil Ø 25 mm
  • Magnet dimensions D x d x h 70 x 32 x 10 mm (in.)
  • Xmax 1.8 mm (0.07 in)
  • Weight 0.4 kg

Electrical-acoustic specifications

  • Re 3.2 Ohm
  • Fs 125 Hz
  • Le 0.16 mH
  • Vas 1.5 l (0.053 ft)
  • Mms 5 g (0.176 oz)
  • Cms 0.3 mm/N
  • BL 3.4 T-m
  • Qts 1
  • Qes 1.2
  • Qms 7.6
€ 76,90 Price incl. VAT
