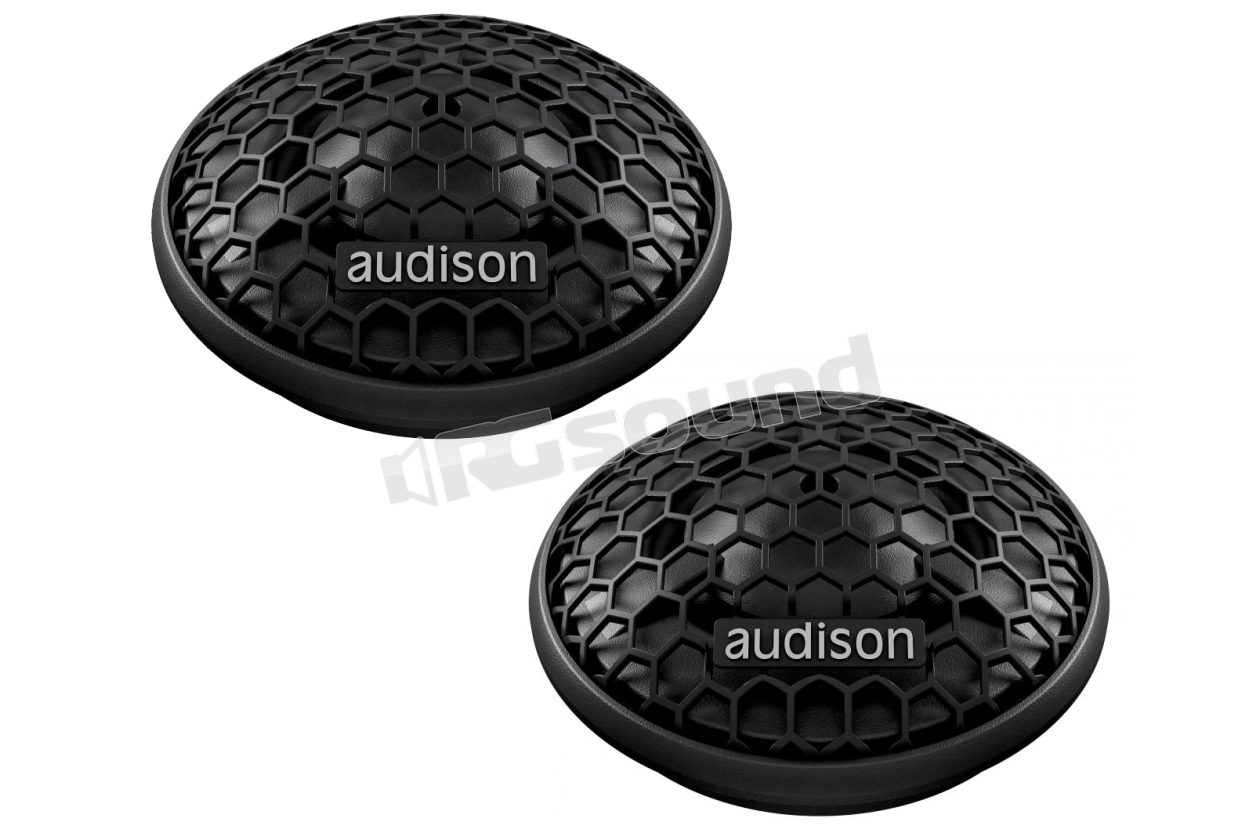

AP 1 Pair of 26mm tweeters with pair of dedicated crossovers

Audison
Your price:
€ 76,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Tweeter
Dome Size
26 mm
MAX Power
150 Watt
Frequency Response
2.000 - 20.000 Hertz
Sensitivity
90 dB
Impedance
4 Ohm
Outer Diameter
44 mm
Installation Depth
8,5 mm
Tweeter Material
Neodimio

Audison AP 1 Pair of 26mm tweeters with pair of dedicated crossovers

With the Prima speaker line, the Audison development team set itself a difficult mission: combining the stringent requirements dictated by OEM Integration with Audison audio quality. The target was achieved through exhausting research combined with lengthy listening sessions that brought the speakers to a level of performance that was believed to be unattainable in OEM Integration.

AP 1 Features

  • The 26 mm diameter diaphragm, combined with a wide roll surround, guarantees maximum efficiency and reduced resonance frequency.
  • An acoustic lens designed to compensate for and fine-tune the frequency response anomalies in the car in the 10 kHz and 13 kHz band caused by restrictive OEM grilles in critical positions.
  • Dedicated extremely compact passive crossover APCX TW supplied with the product, optimized for OEM integration, with an attenuation switch (0 dB, +2 dB) to tune the response in the car based on different installation conditions.
  • The passive crossovers are supplied with "OEM integration compliant" quick connectors. The ends, different for each of the two poles, eliminate any possible connection error and speed up installation times.
  • A wide range of mounting accessories is supplied with the product, for great flexibility of mounting in OEM integration.
  • The ultralight CCAW (Copper Clad Aluminium Wire) ferrofluid-cooled voice coil is wound in aluminum wire on a Kapton support, for better heat dissipation.
  • The dome profile and motor are optimized with FEM (Finite Element Method) simulation.
  • Developed with the KLIPPEL suite.

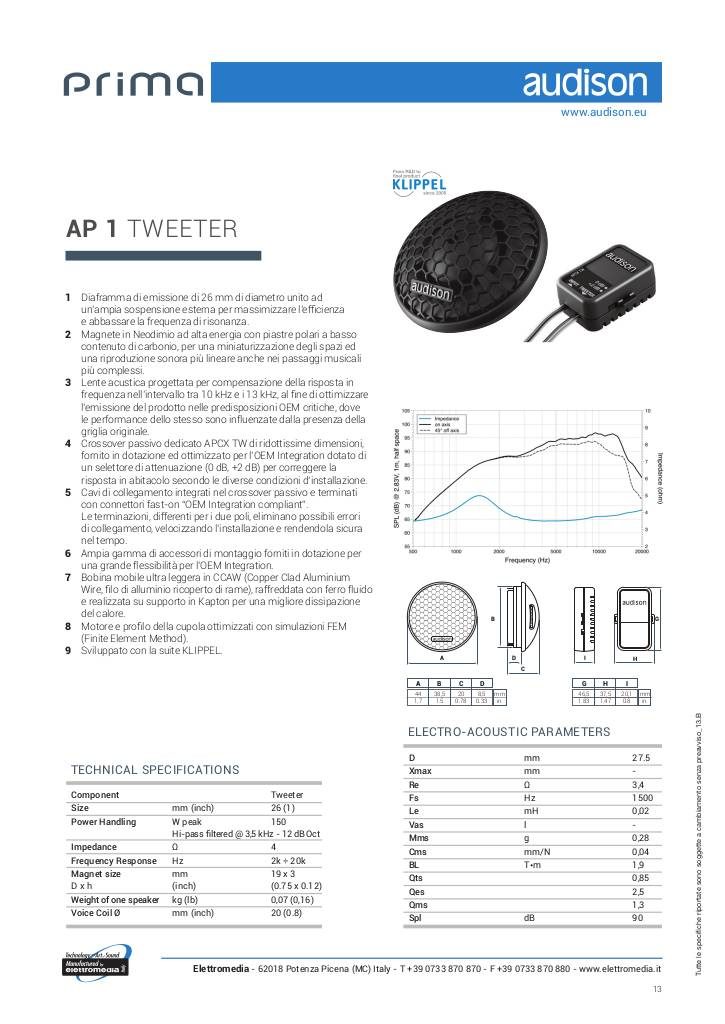

Scheda tecnica

20140211145718-ap-1-scheda-tecnica.pdf

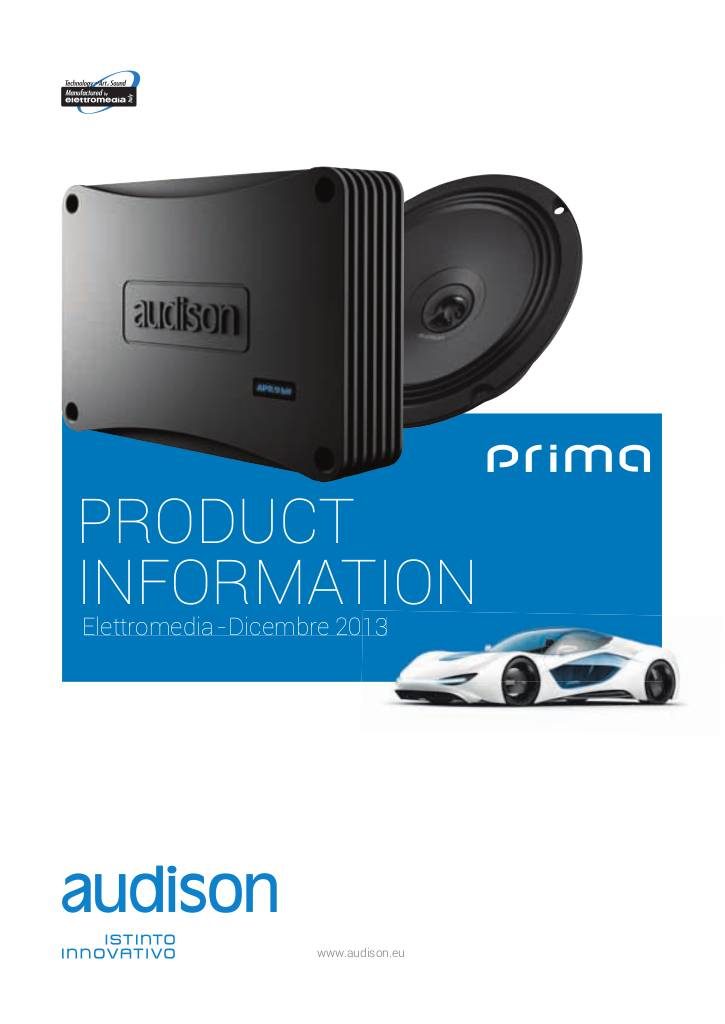

Manuale utente

20140211145718-121213-audison-prima-cartella-stampa-ita-low.pdf

2x Tweeter 2x Crossover

Audison AP 1 Technical specifications

  • Nominal diameter 26 mm (1 inch)
  • Impedance 4 Ohm
  • Power handling - Peak 150 W
  • Sensitivity 93 dB
  • Frequency response 2k ÷ 20k Hz
  • Voice coil Ø 20 mm (0.79 inch)
  • Magnet material NEODYMIUM
  • Magnet dimensions D x d x h 19 x 3 mm (in.)
  • Dome material TETOLONE FIBER
  • Crossover power handling Hi-pass filtered at 3.5 kHz - 12 dB Oct

Electrical-acoustical specifications

  • Re 3.5 Ohm
  • Fs 1500 Hz
  • Le 0.02 mH
  • Mms 0.16 g
  • Cms 0.09 mm/N
  • BL 1.3 T-m
  • Qts 0.98
  • Qes 2.78
  • Qms 1.5
  • General
  • Weight 0.04 kg
  • Crossover weight 0.04 kg
€ 76,90 Price incl. VAT
