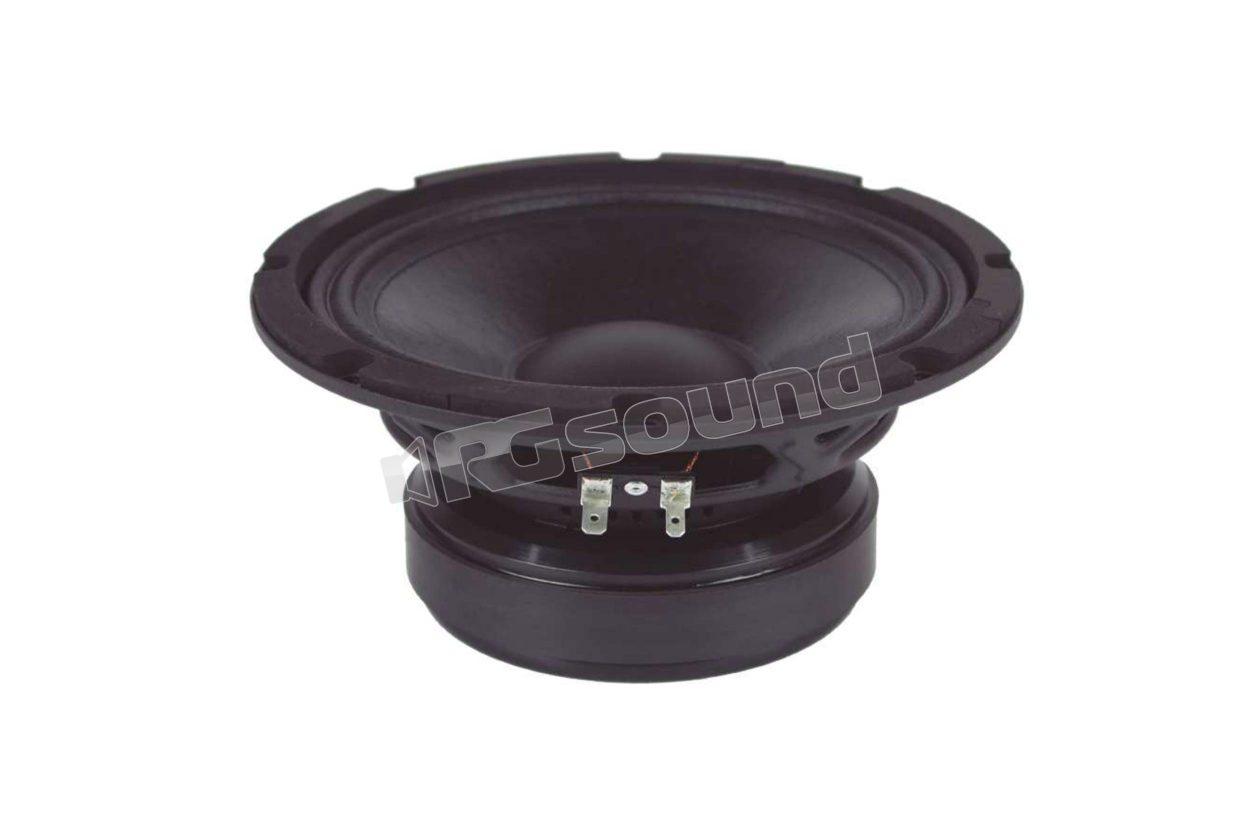

8WRS300 20cm woofer, 8 Ohm impedance

Beyma
Your price:
€ 92,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
70 - 4000 Hertz
Sensitivity
95 dB
Impedance
8 Ohm
Weight
3,5 Kg
Installation Depth
95 mm
Voice Coil Diameter
50,8 mm

Beyma 8WRS300 Woofer 20cm 8 Ohm impedance, maximum power 500 W and high sensitivity: 95 dB

Features

  • 2" copper wire coil
  • Optimized ceramic magnetic circuit FEA
  • Designed with MMSS technology
  • Low harmonic distortion and linear response
  • Waterproof cone
  • Steel frame and ferrite magnet

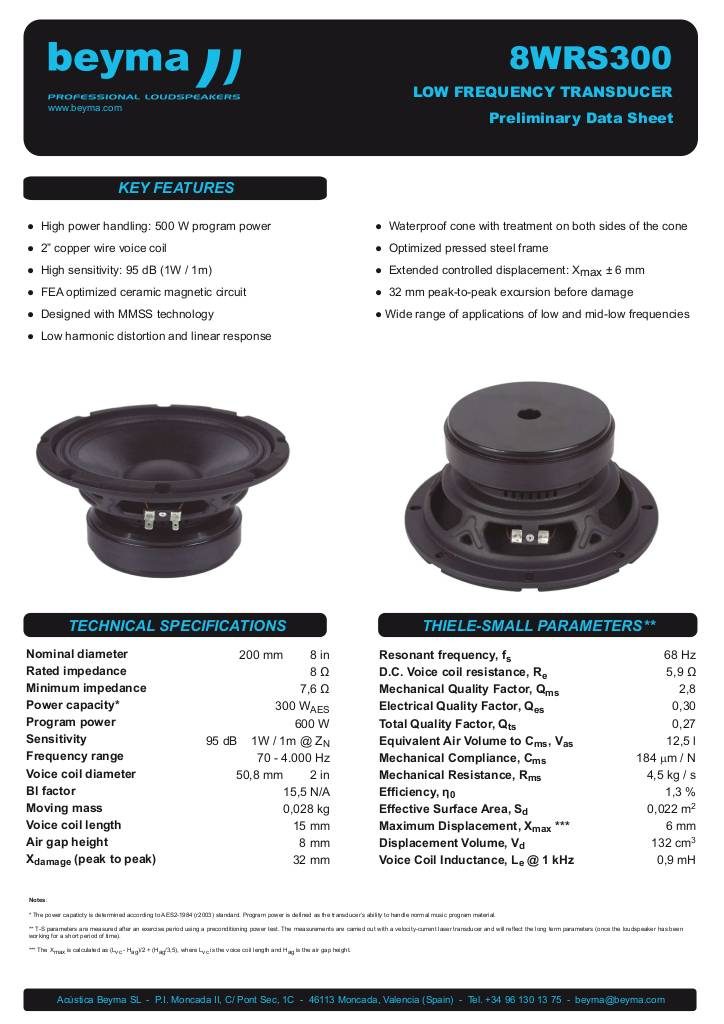

Scheda tecnica

n-20180504104041-8wrs300.pdf

Beyma 8WRS300 Technical specifications

  • Nominal diameter 200 mm 8 inches
  • Nominal impedance 8 Ohm
  • Minimum impedance 7.6 ohm
  • Nominal power 300 W AES
  • Program power 600 W
  • Sensitivity 95 dB 1 W/1 m @ ZN
  • Frequency range 70-4000 Hz
  • Voice coil diameter 50.8 mm 2 inches
  • BL factor 15.5 N/A
  • Moving mass 0.028 kg
  • Winding length 15 mm
  • Air gap height 8 mm
  • Xdamage pp 32 mm
  • Fs 68 Hz
  • Re 5.9 ohm
  • Qms 2.8
  • Qes 0.3
  • Qts 0.27
  • Vas 12.5 l
  • Cms 184 µm / N
  • Rms 4.5 kg / s
  • Efficiency %1.3
  • Sd 0.022 m²
  • Xmax 6 mm
  • Vd 132 cm³
  • Le @1 kHz 0.9 mH
  • Depth 95 mm 3.74 inches
  • Net weight 3.25 kg 7.16 pounds
  • Total weight 3.55 kg 7.8 pounds
  • Magnet Ferrite
€ 92,00 Price incl. VAT
