8MI100

Beyma
Your price:
€ 89,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
250 Watt
Frequency Response
150 - 7000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
3,1 Kg
Installation Depth
83 mm
Voice Coil Diameter
50 mm

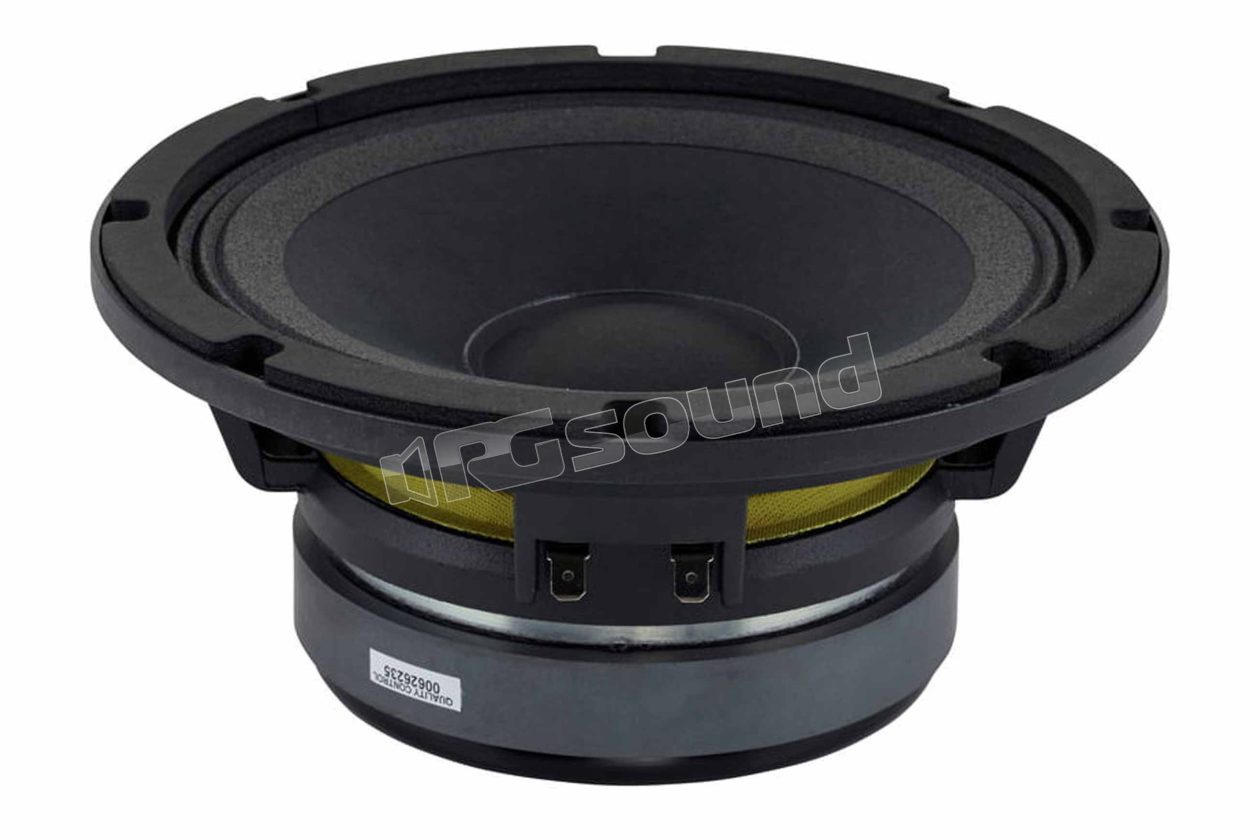

Beyma 8MI100 midrange woofer with good sensitivity (98 dB), controlled dispersion up to 3 kHz and low harmonic distortion

These characteristics make it suitable for high-quality sound reinforcement systems, particularly for live applications. Furthermore, it is mounted with a die-cast aluminum basket that reduces mechanical vibrations and increases heat dissipation. This fact, added to the use of a 2" high-quality voice coil, considerably increases the absorbed power up to 250 w AES.

Beyma 8MI100 technical features

Nominal diameter 200 mm 8 in

Nominal impedance 8 Ohm

Minimum impedance 6.9 ohm

Maximum power 250 W AES

Program power 500 W

Sensitivity 98 dB 1 W @ 1 m @ 2Π

Frequency range 150-7000 Hz

Voice coil diameter 51.7 mm 2 in

BL factor 9.8 N / A

Moving mass 0.017 kg

Winding length 9 mm

Air gap height 7 mm

Ferrite magnet

Fs 90 Hz

Re 6 ohm

qms 8.5

QES 0.6

Qts 0.56

Vas 13 l

Cms 186 μm / N

Rms 1.2 kg / s

Efficiency% 1.5

Sd 0.022 m²

Xmax 1 mm

Vd 22 cm³

Le @ 1 kHz 0.2 mH

Net weight 3.1 kg (6.83 lb)

Total weight 3.25 kg (7.15 lb)

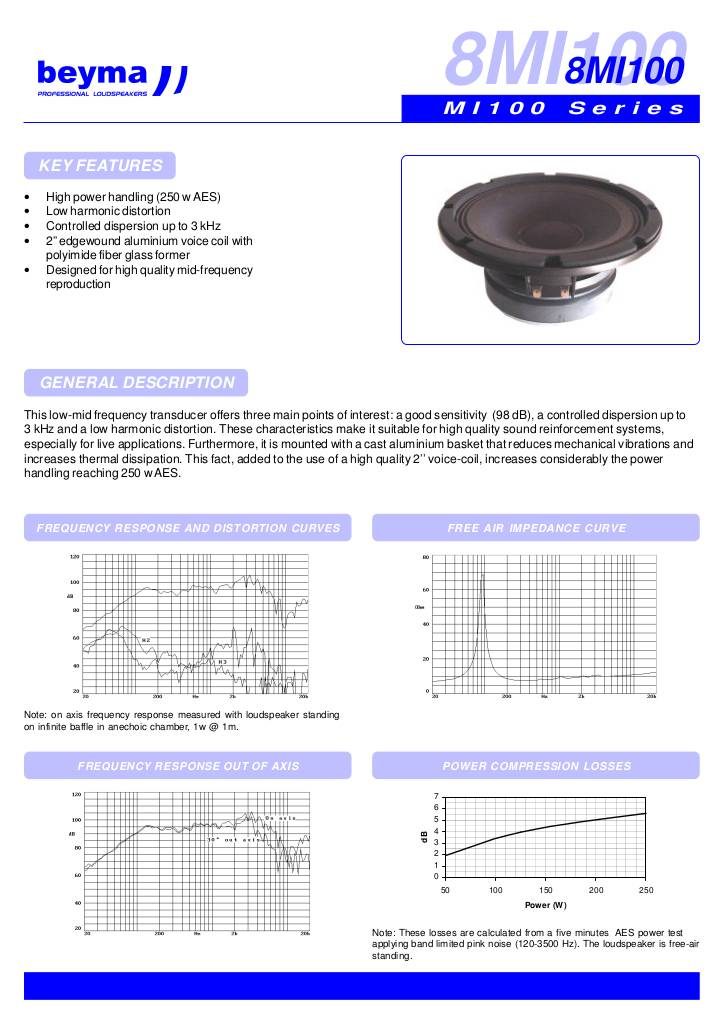

Scheda tecnica

n-20180326144501-8mi100-pdf.pdf
