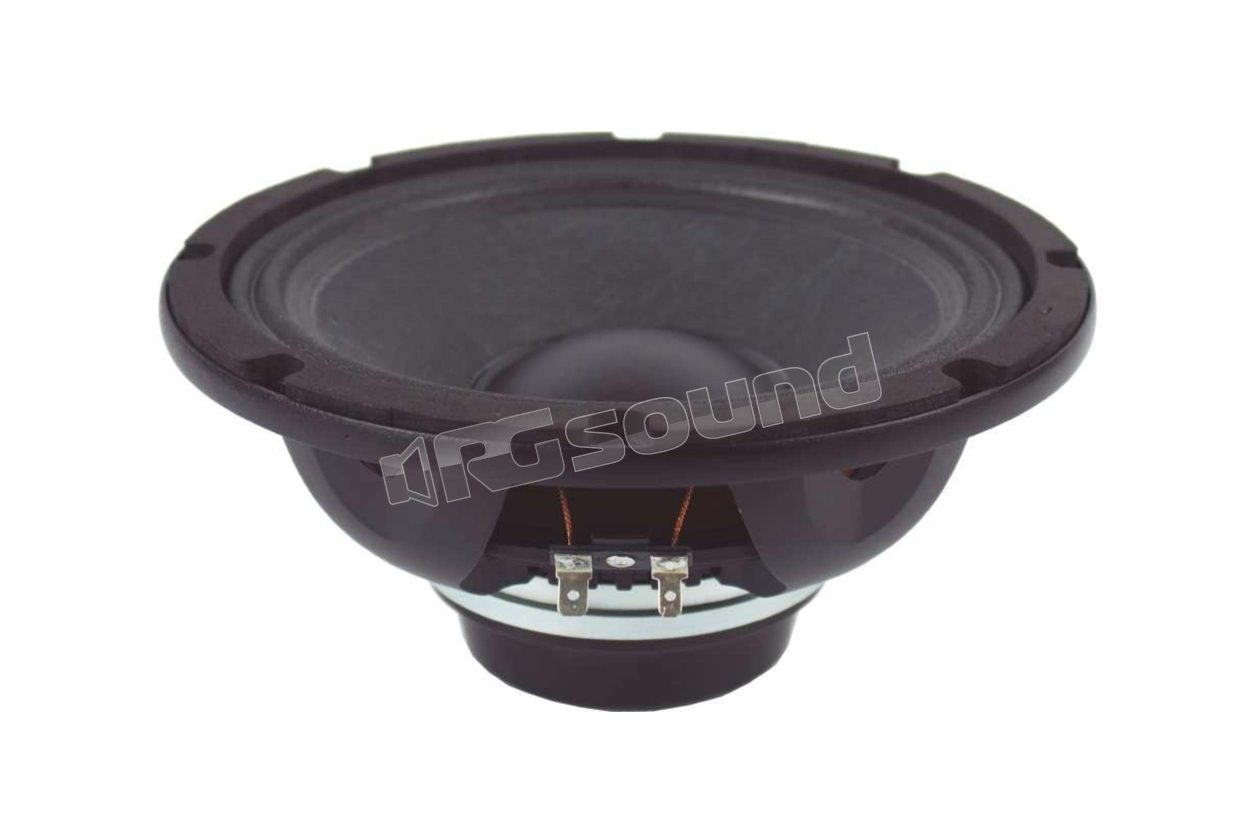

8MC300Nd

Beyma
Your price:
€ 215,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
80 - 4000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
2,2 Kg
Installation Depth
96 mm
Voice Coil Diameter
50,8 mm

Beyma 8MC300Ndwoofer 20cm, 8 Ohm impedance

Maximum power of 600 W and the exclusive cooling system of Malt Cross® technology

High sensitivity: 96 dB (1W / 1m)

Neodymium magnetic circuit optimized for FEA

Designed with MMSS technology

Optimized nonlinear behavior

Waterproof cone with treatment on both sides

2" copper coil

Aluminum demodulating ring

Extended controlled displacement: Xmax ± 6 mm

Beyma 8MC300Nd technical features

Nominal diameter 200 mm 8 in

Nominal impedance 8 Ohm

Minimum impedance 7.5 ohm

Power capacity 300 W AES

Program power 600 W

Sensitivity 96 dB 1 W @ 1 m @ 2Π

Frequency range 80-4000 Hz

Voice coil diameter 50.8 mm 2 in

BL factor 16 N/A

Moving mass 0.025 kg

Winding length 15 mm

Air gap height 7 mm

Xdamage pp 35 mm

Fs 76 Hz

Re 6.2 ohm

Qms 6.2

Qes 0.29

Qts 0.28

Vas 11.6 l

Cms 171 µm / N

Rms 2 kg/s

Efficiency %1.7

Sd 0.022 m²

Xmax 6 mm

Vd 132 cm³

Le @1 kHz0.5 mH

Depth 96 mm 3.78 in

Net weight 1.9 kg 4.18 lb

Total weight 2.2 kg 4.85 lb

Magnet Neodymium

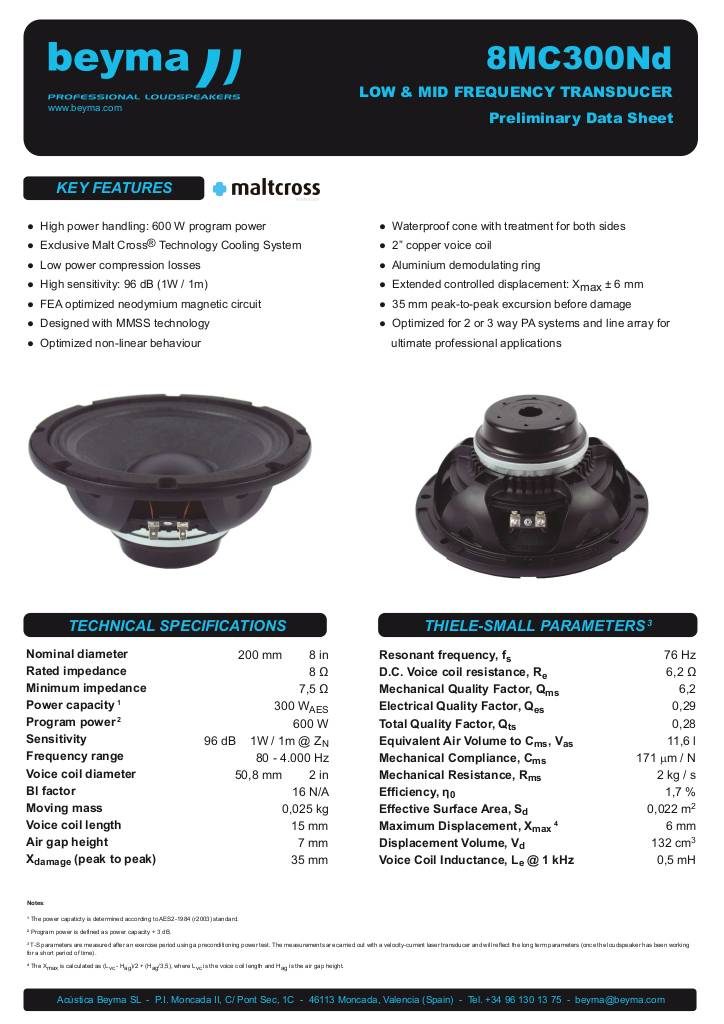

Scheda tecnica

n-20180503175005-8mc300nd.pdf
€ 215,00 Price incl. VAT
