8CX300Nd/N

Beyma
Your price:
€ 399,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Two-way
Speaker Size
200 mm
MAX Power
250 Watt
RMS Power
50 Watt
Frequency Response
60 - 20000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
2,8 Kg
Voice Coil Diameter
62 mm

Beyma 8CX300Nd/N weatherproof cone in paper and carbon fiber

Nominal diameter200 mm 8 in
Nominal impedance LF/HF8/8 ohm
Minimum impedance LF/HF5.3/5 ohm
Power capacity LF/HF250/50 W AES
Program power LF/HF500/100 w
Sensitivity LF/HF96/104 dB @ 1w @ 1m
Frequency range60-20000 Hz
Recom. crossover frequency1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF62/44 mm - 2.5/1.75 in
Dispersion (conical)70º
BL factor9.4 N/A
Moving mass0.012 kg
Winding length15 mm
Xdamage pp24 mm
LF Recone kit ref.5M8CX3ND8
HF diaphragm ref.5MSMC220PM48

THIELE SMALL PARAMETERS

Fs61 Hz
Re5.1 ohm
Qms13.29
Qes0.28
Qts0.27
Vas36.2 l
Cms529 µm / N
Rms0.37 kg/s
Efficiency %2.80
Sd0.022 m²
Xmax6 mm
Vd132 cm³
Le @1 kHz0.3 mH

CONSTRUCTIVE DETAILS

Net weight2.78 kg 6.13 lb
Total weight3 kg 6.6 lb
MagnetNeodymium

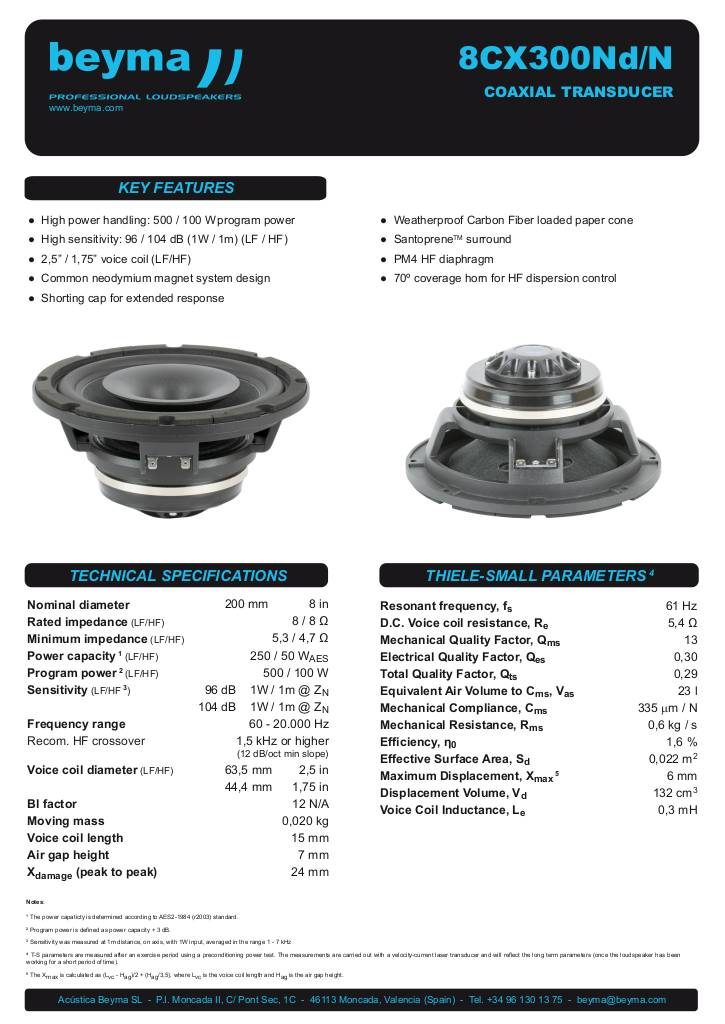

Scheda tecnica

n-20250228162816-beyma-speakers-data-sheet-coaxial-8cx300ndn.pdf
€ 399,00 Price incl. VAT
