6G40Nd 165 mm Midwoofer

Beyma
Your price:
€ 159,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
340 Watt
RMS Power
170 Watt
Frequency Response
90 - 8000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm
Weight
1,6 Kg
Voice Coil Diameter
50,8 mm

Beyma 6G40Nd technical specifications

Nominal diameter165 mm 6.5 in
Nominal impedance8 Ohm
Minimum impedance7.9 ohm
Power capacity170 W AES
Program power340 W
Sensitivity94 dB 1 W/1 m @ ZN
Frequency range90-8000 Hz
Recommended enclosure volume4 l
Voice coil diameter50.8 mm 2 in
BL factor11.2 N/A
Moving mass0.014 kg
Winding length9 mm
Air gap height7 mm
Xdamage pp20 mm

THIELE SMALL PARAMETERS

Fs85 Hz
Re6 ohm
Qms3.7
Qes0.36
Qts0.33
Vas7 l
Cms250 µm / N
Rms2 kg/s
Efficiency %1.2
Sd0.014 m²
Xmax3 mm
Vd14 cm³
Le @1 kHz0.2 mH

CONSTRUCTIVE DETAILS

Net weight1.6 kg 3.5 lb
Total weight1.8 kg 3.96 lb
MagnetNeodymium

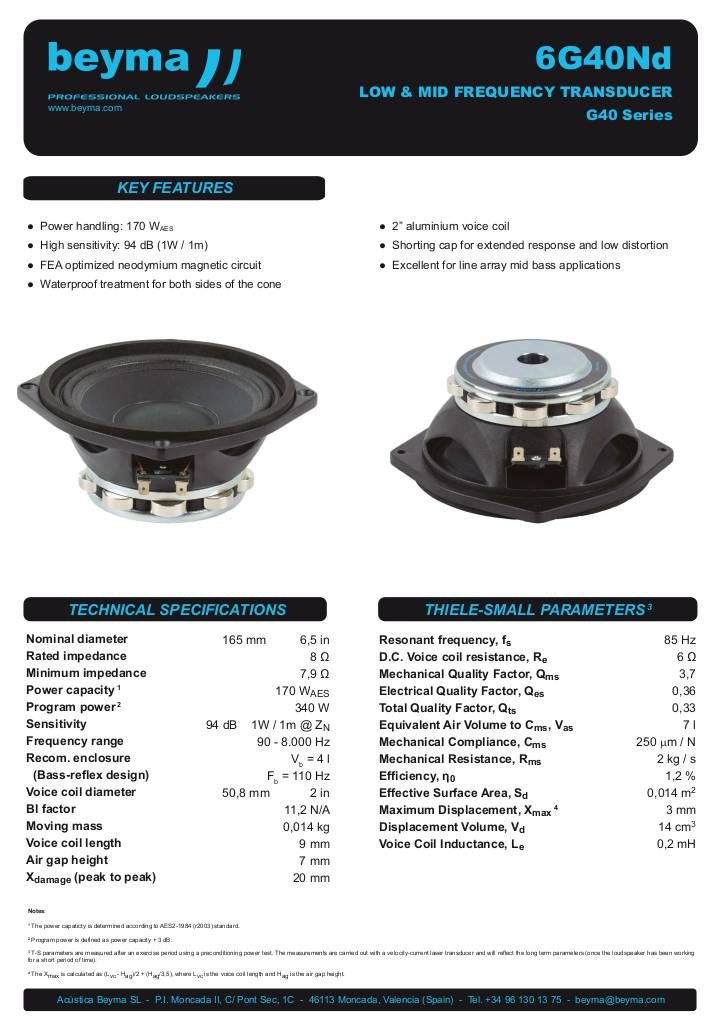

Scheda tecnica

n-20180919115546-6g40nd.pdf
