4FR40

Beyma
Your price:
€ 29,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
MAX Power
80 Watt
RMS Power
40 Watt
Frequency Response
100 - 20.000 Hertz
Sensitivity
87 dB
Impedance
8 Ohm
Weight
0,5 Kg
Installation Depth
60 mm
Voice Coil Diameter
20 mm

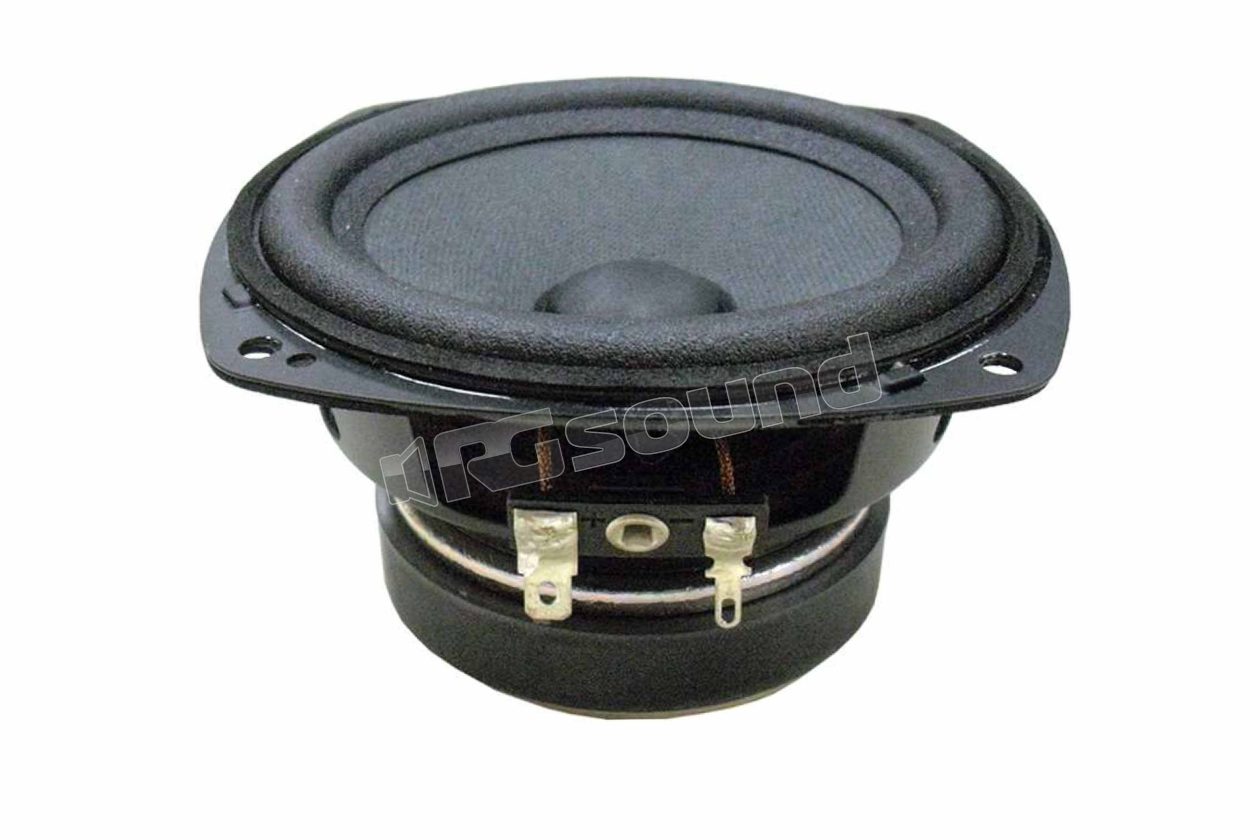

Beyma 4FR40 compact full-range speaker 100 mm (4"), 8 Ohm impedance, 80 W power

Extended frequency response and low distortion, paper cone and treated fabric edges, steel basket. Ideal for column application, portable and compact applications.

Beyma 4FR40 technical specifications

Nominal diameter 100 mm 4"

Nominal impedance 8 Ohm

Minimum impedance 7.3 ohm

Power capacity 40 W AES

Program power 80 W

Sensitivity 87 dB 1 W/1 m @ ZN

Frequency range 100-20000 Hz

Voice coil diameter 20.3 mm 0.8 in

BL factor 4.2 N/A

Moving mass 0.0044 kg

Winding length 7.7 mm

Air gap height 5 mm

Fs 92 Hz

Re 6.4 ohm

Qms 11.3

Qes 0.96

Qts 0.88

Vas 2.8 l

Cms 668 µm / N

Rms 0.23 kg/s

Efficiency %0.22

Sd 0.0055 m²

Xmax 3 mm

Vd 11 cm³

Le @ 1 kHz 0.2 mH

Net weight 0.55 kg 1.2 lb

Total weight 0.75 kg 1.65 lb

Magnet Ferrite

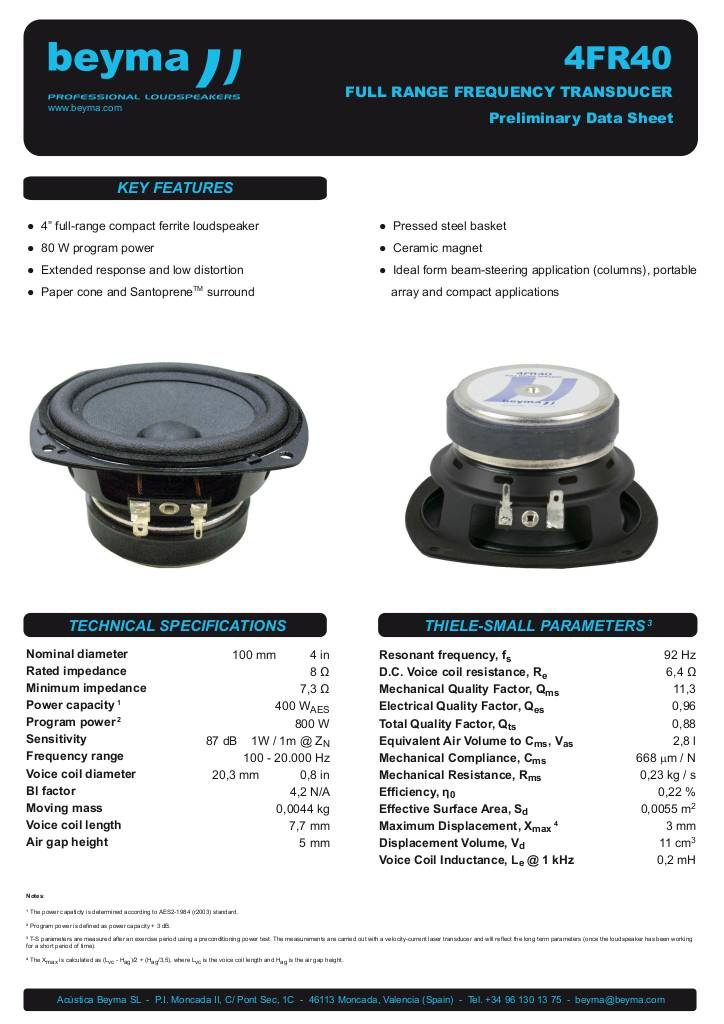

Scheda tecnica

n-20180426153456-4fr40.pdf
€ 29,00 Price incl. VAT
