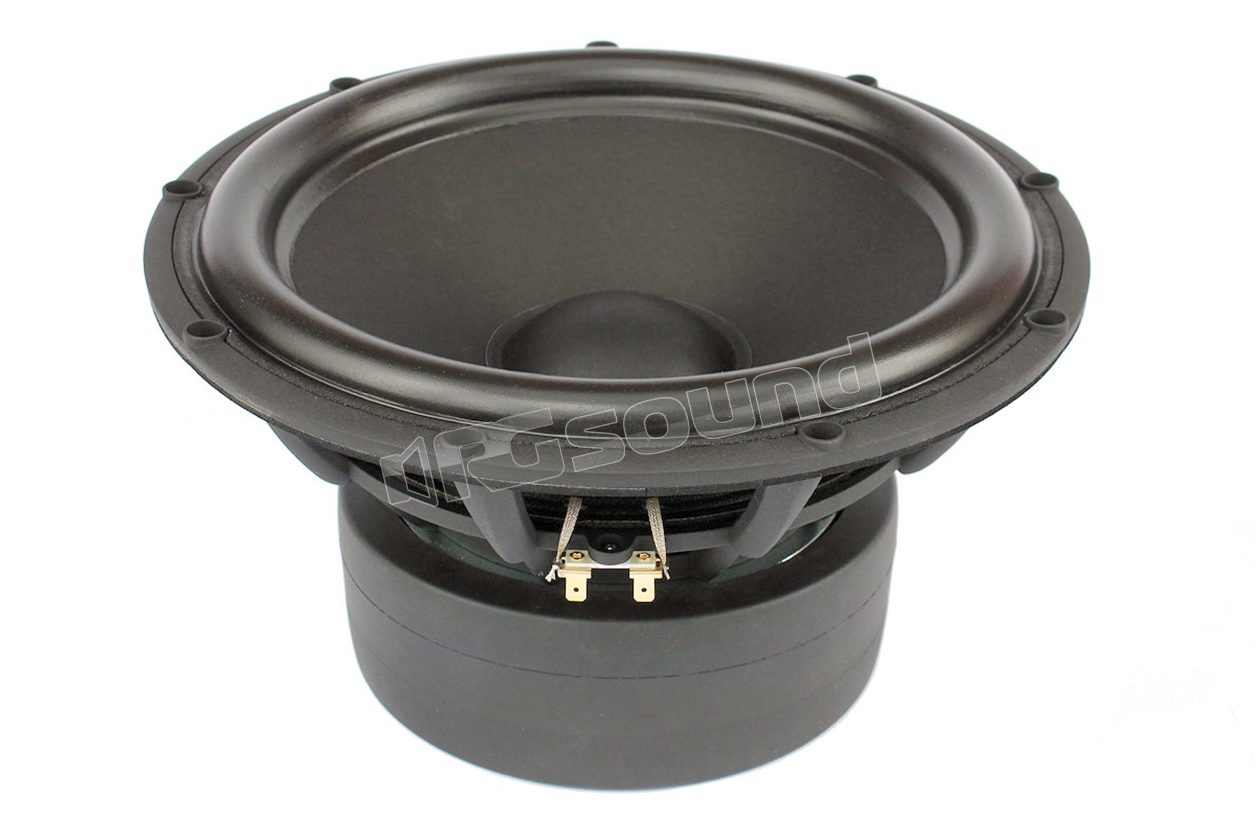

32W/4878T11 32 cm woofer, 4 Ohm impedance, dual ferrite magnet

Scan Speak
Your price:
€ 1469,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
700 Watt
RMS Power
350 Watt
Sensitivity
95 dB
Impedance
4 Ohm
Weight
9,8 Kg
Installation Depth
159 mm
Woofer Material
Cono sandwich

Scan Speak 32W/8878T11 woofer 32 cm Revelator series, 4 Ohm impedance, sandwich paper cone

- 95 dB Sensitivity @ 2.83V / 1m
- Foam coated surround
- Powerful motor with two ferrite magnets
- Sandwich paper cone
- Patented symmetrical drive motor
- 3 "V.C., ex titanium, reinforced paper

The woofers and subwoofers from Scan Speak's Revelator series feature an extremely rigid paper or aluminum cone that allows for rigid piston operation over a wide frequency range. In combination with low-loss suspensions and the patented magnetic group with Symmetrical Drive (SD-1) technology, they achieve extremely low distortion, regular frequency response and perfect transient reproduction.

Scan Speak 32W/8878T11 technical specifications

Nominal impedance 4 Ω

Sensitivity 1W/1m 95 dB

Fs 24 Hz

Nominal power 350 W

Re 3.1 Ω

Xmax± 7 mm

Bxl 14 Tm

Qms 4.25

Qes 0.22

Qts 0.21

Mms 93 gr.

Cms 0.47 mm/N

Sd 526 cm²

Vas 185 l

Le 0.36 mH

Mobile voice coil diameter 75 mm

Cone material paper

Magnet type ferrite

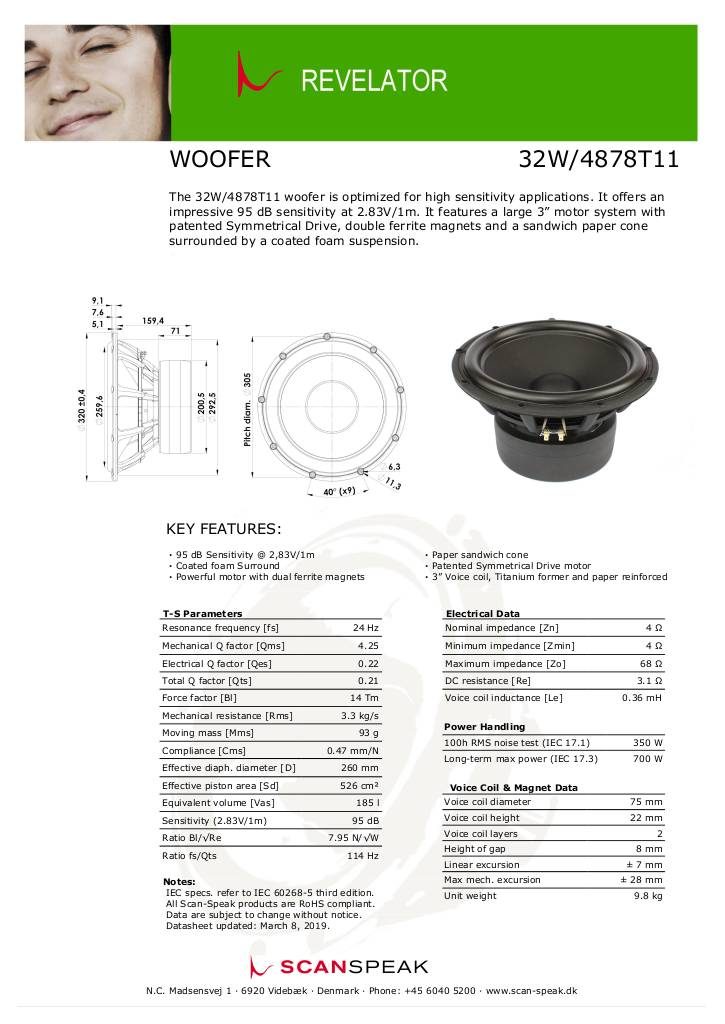

Scheda tecnica

n-20200313125231-32w-4878t11.pdf
€ 1469,00 Price incl. VAT
