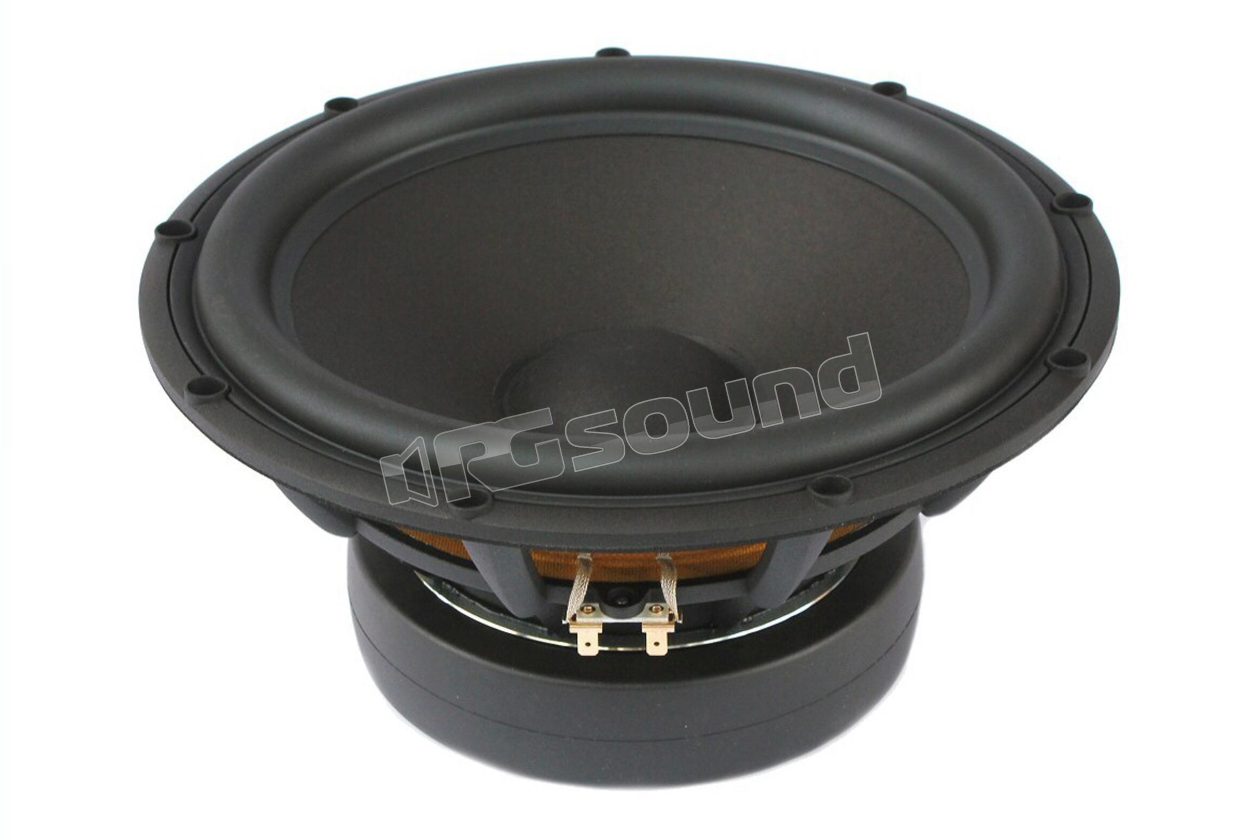

32W/4878T01 32cm woofer with sandwich cellulose cone

Scan Speak
Your price:
€ 1329,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
320 mm
MAX Power
700 Watt
RMS Power
350 Watt
Sensitivity
92 dB
Impedance
4 Ohm
Weight
7,5 Kg
Installation Depth
151,6 mm
Woofer Material
Cono sandwich

Scan Speak 32W/4878T01 Woofer 32cm (13") with cellulose sandwich cone and aluminum basket

The 32W/4878T01 is the most powerful woofer designed by Scan-speak. Its large 3" voice coil and low resonance frequency are perfect for reproducing midrange-bass frequencies at high efficiency. It is equipped with a brand new paper-sandwich cone type with a special patented foam filling technology that gives the cone very high rigidity and relatively low weight. The motor system is equipped with copper sleeves to optimize eddy current effects and minimize self-inductance.

32W/4878T01 Features

  • 32 cm woofer
  • 4 ohm, sandwich paper cone, ferrite magnet
  • Sandwich paper cone with patented foam filling
  • Patented symmetrical pull motor
  • Spider with balanced tinsel-woven conductors
  • Maximum excursion (±7.0 mm) at high efficiency
  • 3" voice coil, CU wire on titanium support
  • Rigid and robust frame in die-cast aluminum

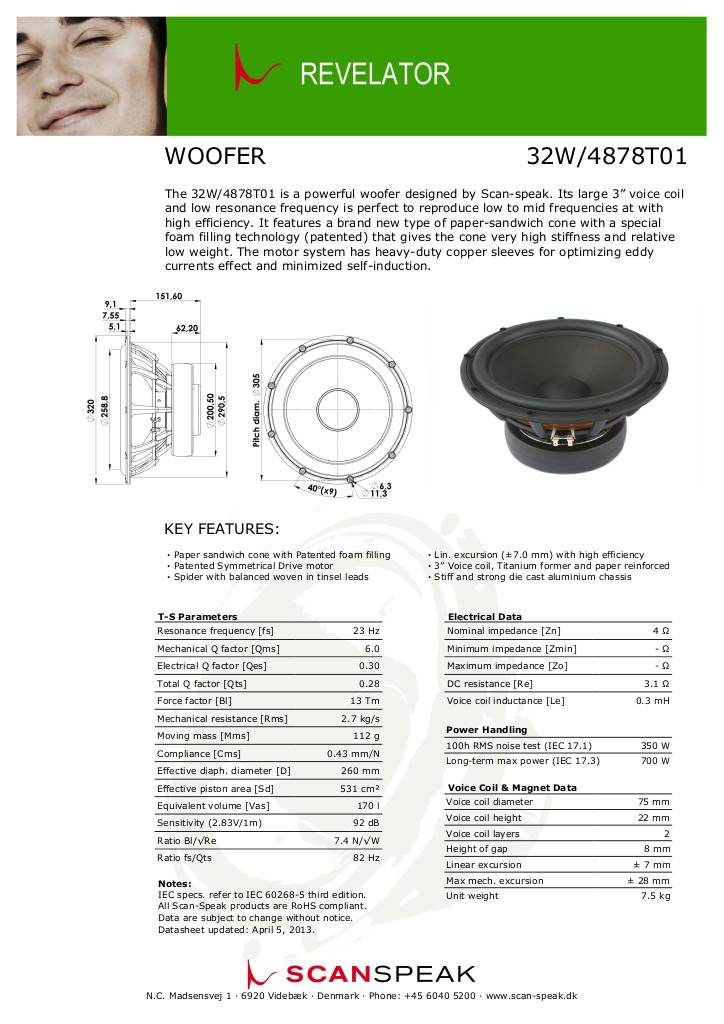

Scheda tecnica

n-20160902102901-32w-4878t01.pdf

Scan Speak 32W/4878T01 Technical Specifications

T-S Parameters

  • Resonance frequency [fs] 23 Hz
  • Mechanical Q factor [Qms] 6.0
  • Electrical Q factor [Qes] 0.30
  • Total Q factor [Qts] 0.28
  • Force factor [BI] 13 Tm
  • Mechanical resistance [Rms] 2.7 kg/s
  • Moving mass [Mms] 112 g
  • Compliance [Cms] 0.43 mm/N
  • Effective diaphragm diameter [D] 260 mm
  • Effective piston area [Sd] 526 cm2
  • Equivalent volume [Vas] 170 l
  • Sensitivity (2.83V/1m) 92 dB

Mechanical Data

  • Voice coil diameter 75 mm
  • Voice coil height 22 mm
  • Voice coil layers 2
  • Gap height 8 mm
  • Linear excursion ± 7 mm
  • Mechanized maximum excursion ± 28 mm
  • Unit weight 7.5 kg
  • Cabinet displacement volume 2.65 l

Electrical Data

  • Nominal impedance [Zn] 4Ω
  • Minimum impedance [Zmin] -Ω
  • Maximum impedance [Zo] -Ω
  • DC resistance [Re] 3.1Ω
  • Voice coil inductance [Le] 0.3 mH

Power Handling

  • RMS noise test 100h (IEC 18.4) 150 W
  • Long-term maximum power (IEC 18.2) 400 W
  • X-over: None
